$17,545.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 40 kVA / 36 kW | 208 V | 31.6″ | 39.3″ | 73.7″ | 1445 lb |
| Voltage | 40 kVA / 36 kW |
| Amp/H | 208 V |
| Length | 31.6″ |
| Width | 39.3″ |
| Height | 73.7″ |
| Weight | 1445 lb |

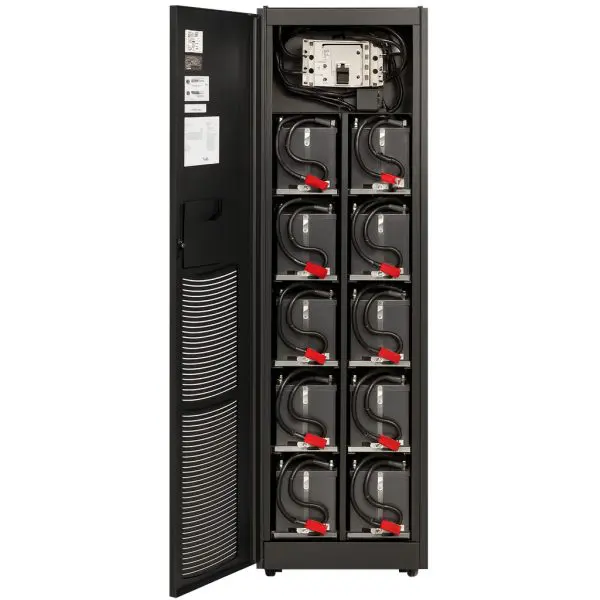

The 9390IT 40 kVA is the internal-battery configuration of the Powerware 9390 (20–40 kVA). It ships with a factory-built battery
compartment and does not use external battery cabinets. Units are fully reconditioned, cosmetically refreshed, and
tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 40 kVA / 36 kW @ 0.9 PF; transformer-free true double-conversion (VFI) with IGBT rectifier & PWM inverter; Hot Sync™ parallel-capable; variable DC bus 384/432/480 V (192–240 cells). |
| Input | Operating window (nominal ±10%/−15%): 208 V: 177–229 V • 220 V: 187–242 V • 480 V: 408–528 V (3-phase); frequency range ±5 Hz. Input PF ≥0.99 (full load); input current distortion ≤5% THDi (full load). Rectifier input current (full load + recharge): 125 A @ 208/220 V • 55 A @ 480 V. |
| Output | Regulation (10–100% load) ±1%; adjustable nominal (±3%): 208 V→202–214 V, 220 V→214–226 V, 480 V→466–494 V. Distortion ≤1.5% THD (linear) / ≤5% THD (non-linear); transient ±5% for 100% step/removal. Frequency ±0.01 Hz free-running; sync to bypass within ±0.5 Hz; slew ≤1 Hz/s. Full-load output current: 111/105 A @ 208/220 V • 48 A @ 480 V. Overload 110%/10 min, 125%/30 s, 150%/10 s. |
| Bypass | Integrated static bypass; permissible window +5%/−8% of output setting; sync bandwidth ±0.5 Hz. Bypass full-load current: 111/105 A @ 208/220 V • 48 A @ 480 V. |
| Short-Circuit / AIC | Coordinate per site one-line; breaker/withstand ratings depend on the configured lineup. |
| Battery System | Internal battery configuration only (no external IBCs): 2-string (80 batteries) or 3-string (120 batteries) VRLA; variable DC bus 384–480 V. DC current @ 2.0 V/cell: 101 A dc. |
| Controls & Comm | Front LCD/HMI with metering & event log; dual X-Slot bays (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | 9390IT internal-battery cabinet: 73.7″ H × ~39.3″ W × 31.6″ D (1872 × ~997 × 803 mm). Installed weight: ~1189 lb (2-string) / ~1445 lb (3-string). |
| Environment | Operating 0–40 °C (25 °C recommended); altitude ≤1500 m @ 40 °C without derating; RH 5–95% non-condensing; acoustics ~65 dB @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Internal Battery Strings | 2-string / 3-string | Factory-installed; 9390IT ships with batteries inside the cabinet. |
| Integrated Accessory Cabinet | IAC (B/T/D) | Wrap-around maintenance bypass / tie options (line-up sidecar). |
| Integrated Distribution Cabinet | IDC | Panelboard / subfeed distribution matched to 9390 line-ups. |
| External Battery Cabinets | — | Not applicable for 9390IT internal-battery models (no external IBCs). |
