$18,585.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 120 kVA / 108 kW | 208 V | 31.6″ | 35.6″ | 73.7″ | 1,110 lb |
| Voltage | 120 kVA / 108 kW |
| Amp/H | 208 V |
| Length | 31.6″ |
| Width | 35.6″ |
| Height | 73.7″ |
| Weight | 1,110 lb |

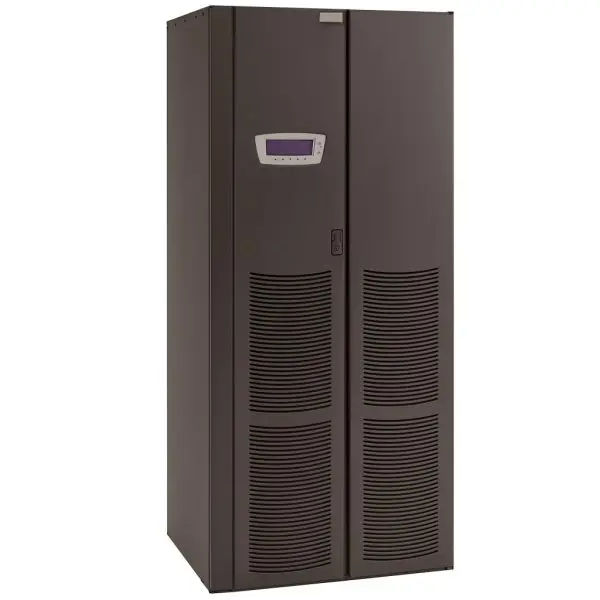

The Powerware 9390 120 kVA (208 V) delivers transformer-free, three-phase on-line protection with tight regulation and robust overload capability.
Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 120 kVA / 108 kW; transformer-free true double-conversion (VFI) with IGBT rectifier & PWM inverter; Hot Sync™ parallel-capable; variable DC bus 384/432/480 V (192–240 cells). |
| Input | Operating input window (3-phase): 208 V → 177–229 V • 220 V → 187–242 V (±10%/−15%); frequency range ±5 Hz of nominal (50/60 Hz). Rectifier current (full load + recharge): 360 A @ 208/220 V. Input PF ≥0.99 (full load); input current distortion ≤5% THDi (full load). |
| Output | Regulation (10–100% load) ±1%; adjustable nominal (±3%): 208 V → 202–214 V, 220 V → 214–226 V. Voltage distortion ≤1.5% THD (linear) / ≤5% THD (non-linear); transient ±5% for 100% step/removal. Frequency ±0.01 Hz free-running; sync to bypass within ±0.5 Hz; slew ≤1 Hz/s. Full-load output current: 333/315 A (208/220 V). Overload: 110%/10 min, 125%/30 s, 150%/10 s. |
| Bypass | Integrated static bypass; permissible window +5% / −8% of output setting; sync bandwidth ±0.5 Hz. Bypass full-load current: 333/315 A (208/220 V). |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings per site one-line and configured lineup. |
| Battery System | Variable DC bus (UPS terminals): 384–480 Vdc (typical 192–240 cells). DC current @ 2.0 V/cell: 302 A dc (120 kVA). External Integrated Battery Cabinets (IBC-S / IBC-L) required on this frame. |
| Controls & Comm | Front LCD/HMI with metering & event log; X-Slot options (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | 100–160 kVA frame (UPS only): 73.7″ H × 35.6″ W × 31.6″ D (1873 × 904 × 804 mm). Installed weight (9390-120/120 @ 208/220 V): ~1110 lb; shipping weight ~1170 lb. Required clearances: 36″ front, 18″ top. |
| Environment | Operating 0–40 °C (25 °C recommended); altitude ≤1500 m @ 40 °C without derating; RH 5–95% non-condensing; acoustics ~65 dB @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinet | IBC-S / IBC-L | External runtime cabinets for 9390 100–160 kVA frames; variable 384–480 Vdc bus. |
| Integrated Accessory Cabinet | IAC-B / IAC-T / IAC-D | Wrap-around maintenance bypass / tie options (matching sidecar). |
| Integrated Distribution Cabinet | IDC (100–160 kVA) | Panelboard / subfeed distribution matched to 9390 line-ups. |
