$19,257.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 40 kVA | 47.7" | 31.5" | 34" | 1,278 lb |
| Voltage | 208/120 |
| Amp/H | 40 kVA |
| Length | 47.7" |
| Width | 31.5" |
| Height | 34" |
| Weight | 1,278 lb |

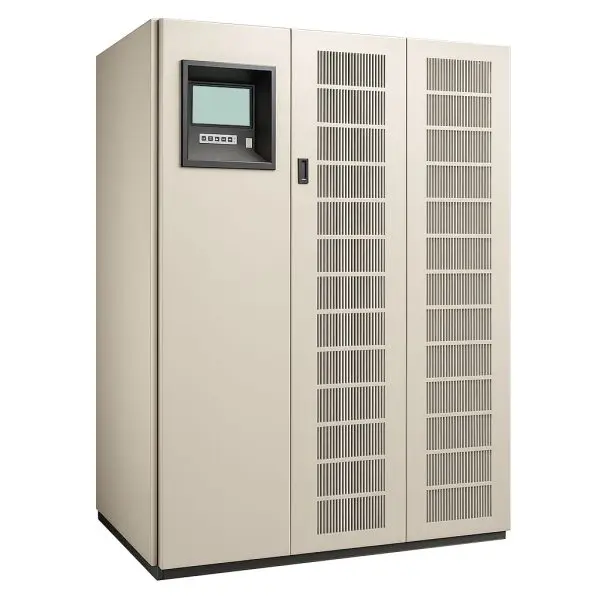

The Eaton Powerware 9315-500 is a legacy, heavy-duty on-line UPS delivering 500 kVA protection for data centers and industrial loads.
Our refurbished units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 500 kVA on-line, true double-conversion; continuous-duty solid-state UPS; sine-wave output |
| Input | 480 VAC nominal, operates 408–528 VAC; frequency ±3 Hz of nominal (60 Hz); minimum input PF 0.85; rectifier power walk-in adjustable 3–60 s; input current THD ≈10% at full load with input filter option |
| Output | 480 VAC three-phase; voltage regulation ±1% (10–100% load); frequency regulation ±0.01 Hz free-running; ≤3% THD (linear), ≤5% typical at 100% non-linear (3:1 crest); overload 125% for 10 min / 150% for 10 s; 300% peak for 10 cycles without bypass |
| Bypass | Static bypass; sync window ±0.5 Hz when within bypass voltage limits (+5%/−8% of output setting); maintenance bypass cabinet available for wrap-around service transfer |
| Short-Circuit / AIC | Site-specific; coordinate with upstream/downstream protective devices and one-line study |
| Battery System | Sealed lead-acid (line-up-and-match); nominal 480 Vdc string (240 cells) for 9315-500; float 2.25 V/cell; equalize 2.40 V/cell; charge current limit 25% of full rating; external battery cabinets/plant sized per runtime |
| Controls & Comm | Front LCD monitor panel with metering/statistics/alarms and mimic diagram; control panel behind right door; X-Slot communication bay (SNMP/HTTP/Modbus options); serial ports; summary alarm contacts; building alarm inputs |
| Physical | 31.5 in (800 mm) wide, 34 in (864 mm) high, and 47.7 (1211 mm) deep |
| Environment | Operating 0–40 °C (25 °C recommended); storage −20 to +70 °C; ≤95% RH non-condensing; altitude to 1500 m (5000 ft) at 40 °C without derating; noise ≈75 dBA at 1 m; ESD immunity to 25 kV |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB / site-specific | Wrap-around service bypass for maintenance |
| Input/Output Transformers | 480/480, 208/480, 600/480; 480/208 auto | Isolation/voltage adaption; LV PDM requires 480→208 V transformer |
| Battery Plant | Line-up-and-match / site-engineered | 240-cell strings typical for 9315-500; runtime scales with AH and cabinet count |
