$17,357.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 40 kVA | 36" | 24.02" | 80.98" | 1,278 lb |
| Voltage | 208/120 |
| Amp/H | 40 kVA |
| Length | 36" |
| Width | 24.02" |
| Height | 80.98" |
| Weight | 1,278 lb |

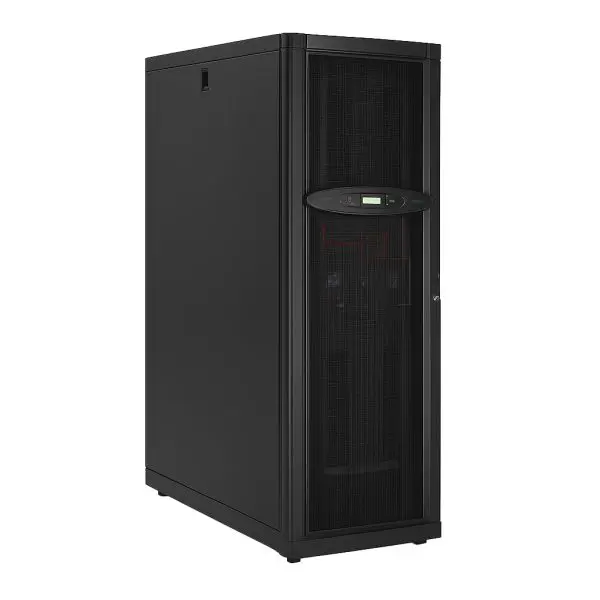

Built to simplify distribution for medium/large IT rooms, this InfraStruXure PDU steps 480 V down to 208/120 V and integrates a maintenance bypass for serviceability. Our refurbished units are reconditioned, cosmetically refreshed to factory colors, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Architecture | 40 kW configurable distribution PDU with integrated 480→208/120 V isolation transformer; floor-standing cabinet |
| Input | 480 V 3-phase, 60 Hz nominal |
| Output | 208Y/120 V 3-phase distribution via branch circuits; receptacle mix and breaker layout vary by configuration |
| Bypass | Integrated maintenance bypass panel (MBP) for service without downtime |
| Monitoring & Alarms | Local display and web-based monitoring options (model family feature) |
| Physical | ≈ 80.98″ H × 24.02″ W × 36.0″ D; ~ 1,278 lb (≈ 580 kg); color: black |
| Environment | Indoor, data-center use; see OEM docs for detailed temperature/humidity limits |
| Standards | UL / cUL compliance (per model family) |
| Accessory | Model | Notes |
|---|---|---|
| Cable Extender Kit | PD Cable Extender | Installation accessory for InfraStruXure PD40-series PDUs |
| Branch Circuit Options | — | Configured to order (mix of receptacles and/or hard-wired sub-feeds) |
| Monitoring / Comms | — | Local & network monitoring available on this model family |
