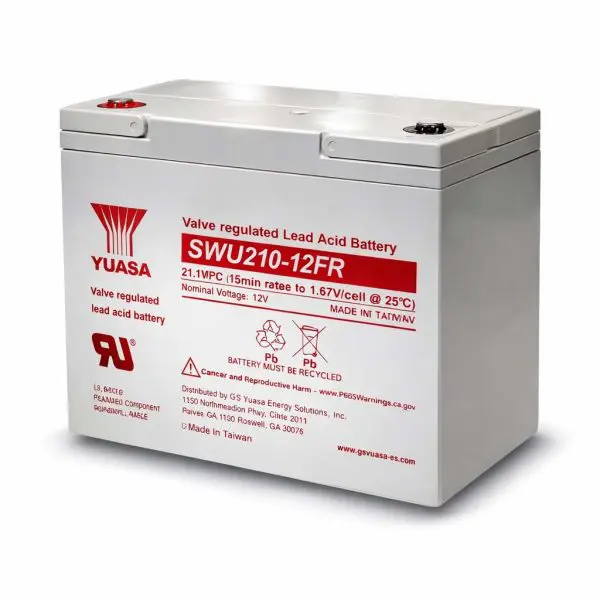

12 Volt – 60 Amp Hour YUASA Battery

12V 60Ah High-Temperature VRLA AGM Battery

The Yuasa SWU210-12FR is a compact 12-volt, valve-regulated lead-acid (VRLA) battery that uses
absorbed glass mat (AGM) technology and Yuasa’s high-temperature HT X Alloy™ to deliver long life in demanding
standby applications. With 60 Ah at the 20-hour rate and up to 210 W/cell at 15 minutes (1.67Vpc, 25°C),
it provides reliable ride-through and backup power for smaller UPS systems, datacenters, switchgear, and control panels
where rack space is at a premium.

Designed for a 10-year service life, the SWU210-12FR features a flame-arresting one-way vent, epoxy-sealed
terminals, and a flame-retardant UL94V-0 ABS case to enhance safety in high-density battery cabinets.
The maintenance-free, non-spillable AGM construction meets DOT/IATA requirements for non-hazardous transport,
while top-mounted M6 terminals simplify cabinet and rack installation. Certified to ISO 9001, ISO 14001,
and IEC 60896-21 and recognized by UL, this battery is ready for modern enterprise and industrial backup systems.

Key Features

• 12V, 60Ah (20-hr) VRLA AGM battery optimized for high-temperature standby use.
• 210 W/cell @ 15 min (1.67Vpc, 25°C) for dependable short-duration UPS support.
• 10-year design life with low monthly self-discharge (~3% at 25°C).
• Flame-retardant UL94V-0 ABS case, flame-arresting one-way vent, and epoxy-sealed terminals.
• Maintenance-free, non-spillable AGM design; DOT/IATA compliant for transportation.
• Top M6 terminals (recommended torque 4.9 Nm / 43 in-lb) for secure, repeatable connections.
• Wide operating temperature range: discharge from −20°C to 60°C (−4°F to 140°F); operating range −40°C to 65°C (−40°F to 149°F).
• Certified to ISO 9001, ISO 14001, IEC 60896-21; UL recognized component (U1989); TAA compliant and DRC conflict-free.

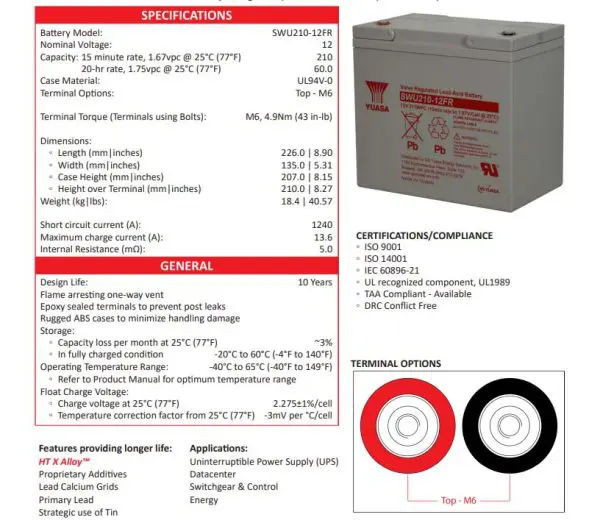

Quick Specs
