$19,657.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 208/120 or 220/127 VAC | 39.5″ | 31.8″ | 78.7″ | 2,300 lbs |
| Voltage | 208/120 |
| Amp/H | 208/120 or 220/127 VAC |
| Length | 39.5″ |
| Width | 31.8″ |
| Height | 78.7″ |
| Weight | 2,300 lbs |

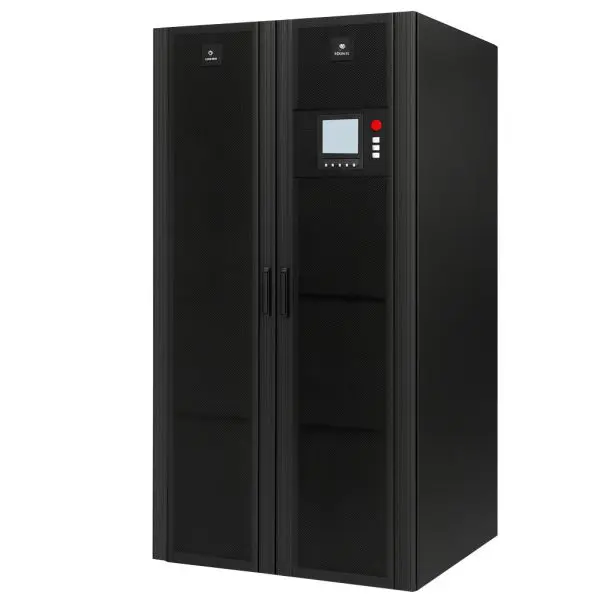

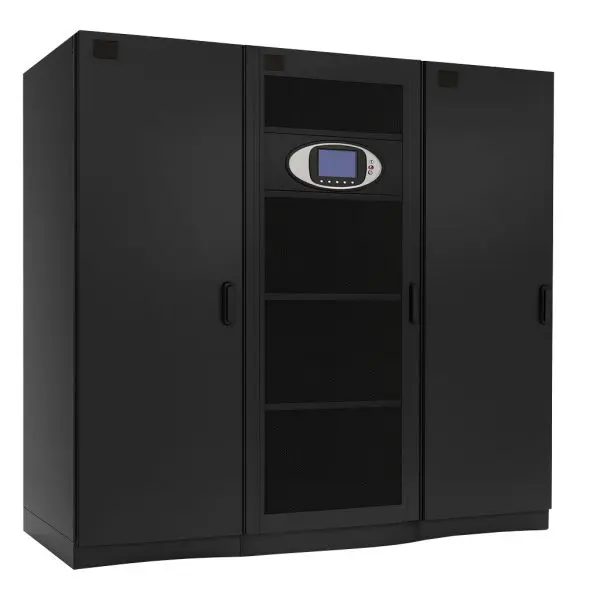

Liebert APM is a modular, row-based on-line UPS that scales capacity with hot-swappable power modules while
maintaining VFI protection. Our refurbished units are fully reconditioned, cosmetically refreshed, and
tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | Modular, transformer-free, true double-conversion (VFI); scalable power modules (typ. 15 kW, 18/50 kW by frame); unity output power factor (1.0); efficiency up to ~96–96.5% (model/frame dependent). |
| Input | 208/120 or 220/127 VAC (NA) • 380/400/415 VAC (Global); 3-phase, 4-wire + G; Voltage window (208 V models) +15% / −20%; frequency 40–70 Hz; input PF ≈0.99 (full load); reflected input current distortion ≤3% THDi (full load, per spec). |
| Output | 3-phase; NA frames: 208/120 or 220/127 VAC • Global frames: 380/400/415 VAC; voltage regulation ~±1% (static); VTHD ≤2% (linear) / ≤5% (non-linear); 50/60 Hz (bypass-sync) or ±0.1% free-running; no-derate leading/lagging PF (unity capable). |
| Bypass | Integrated static bypass; optional I/O & wrap-around service bypass via APM Bypass Distribution Cabinet (BDC) or site MBB. |
| Short-Circuit / AIC | Site-specific; coordinate with upstream/downstream protective devices and one-line study. |
| Battery System | Internal batteries on select 45 kW frames (factory options); external VRLA battery cabinets for extended runtime; integrated charger; user-initiated battery test; runtime scales with cabinet count and cell configuration. |
| Controls & Comm | Front LCD/HMI; Intellislot/Unity network options (SNMP/web), RS-485/Modbus, and dry-contact/relay I/O; REPO input; local/event logs. |
| Physical | Frame-dependent; typical 45 kW cabinet 31.8″ W × 39.5″ D × 78.7″ H (800 × 1000 × 2000 mm); front-service access; top/bottom cable entry. |
| Environment | Operating 32–104 °F (0–40 °C); ≤95% RH non-condensing; altitude to ~3,300 ft (1000 m) without derating; acoustics ≈57 dBA (45 kW) / 60 dBA (90 kW) @1 m (typical). |
| Accessory | Model | Notes |
|---|---|---|
| Internal Battery (45 kW frame) | Factory options | Integrated strings; internal runtime on select 15–45 kW builds |
| External Battery Cabinet | EBC (various) | Scales runtime by cabinet count and cell configuration |
| I/O & Maintenance Bypass | APM BDC / site MBB | Wrap-around service bypass and distribution options |
| Network / Interface Cards | SNMP, RS-485/Modbus, Relay | Remote monitoring and controls (availability varies by frame) |
