$19,945.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 70 kW / 70 kVA | 208 VAC | 35.5″ | 48.0″ | 81.5″ | 2,748 lb |
| Voltage | 70 kW / 70 kVA |
| Amp/H | 208 VAC |
| Length | 35.5″ |
| Width | 48.0″ |
| Height | 81.5″ |
| Weight | 2,748 lb |

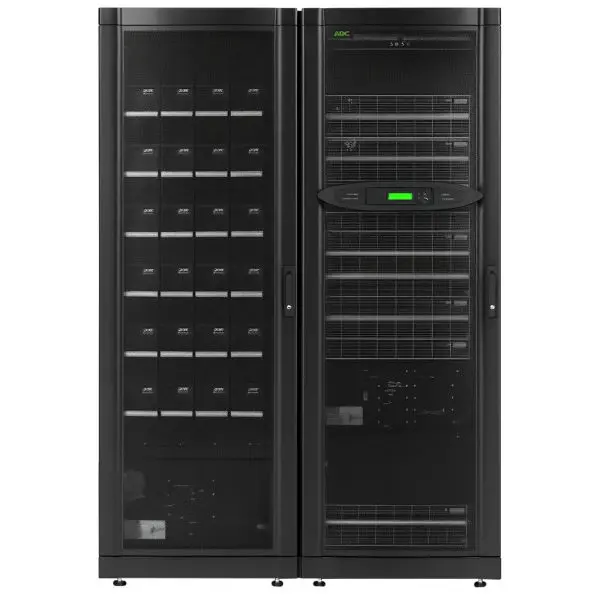

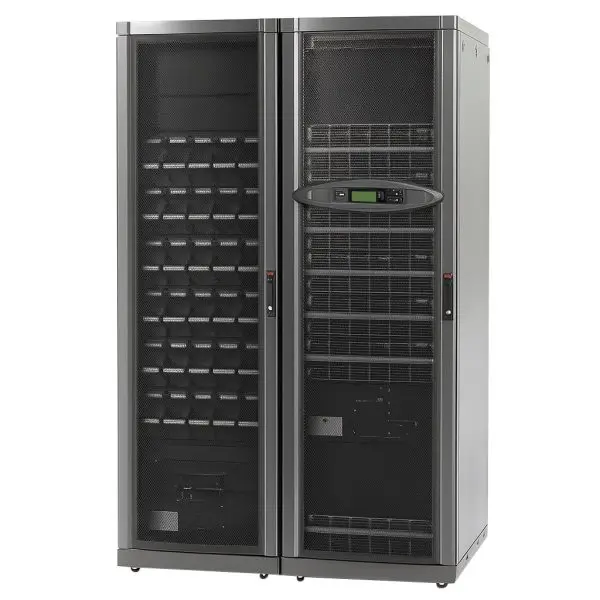

Symmetra PX 70 kW delivers modular, service-friendly three-phase protection and can be field-scaled to 80 kW (N+1) using
hot-swappable 10 kW power modules. Each unit is fully reconditioned, cosmetically refreshed, and
tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 70 kW / 70 kVA; true double-conversion on-line; scalable with 10 kW power modules to 80 kW (N+1). |
| Input | 208 VAC 3-phase, 5-wire (3P+N+G); voltage window ~177–240 VAC; frequency 40–70 Hz; input power factor ≈0.99 (full load); input current distortion ≤5% THDi (typ.). |
| Output | 120/208 VAC, 3-phase; static regulation ±1% (balanced); dynamic ±5% at 100% step; VTHD <2% (linear) / <6% (non-linear); nominal output current ≈194 A at 70 kW (ref.), ≈222 A at 80 kW build. |
| Bypass | Integrated static bypass; wrap-around maintenance bypass via sidecar or site MBB panel. |
| Short-Circuit / AIC | 208 V PX family short-time withstand up to ~30 kA (coordination per site one-line). |
| Battery System | Premium XR external battery enclosure(s); hot-swappable PX battery modules SYBTU1-PLP; split DC bus ±192 V (≈384 V nominal); typical recharge ≈2 h (configuration-dependent). |
| Controls & Comm | LCD/HMI with metering & event log; IntelliSlot network cards (SNMP/web), RS-485/Modbus, and dry-contact/relay options; EPO/REPO. |
| Physical | Line-up with Premium XR: 81.5″ H × 48.0″ W × 35.5″ D (2070 × 1219 × 902 mm); front-service access; top/bottom cable entry. |
| Environment | Indoor, 0–40 °C; ≤95% RH non-condensing; install per OEM clearances/ventilation; altitude to ~1000 m without derating (typ.). |
| Accessory | Model | Notes |
|---|---|---|
| 10 kW Power Module | SYPM10KF / SYPM10KF2 | Hot-swappable PX power module (KF2 = high-efficiency successor) |
| Battery Module | SYBTU1-PLP | PX hot-swap battery unit used in XR enclosures |
| XR Battery Enclosure | SYCFXR9 (family) | External runtime expansion (rows of SYBTU1-PLP modules) |
| Maintenance Bypass | MBB / BDC sidecar | Wrap-around service bypass & distribution options |
