$22,950.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 60kVA / 48kW | 208V | 42.1โณ | 23.6โณ | 78.3โณ | 2,100 lb |
| Voltage | 60kVA / 48kW |
| Amp/H | 208V |
| Length | 42.1โณ |
| Width | 23.6โณ |
| Height | 78.3โณ |
| Weight | 2,100 lb |

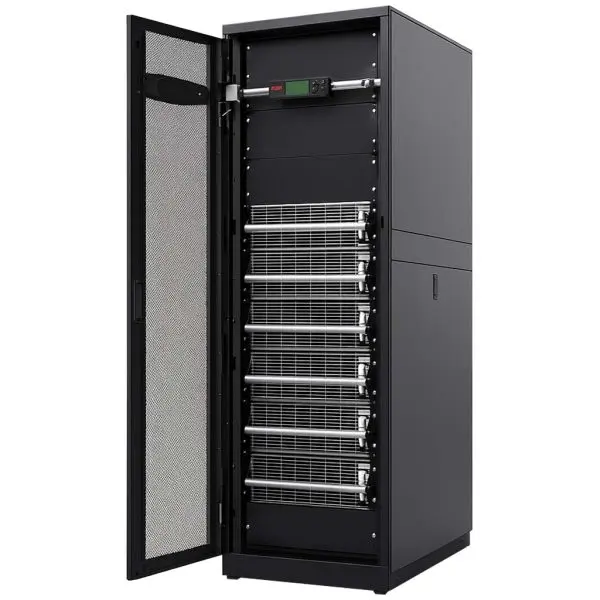

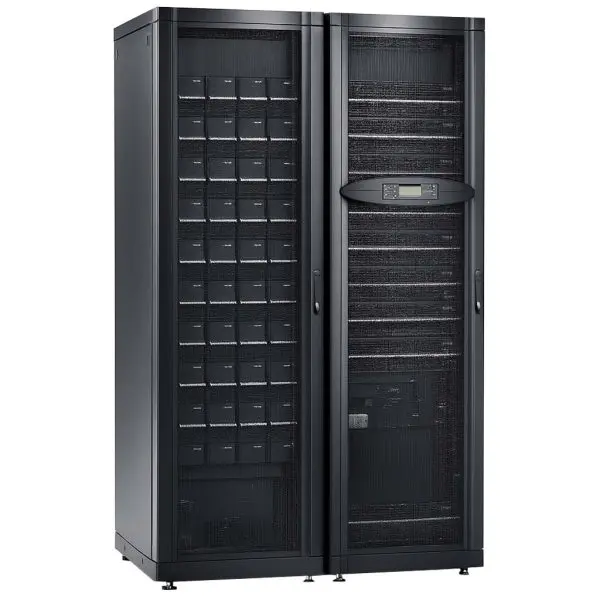

The Symmetra PX 60kVA delivers high-density, scalable three-phase power protection for large data centers and enterprise facilities. Our refurbished units are fully reconditioned to OEM standards, cosmetically refreshed, and tested in the USA to ensure reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 60kVA / 48kW; double-conversion online; pure sine-wave output |
| Input | 208V 3-phase; 40โ70Hz; PF>0.99; THDi <5%; voltage window 160โ280V |
| Output | 208/120V 3-phase; 50/60Hz; regulation ยฑ2%; THD <3%; overload 10min @125%, 60s @150% |
| Bypass | Integrated static bypass; programmable transfer thresholds |
| Short-Circuit / AIC | 65kA rating |
| Battery System | Hot-swappable modular battery units; runtime scalable with SYBTU and external frames |
| Controls & Comm | LCD interface; integrated network management; SNMP/Modbus support |
| Physical | 1990H ร 600W ร 1070Dmm (78.3โณ ร 23.6โณ ร 42.1โณ); ~952kg (2,100lb); IP20 |
| Environment | Operating 0โ40ยฐC, 0โ95% RH (non-condensing) |
| Accessory | Model | Notes |
|---|---|---|
| Battery Cabinet โ Standard | SYBTU | Hot-swappable battery strings; runtime scales with cabinet count |
| Extended Battery Frame | SYCFXR9 | Supports additional SYBTU strings for extended runtime |
