$15,345.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 20kVA / 16kW | 40kA | 31.5โณ | 23.6โณ | 51.2โณ | 900 lb |
| Voltage | 20kVA / 16kW |
| Amp/H | 40kA |
| Length | 31.5โณ |
| Width | 23.6โณ |
| Height | 51.2โณ |
| Weight | 900 lb |

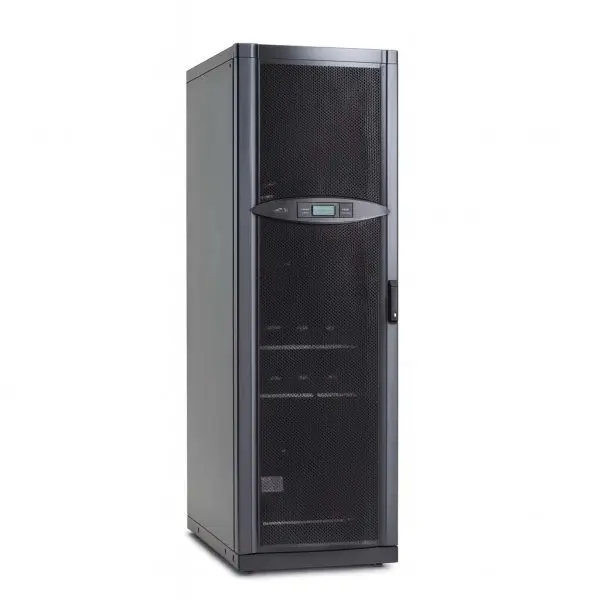

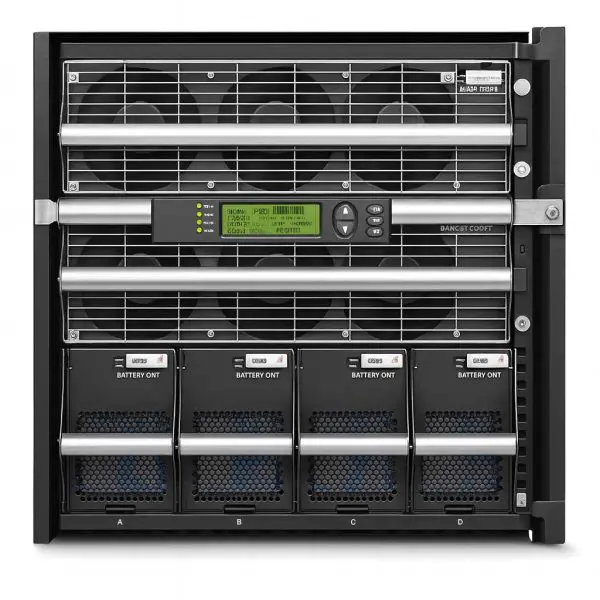

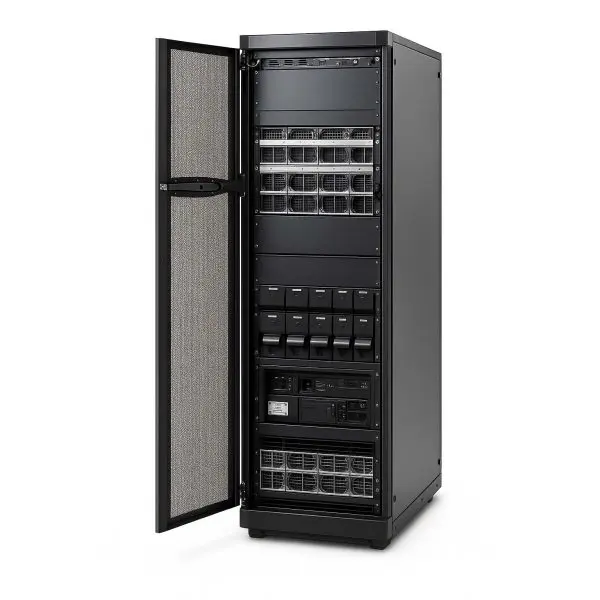

Engineered for high-availability environments, the Symmetra PX 20kVA provides redundant, scalable three-phase protection for server rooms and mid-sized data centers. Each refurbished unit is fully reconditioned, cosmetically refreshed to factory standards, and tested in the USA for dependable service.
| Category | Detail |
|---|---|
| Power & Topology | 20kVA / 16kW; double-conversion online; pure sine-wave output |
| Input | 208V 3-phase; 40โ70Hz; PF>0.99; THDi <5%; voltage window 160โ280V |
| Output | 208/120V 3-phase; 50/60Hz; regulation ยฑ2%; THD <3%; overload 10min @125%, 60s @150% |
| Bypass | Integrated static bypass; programmable transfer limits |
| Short-Circuit / AIC | 40kA rating |
| Battery System | Modular hot-swappable battery modules; runtime scalable with additional cabinets or frames |
| Controls & Comm | LCD interface; network management card; remote monitoring and management support |
| Physical | 1300H ร 600W ร 800Dmm (51.2โณ ร 23.6โณ ร 31.5โณ); ~410kg (900lb); IP20 |
| Environment | Operating 0โ40ยฐC, 0โ95% RH (non-condensing) |
| Accessory | Model | Notes |
|---|---|---|
| Battery Cabinet โ Standard | SYBT4 | Holds modular hot-swappable battery units; runtime scales with cabinet count |
| Extended Battery Frame | SYCFXR4 | Supports additional SYBT4 strings for extended runtime |
