$135.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 1200 VAC | 300 A | N/A | N/A | N/A | 1LB – 1.2LB |
| Voltage | 1200 VAC |
| Amp/H | 300 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 1LB – 1.2LB |

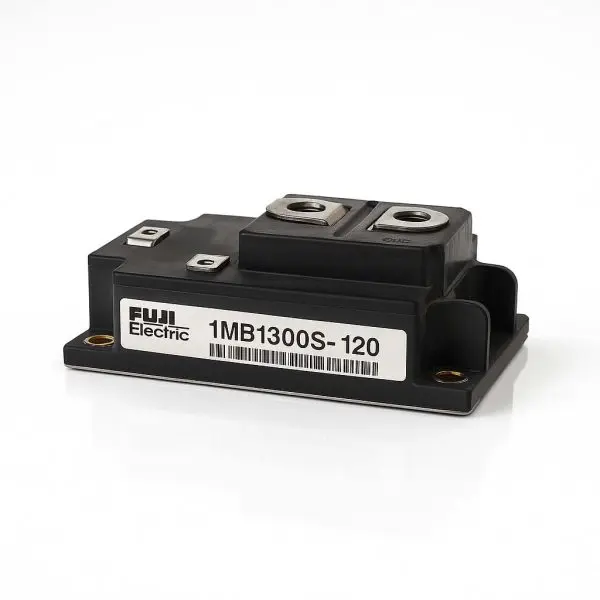

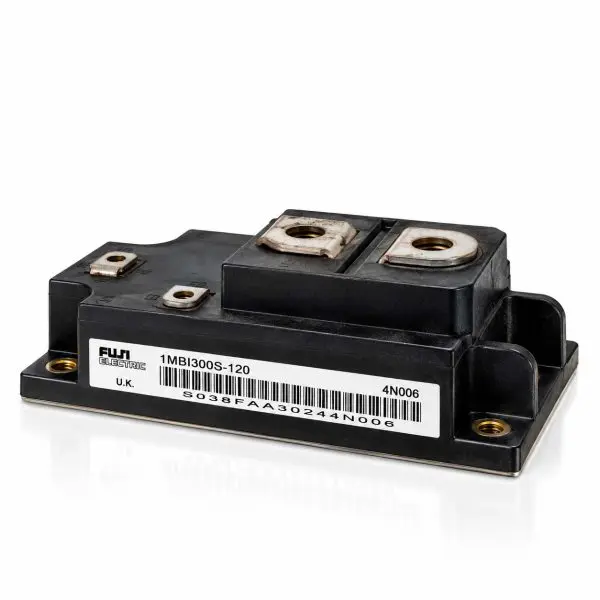

Robust 1200 V, 300 A single IGBT module widely used in UPS inverter/rectifier stages, motor drives, and other high-reliability power converters. Low switching and conduction losses, fast free-wheel diode, and an isolated baseplate simplify thermal and EMC design for clean power delivery.
| Parameter | Value |
| Manufacturer | Fuji Electric |
| Part Number | 1MBI300S-120 |
| Device Type | Single IGBT module (1-pack) with antiparallel fast diode |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Collector Current (IC) | 300 A (module rating) |
| Power Dissipation (Ptot) | See datasheet (application-dependent) |
| VCE(sat) (typ.) | ≈ 2.0–2.2 V @ VGE=15 V, IC=300 A (typ.) |
| Input Capacitance (Cies) | See datasheet |
| NTC Thermistor | Not specified for this S-pack |
| Operating Junction Range | −40 °C to +150 °C (TJ, typical for series) |
| Mounting / Baseplate | Chassis-mount, isolated baseplate |
| Package / Footprint | Fuji S-series single-pack module |
| Configuration | Single (1-pack) |
| Module | Applications | Notes |
| 1MBI300S-120 | UPS inverter/rectifier bridges; high-power motor drives; energy-storage choppers; welding/laser power | Confirm gate/aux pinout and footprint vs. OEM drawings; maintain proper isolation and heatsink flatness. |
