| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 800 V | N/A | 300 A | N/A | N/A | N/A | 405 g |
| Voltage | 800 V |
| WPC | N/A |
| Amp/H | 300 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 405 g |

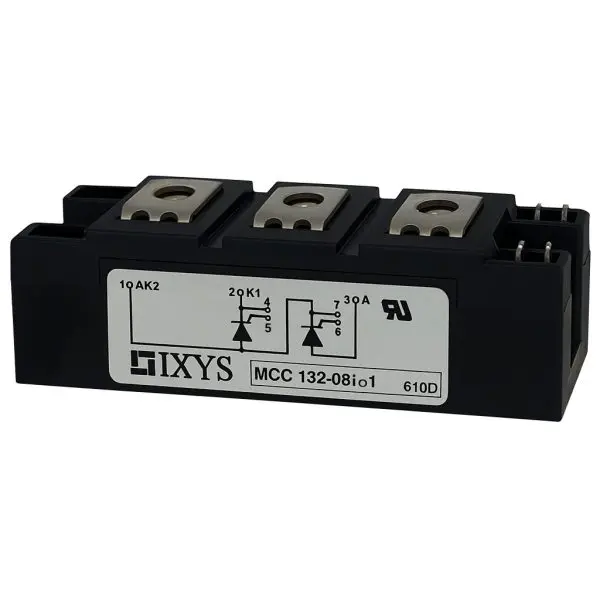

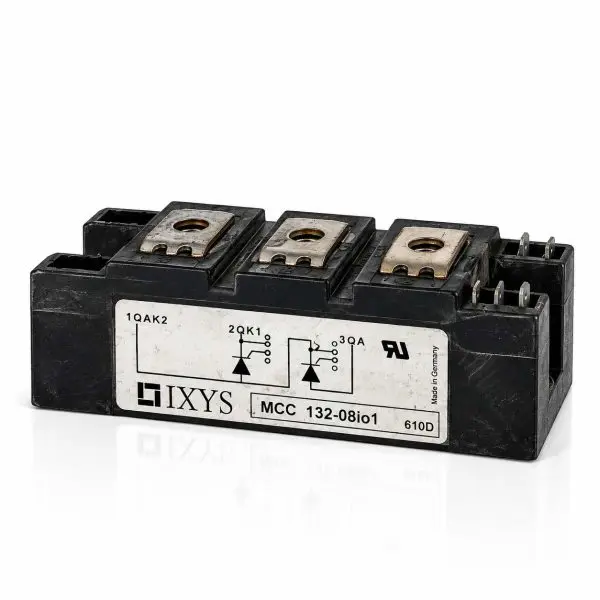

The IXYS / Littelfuse MCC132-08io1 is a high-current 800 V, 130 A dual thyristor (SCR) power module designed for industrial phase-control and power-conversion applications. It combines two phase-control thyristors in a rugged, electrically isolated Y4-M6 package suitable for controlled rectifiers, AC regulators, motor soft starters, industrial heating controls, and UPS input stages.
With an RMS on-state current rating of approximately 300 A, surge-current capability up to 4.75 kA, and 3.6 kV RMS isolation between the power circuit and baseplate, the MCC132-08io1 is designed for reliable operation in demanding industrial power systems. Its compact screw-terminal construction also makes it well suited for servicing legacy equipment where maintaining the original electrical and mechanical configuration is important.
| Parameter | Value |
| Manufacturer | IXYS / Littelfuse |
| Part Number | MCC132-08io1 |
| Device Type | Dual phase-control thyristor / SCR module |
| Repetitive Peak Off-State Voltage (VDRM) | 800 V |
| Repetitive Peak Reverse Voltage (VRRM) | 800 V |
| Average On-State Current (ITAV) | 130 A @ TC = 85 °C |
| RMS On-State Current (ITRMS) | 300 A |
| Surge On-State Current (ITSM) | Up to approximately 4.75 kA (10 ms) |
| Critical dv/dt | Approximately 1000 V/µs |
| Threshold Voltage (VT0) | Approximately 0.8 V |
| Slope Resistance (rT) | Approximately 1.5 mΩ |
| Gate Trigger Current (IGT) | Maximum approximately 150 mA |
| Holding Current (IH) | Maximum approximately 200 mA |
| Thermal Resistance RthJC | Approximately 0.23 K/W per thyristor |
| Thermal Resistance RthCH | Approximately 0.10 K/W |
| Isolation Test Voltage | 3.6 kV RMS / 1 minute |
| Maximum Junction Temperature | 125 °C |
| Package / Footprint | Y4-M6 screw-terminal module with isolated baseplate |
| Approximate Weight | 125 g |
| Configuration | Dual phase-control SCR / thyristor module |
| Condition | Reclaimed Part |
| Module | Representative Applications | Replacement Notes |
| MCC132-08io1 | UPS input bridges; motor soft starters; controlled rectifiers; AC voltage regulators; industrial heating controls; industrial power supplies | Confirm complete part number, voltage class, gate characteristics, circuit configuration, terminal arrangement, mounting dimensions and cooling requirements before substitution. |
