$16,785.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 20 kVA / 20 kW | 208 VAC | 26.7" | 16.9" | 18.9" | 396.6 lb |
| Voltage | 20 kVA / 20 kW |
| Amp/H | 208 VAC |
| Length | 26.7" |
| Width | 16.9" |
| Height | 18.9" |
| Weight | 396.6 lb |

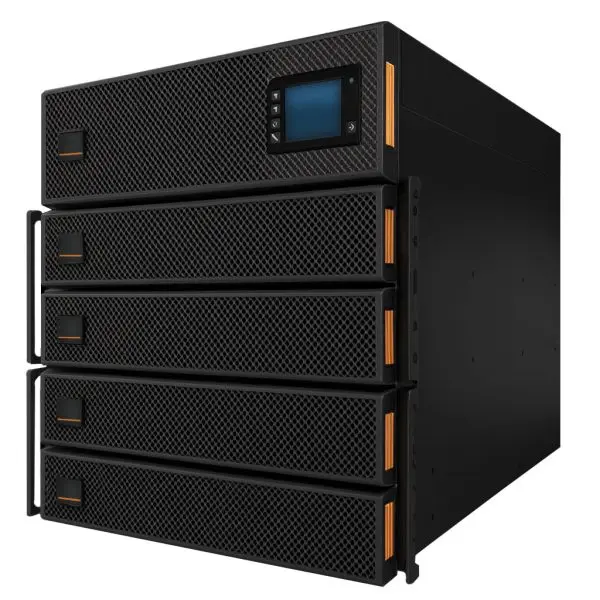

The Vertiv Liebert GXT5 20 kVA / 20 kW is a compact on-line UPS for mission-critical IT.
Units are fully refurbished, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 20 kVA / 20 kW; on-line double-conversion; unity PF; internal automatic bypass; Energy Star 2.0 |

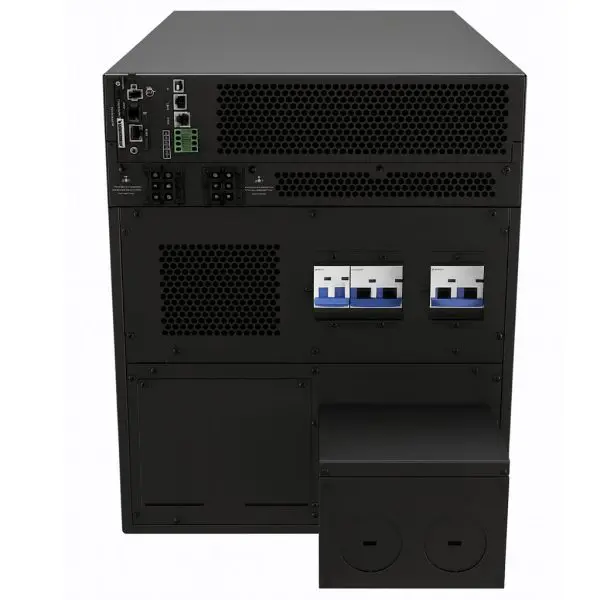

| Input | 208 VAC typical; range 176–280 VAC; 40–70 Hz (factory default 60 Hz); hard-wired terminal block 3W + G (L-L-N-G); input circuit breaker |
| Output | User-selectable 208/120 VAC (single-phase); sinewave; hard-wire output with optional PODs |
| Bypass | Automatic internal bypass; external maintenance bypass available |
| Battery System & Runtime | Valve-regulated, non-spillable, flame-retardant lead-acid; runtime (internal only): ≈4.5 min @ 100%, ≈13.0 min @ 50%; +2 matching EBCs: ≈13.0 min @ 100%, ≈34.5 min @ 50% |
| Controls & Communications | Color LCD HMI; RDU101 SNMP/Web card pre-installed; USB, RS-232, RS-485; EPO; external battery connector |

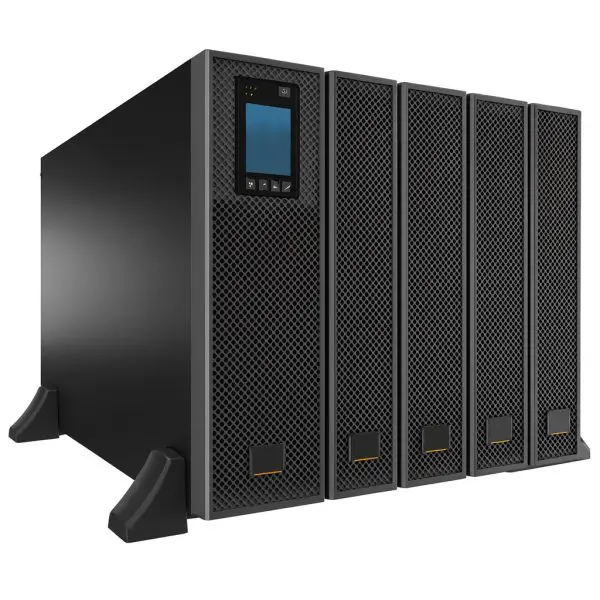

| Physical | 26.7″ D × 16.9″ W × 18.9″ H (430 × 680 × 482 mm); approx. 396.6 lb (179.9 kg); rack/tower convertible (11U); ship: 27.1″ × 48.0″ × 46.0″, 518.8 lb |
| Environment | Operating 0–40 °C; storage 5–140 °F (−15–40 °C); 0–95% RH non-condensing; altitude to 10,000 ft (3,000 m) at 25 °C without derating; acoustic <58 dBA @ 1 m |
| Efficiency & Overload | Efficiency: up to 98% (Active ECO), up to 95% (on-line); Overload (utility mode): 105–125% 5 min; 125–150% 60 s; >150% ≥200 ms |
| Accessory | Model / Type | Notes |
|---|---|---|
| External Battery Cabinet | Matching EBC (auto-detect) | Extends runtime; autodetection configures runtime reporting |
| Maintenance Bypass | External wrap-around MBC | Service the UPS without interrupting the load |
| Output Distribution | Optional PODs | Hard-wire output with configurable outlet POD options |
| Comms & Sensors | RDU101; SNMP/Modbus; environmental sensors | Remote monitoring & integration |
