$17,745.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 20–160 kVA | 208 V | 31.6″ | 35.6″ | 73.7″ | 1160 lb |
| Voltage | 20–160 kVA |
| Amp/H | 208 V |
| Length | 31.6″ |
| Width | 35.6″ |
| Height | 73.7″ |
| Weight | 1160 lb |

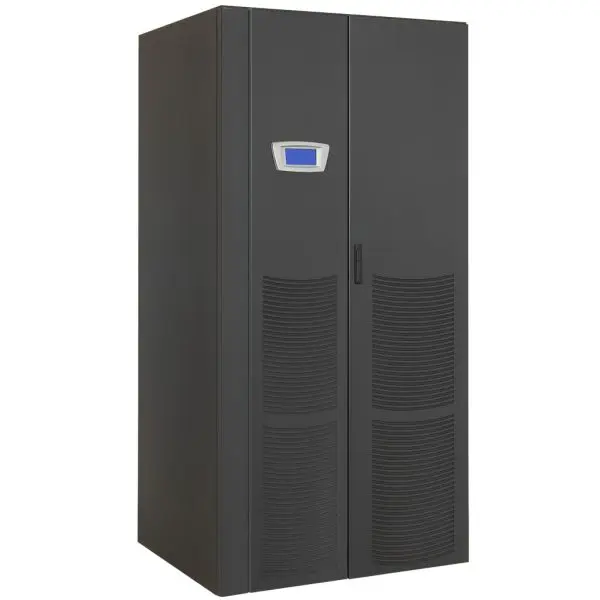

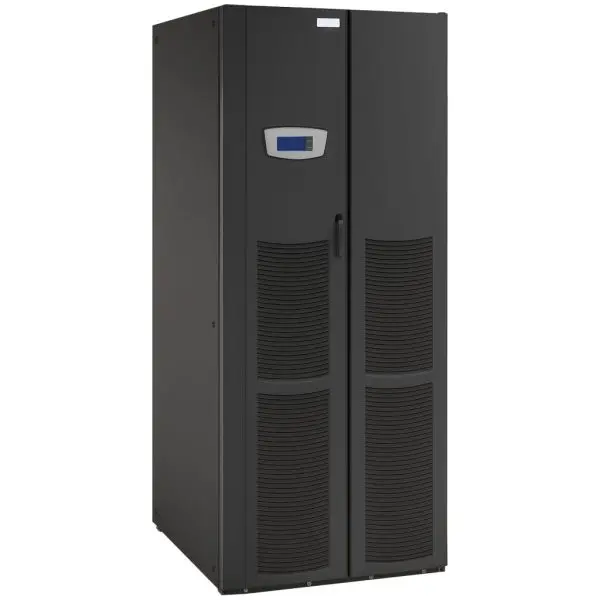

The Powerware 9390 is a continuous-duty, three-phase online UPS with an integrated static bypass and a variable DC bus for optimized performance across battery types. Our refurbished units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 20–160 kVA (0.9 PF output); double-conversion efficiency up to ~94%; variable DC bus 384/432/480 V (192–240 cells). |
| Input | 208 V: 177–229 V • 220 V: 187–242 V • 480 V: 408–528 V (3-phase). Frequency range: ±5 Hz of nominal (50/60 Hz). Input PF: ≥0.99 (full load). Input current distortion: ≤5% THDi @ full load. Generator current limit: adjustable. |
| Output | 208 V → 202–214 V • 220 V → 214–226 V • 480 V → 466–494 V. Distortion: ≤1.5% THD (linear), ≤5% THD (non-linear). Transient: ±5% for 100% step/removal. Frequency regulation: ±0.01 Hz free-running; synchronous to bypass within ±0.5 Hz; slew ≤1 Hz/s. Overload: 110%/10 min, 125%/30 s, 150%/10 s. |
| Bypass | Integrated static bypass; permissible window: +5% / −8% of output setting; sync bandwidth ±0.5 Hz. |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings per site one-line and configured lineup (UPS/IAC/IDC). |
| Battery System | Variable DC bus: 384 Vdc (208/220-V units), 432 Vdc, or 480 Vdc; ABM® charging; external battery cabinets or Integrated Battery Cabinet (IBC). |
| Controls & Comm | Front LCD/HMI with metering & event log; X-Slot options (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | 73.7″ H × 35.6″ W × 31.6″ D (1873 × 904 × 804 mm) |
| Environment | Operating: 0–40 °C (25 °C recommended). Altitude: ≤1500 m at 40 °C without derating. RH: 5–95% non-condensing. Acoustic: ~65 dB @ 1 m (typ.). |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Accessory Cabinet | IAC-B / IAC-T / IAC-D | Wrap-around maintenance bypass and tie configurations (matching sidecar). |
| Integrated Distribution Cabinet | IDC | Panelboard / sub-feed distribution matched to 9390 line-ups. |

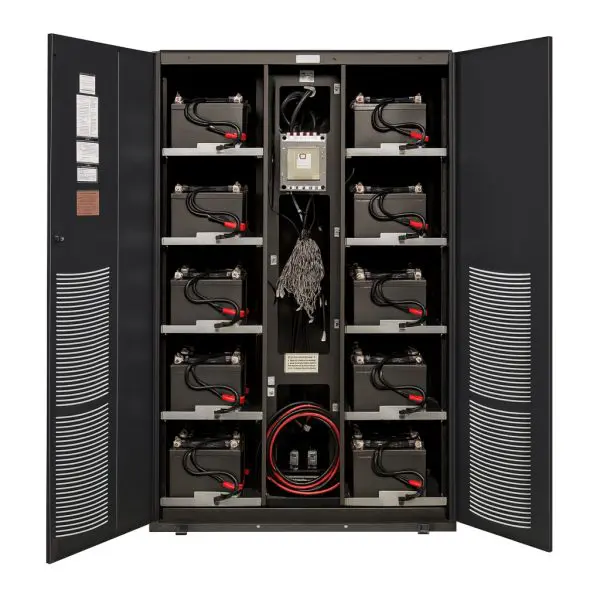

| Integrated Battery Cabinet | IBC-S / IBC-L | Line-up battery cabinets compatible with variable 384–480 Vdc bus. |
