$18,585.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 480 VDC | N/A | 31.6" | 42.7" | 74.4" | 4875 lb |
| Voltage | 480 VDC |
| Amp/H | N/A |
| Length | 31.6" |
| Width | 42.7" |
| Height | 74.4" |
| Weight | 4875 lb |

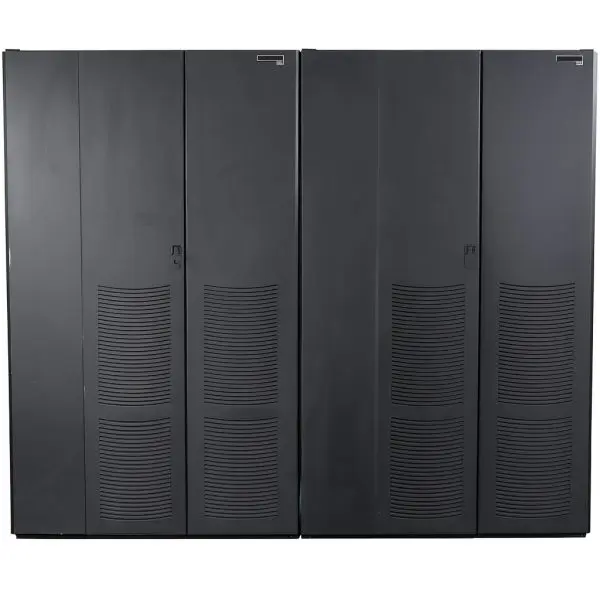

OEM integrated battery cabinet for the Eaton/Powerware 9390 UPS family. The wide 1085 mm cabinet (IBC-L) includes a factory

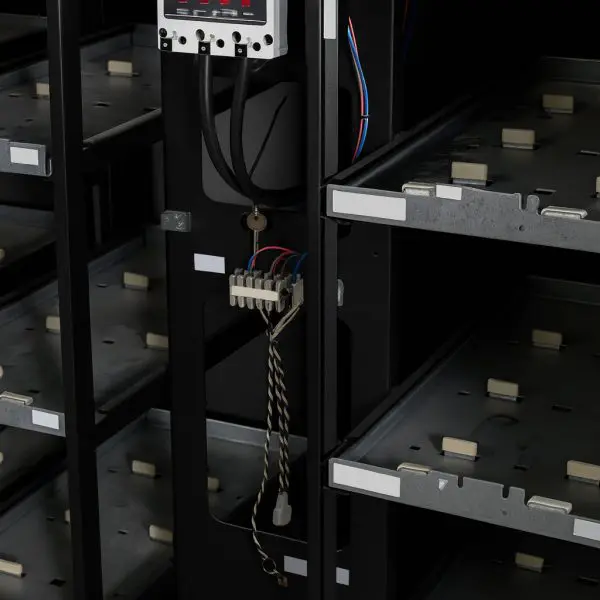

DC breaker with undervoltage release, front air inlets with top exhaust, and cabinet-to-UPS DC (+/–) and ground terminations.
Units are fully reconditioned, cosmetically refreshed, and tested in the USA.
| Category | Detail |
|---|---|
| Power & Topology | Passive VRLA battery cabinet; 480 VDC nominal bus to UPS; integrated CB1 battery breaker with UVR/shunt-trip; natural-convection cooling (front intake / top exhaust); cabinet DC positive, DC negative, and safety ground terminations. |
| Input | None (cabinet connects to the UPS DC bus). |
| Output | 480 VDC nominal to UPS; internal strings factory-interconnected; cabinet provides DC+, DC–, and GND landing points. |
| Bypass | Not applicable (use UPS/IAC maintenance bypass as required). |
| Short-Circuit / AIC | Coordinate DC protection and available fault current per site one-line; CB1 includes UVR/shunt-trip and aux status contacts. |
| Battery System | 40 batteries per cabinet (480 VDC configuration); factory harnessing and string links; terminal block for UVR/interlock and environmental probe wiring. |
| Physical | Dimensions: 74.4 in H × 42.7 in W × 31.6 in D (1889.4 × 1085 × 803.5 mm). Weight (with 40 batteries): 4800 lb installed (2177 kg); 4875 lb shipping (2211 kg). Point loading: 8 × 600 lb (272 kg). Leveling feet and top/bottom joiner brackets included for line-up installs. |
| Environment | Clearances: top 18 in (457 mm) ventilation; front 36 in working space; none required at rear/sides when joined. Operating range: 22–28 °C (72–82 °F) recommended for battery life; Max RH 95%, non-condensing. |
| Accessory | Model | Notes |
|---|---|---|
| Environmental Probe | EMP | Temperature sensor for battery ambient; required to maintain extended battery warranty. |
| External DC Disconnect | Site-specific | Recommended for multi-cabinet arrays or remote battery rooms; coordinate ampacity and AIC. |
| Joiner & Ground Kits | Field kit | Top/bottom joiners, bonding jumpers, and hardware for line-up-and-match installs. |
