$18,745.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 750 kVA | 480/600 VAC | 39.6″ | 63″ | 82″ | 12,550 lb |
| Voltage | 750 kVA |
| Amp/H | 480/600 VAC |
| Length | 39.6″ |
| Width | 63″ |
| Height | 82″ |
| Weight | 12,550 lb |

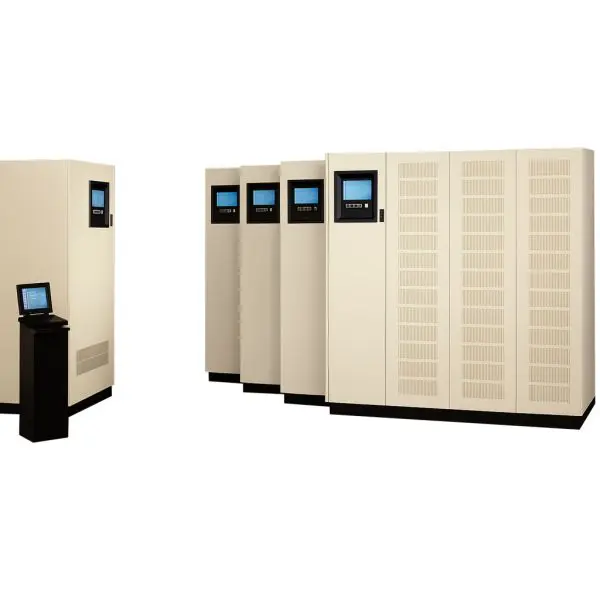

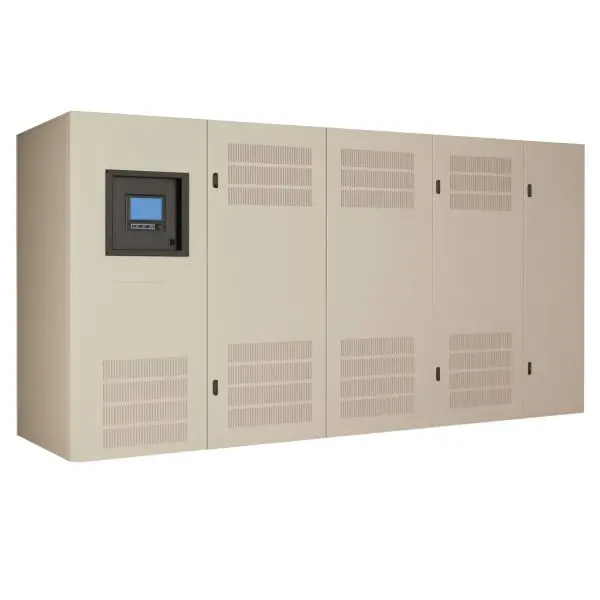

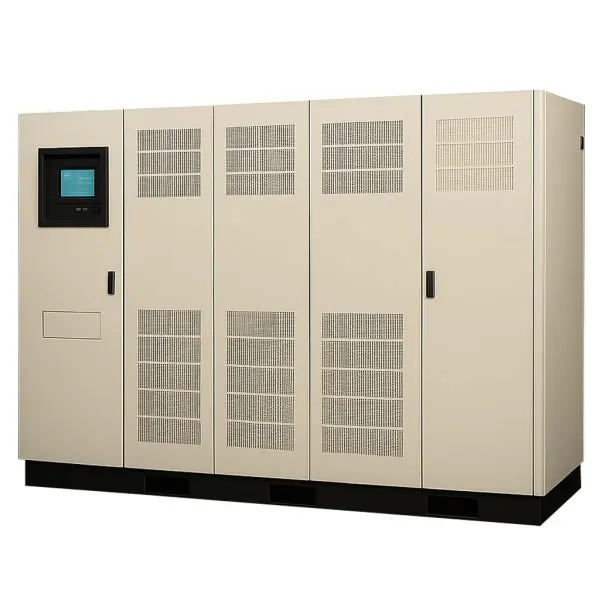

The Powerware 9315-750 is a high-power, industrial-grade on-line UPS. Each unit is fully reconditioned, cosmetically refreshed, and
tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 750 kVA; 600 kW @ 0.8 PF / 675 kW @ 0.9 PF; true double-conversion on-line; Hot Sync™ parallel-ready. |
| Input | 480/600 VAC, 3-phase; 57–63 Hz; voltage window: 408–528 VAC (480 V), 510–660 VAC (600 V). Max rectifier input current (includes recharge): 480 V — 1141 A (0.8 PF), 1181 A (0.9 PF); 600 V — 913 A (0.8 PF), 945 A (0.9 PF). |
| Output | 480/600 VAC, 3-phase; regulation ±1% (static); step-load deviation ≤±5% @ 100% step; VTHD ≤3% (linear) / ≤5% (non-linear). Nominal full-load current: 480 V — 902 A; 600 V — 722 A. Frequency ±0.01 Hz free-running; sync band ±0.5 Hz; slew ≤1 Hz/s. |
| Bypass | Integrated static bypass; bypass full-load current: 480 V — 902 A; 600 V — 722 A. |
| Short-Circuit / AIC | Per configured lineup; coordinate breaker ratings and settings to the site one-line. |
| Battery System | DC link: 480 Vdc nominal / 540 Vdc float / ≈401 Vdc end-of-discharge (240 cells). Max battery current at end-of-discharge: 1315 A dc (0.8 PF); 1480 A dc (0.9 PF). |
| Controls & Comm | Local monitor/HMI; X-Slot cards: web/SNMP, Modbus/RS-485, serial; summary alarm contacts; EPO/REPO. |
| Physical | Rectifier cabinet: 82″ H × 63″ W × 39.6″ D; Inverter cabinet: 82″ H × 63″ W × 39.6″ D; MBC: 82″ H × 22″ W × 39.6″ D. Line-up width ≈ 148″; installed weight ≈ 12,550 lb; heat rejection ≈ 130,800 BTU/h. |
| Environment | Operating 0–40 °C; ≤95% RH non-condensing; altitude ≤1500 m without derate; acoustic ≈75 dBA @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass for maintenance/testing |
| Input/Output Transformer Cabinet | Factory options | Voltage adaptation/isolation (e.g., 480↔208 V) |
| Power Distribution Module | PDM sidecar | Downstream panelboard distribution |
| Battery Plant | Line-up-and-match | External VRLA cabinets sized to runtime; RBB/DC disconnects |
