$17,945.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| N/A | N/A | 30.2″ | 12.0″ | 32.2″ / 47.8″ | 480 / 710 lb |
| Voltage | N/A |
| Amp/H | N/A |
| Length | 30.2″ |
| Width | 12.0″ |
| Height | 32.2″ / 47.8″ |
| Weight | 480 / 710 lb |

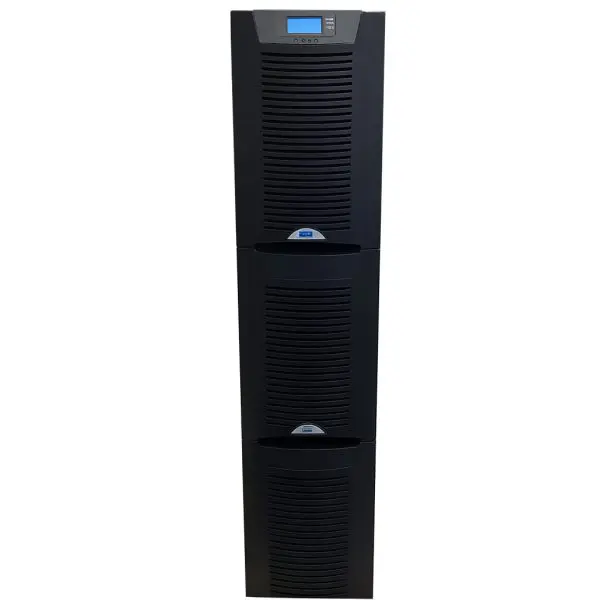

Factory-matched extended battery cabinets for the Eaton/Powerware 9155 UPS. These EBMs add runtime with hot-serviceable VRLA
strings in a narrow, line-up footprint. Each cabinet is reconditioned, cosmetically refreshed, and
tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | Passive VRLA battery cabinet matched to Eaton/Powerware 9155; no AC power conversion inside cabinet |
| Input | None (cabinet connects to UPS DC bus) |
| Output | DC energy storage for the UPS; cabinet strings are paralleled onto the UPS DC bus (nominal 192 Vdc per string on 9155 family) |
| Bypass | Not applicable (use UPS maintenance bypass/MBB for service) |
| Short-Circuit / AIC | Coordinate cabinet DC protection with site one-line; cabinet breakers interlocked to UPS per OEM practice |
| Battery System | EBM-64 (2-High): 64 batteries, 4 strings (VRLA) • EBM-96 (3-High): 96 batteries, 6 strings (VRLA). Hot-serviceable cabinet breakers; ABM® charging managed by the 9155 UPS; runtime scales with cabinet count and load. |
| Controls & Comm | No active electronics; cabinet status via UPS (breaker status & battery test executed from UPS) |
| Physical | 2-High EBM (EBM-64): 32.2″ H × 12.0″ W × 30.2″ D; ≈480 lb 3-High EBM (EBM-96): 47.8″ H × 12.0″ W × 30.2″ D; ≈710 lb |
| Environment | Recommended battery ambient 77 °F (25 °C); operating 50–104 °F (10–40 °C); 5–95% RH non-condensing; altitude ≤3,000 m without derating |
| Accessory | Model | Notes |
|---|---|---|
| 2-High Extended Battery Module | EBM-64 (103004192-5501) | 32.2″ × 12.0″ × 30.2″; ≈480 lb; four strings |
| 3-High Extended Battery Module | EBM-96 (103004193-5501) | 47.8″ × 12.0″ × 30.2″; ≈710 lb; six strings |
| Rear-mount MBM / PDM | MBM / PDM sidecars | Maintenance bypass and distribution options for 9155 line-ups |
