Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
$17,657.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/220 VAC | 208/220 VAC | 40.15" | 35.43" | 79.17" | 1,278 lb |
| Voltage | 208/220 VAC |
| Amp/H | 208/220 VAC |
| Length | 40.15" |
| Width | 35.43" |
| Height | 79.17" |
| Weight | 1,278 lb |

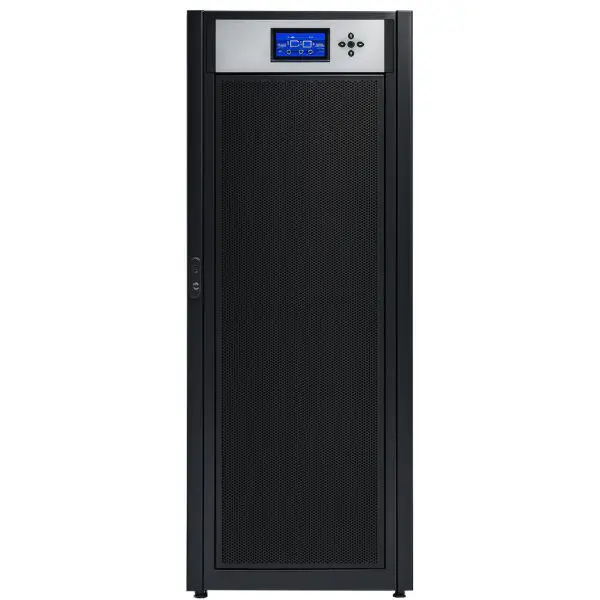

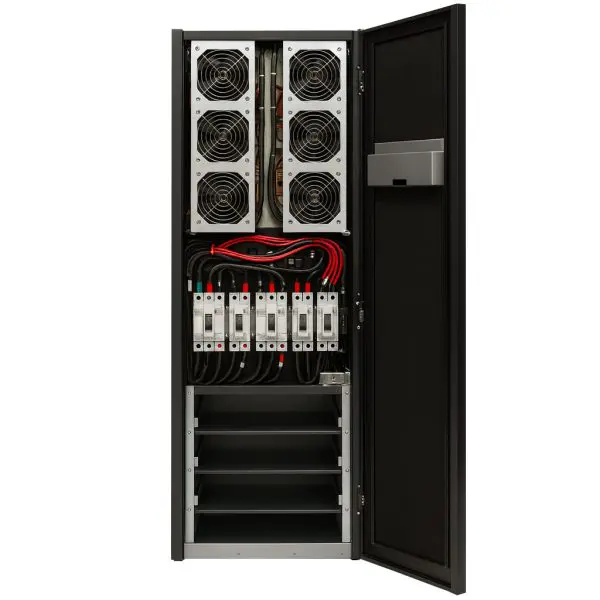

Eaton’s 93E provides compact, three-phase on-line protection with IGBT rectifier, low input distortion,
and Hot Sync paralleling. Our refurbished units are reconditioned, cosmetically refreshed, and
tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | True double-conversion on-line; transformer-free; Hot Sync™ parallel capability; high-efficiency mode available |
| Input | 208/220 VAC, 3-phase 4-wire; 50/60 Hz; minimum input PF ≈0.99; input current distortion ≤5% THDi at full load; rectifier walk-in/ramp-in supported |
| Output | 208/220 VAC, 3-phase; voltage regulation ±1% (10–100% load); VTHD ≤2% (linear) / ≤5% (non-linear); 50/60 Hz (bypass-sync) or ±0.1% free-running |
| Bypass | Integrated static bypass; compatible with integrated accessory bypass cabinets (sidecar/IAC) |
| Short-Circuit / AIC | Coordinate per site one-line and protective device study (varies by installation) |
| Battery System | Internal battery on select frames; external VRLA battery cabinets for extended runtime; intelligent charging and user-initiated battery test |
| Controls & Comm | Front LCD/HMI with metering; REPO; network/SNMP, RS-485/Modbus, and dry-contact options; event history and alarms |
| Physical | Approx. 2011 H × 900 W × 1020 D mm (60 kVA frame, ref. site plan); free-standing tower with front service access |
| Environment | Indoor, temperature-/humidity-controlled location; ambient not to exceed 30 °C; ≤95% RH non-condensing (observe OEM clearances/ventilation) |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Accessory Cabinet — Bypass | SIAC-B / IAC-TB | Sidecar or tie-and-bypass cabinet for wrap-around service bypass |
| Integrated Transformer Cabinet | ITC | Input/output transformer options (voltage adaptation/isolation) |
| External Battery Cabinets | EBC (various) | Runtime scales with cabinet count and AH; remote battery breaker options available |
