$19,745.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 80 kW / 80 kVA | 208 VAC | 35.5″ | 48.0″ | 81.5″ | 3263 lb |
| Voltage | 80 kW / 80 kVA |
| Amp/H | 208 VAC |
| Length | 35.5″ |
| Width | 48.0″ |
| Height | 81.5″ |
| Weight | 3263 lb |

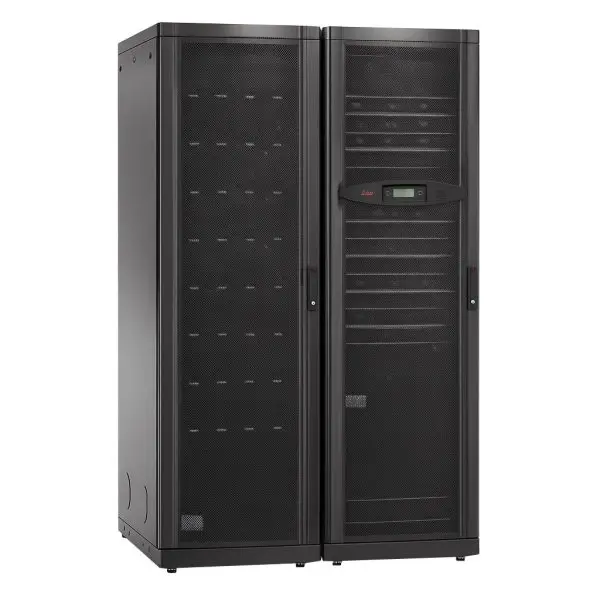

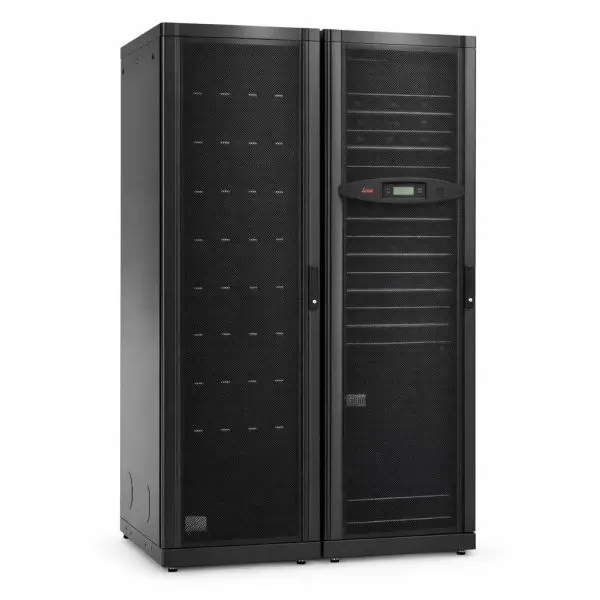

The Symmetra PX 80 kW delivers high-efficiency three-phase protection with modular architecture
and external Premium XR battery enclosures. Our refurbished units are fully reconditioned, cosmetically
refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 80 kW / 80 kVA; double-conversion on-line; sine-wave output; redundant architecture |
| Input | 208 VAC, 3-phase, hard-wire 5-wire (3P+N+E); voltage window 177–240 V; 50/60 Hz ±5% auto-sensing; input PF 0.99 (full load) |
| Output | 120/208 V and 208 V 3-phase; max output current 222 A; THD <3% (linear); 57–63 Hz when sync’d to mains or 60 Hz ±0.1% free-running; crest factor unlimited |
| Bypass | Built-in static bypass (internal) |
| Short-Circuit / AIC | Short-time withstand current 30 kA |
| Battery System | External Premium XR battery enclosure; battery filled slots: 8 (free: 0); recharge time ≈2 h; charger rating ≈11.0 kW; typical life 3–5 years; extended runtime supported |
| Controls & Comm | Network Management Card preinstalled; 2 free slots; Emergency Power Off (EPO) |
| Physical | 81.5″ H × 48.0″ W × 35.5″ D; ≈3263 lb (1480 kg); NEMA 1; heat dissipation ≈22,744 BTU/h; acoustic ≈71 dBA |
| Environment | Operating 32–104 °F (0–40 °C); 0–95% RH non-condensing; altitude 0–10,000 ft; storage −15–40 °C |
| Accessory | Model | Notes |
|---|---|---|
| Battery Module (PX) | SYBTU1-PLP | Hot-swappable module used in XR enclosures |
| Replacement Battery Kit | SYBT4 | Factory battery kit for SYBTU1-PLP modules |
| Power Module (10 kW) | SYPM10KF / SYPM10KF2 | Symmetra PX 208 V power module (HE successor: KF2) |
| Maintenance Bypass Cabinet | MBB (site-specific) | Wrap-around service bypass option |
