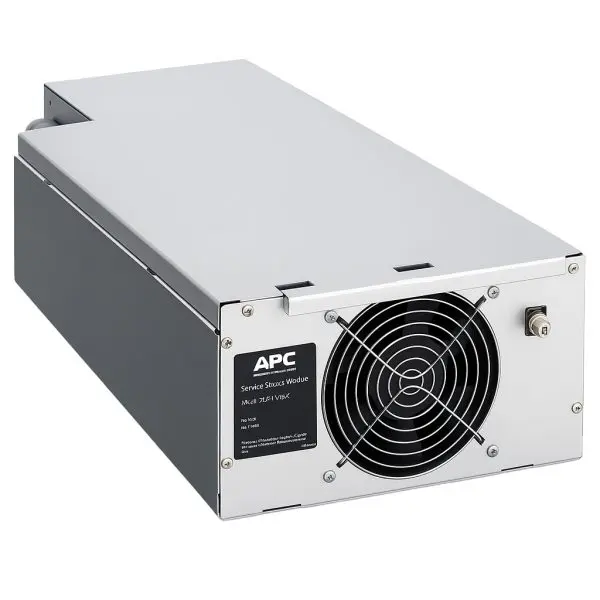

APC – Symmetra LX – SYPM4KP – 4kVA Power Module – Tested

Manufacturer

OEM Part Number

SYPM4KP

GPS Part Number

56-APC-SYPM4KPT

Price:

$850.00

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
200/208 Volts 4 kVA 34" 17" 15" 39 lbs
Voltage 200/208 Volts
Amp/H 4 kVA
Length 34"
Width 17"
Height 15"
Weight 39 lbs

This 4 kVA Power Module, APC PN — SYPM4KP, is available in either completely refurbished or tested versions.

This is the Tested Version.

As a four-decade industry veteran, Gruber Power
pioneered the refurbishment of critical power equipment modules like this.
Our meticulous testing processes by EE staff include full load bank testing in our UPS Depot Operations,
simulating worst-case conditions to validate proper operation under real-world loads.

Backed by our full 90 Day Warranty, this fully tested power module
delivers dependable performance and peace of mind for mission-critical
APC Symmetra LX systems.

Product Options — Tested vs. Refurbished Power Modules
Option Description Warranty
Tested Operationally verified power module. Passed load bank testing and QC inspection without
component-level refurbishment.
90‑Day
Refurbished Fully rebuilt with new capacitors, fans, and other wear items. Reconditioned to like-new performance and appearance.
1‑Year
APC Symmetra LX SYPM4KP vs SYPM
  • SYPM4KP — 4 kVA module for Symmetra LX frames.
  • SYPM — 4 kVA module for classic Symmetra (non-LX) frames.
  • Intermixing — Not supported between Symmetra LX and classic Symmetra series.

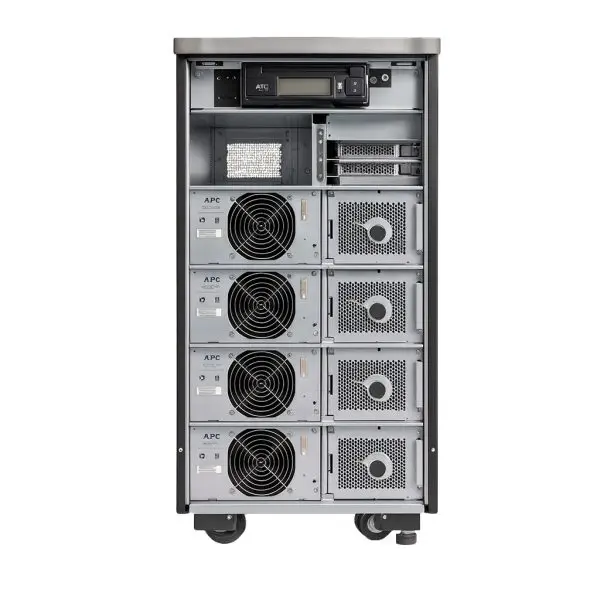

Power Module ↔ UPS Matrix — Symmetra LX frames using SYPM4KP (Representative)
UPS Model Form Factor Compatible Power Module Std. Modules Max Modules Usable kW
Symmetra LX (8–16 kVA) Symmetra LX cabinet SYPM4KP (4 kVA)

Notes: SYPM4KP is the 4 kVA power module used in APC Symmetra LX systems.
For exact module counts, redundancy (N+1) configurations, and frame-by-frame compatibility, contact us and we’ll confirm against your specific UPS model.
