| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 400-480 Volts | N/A | 27.76 | 17.8 | 6.81 | 92.4 lbs |
| Voltage | 400-480 Volts |
| Amp/H | N/A |
| Length | 27.76 |
| Width | 17.8 |
| Height | 6.81 |
| Weight | 92.4 lbs |

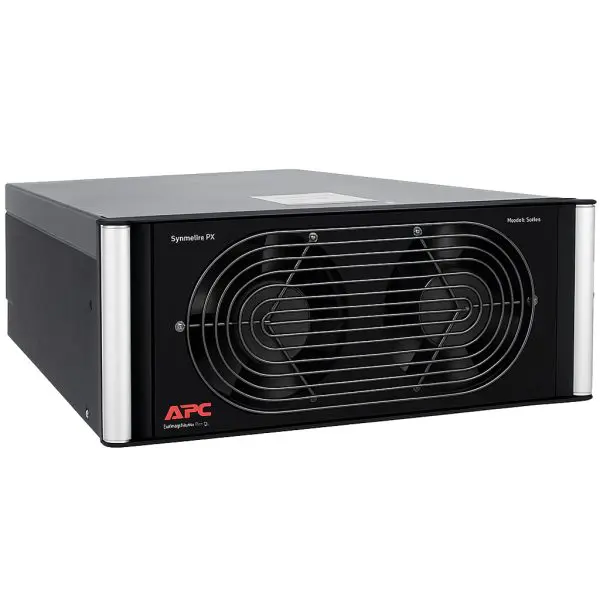

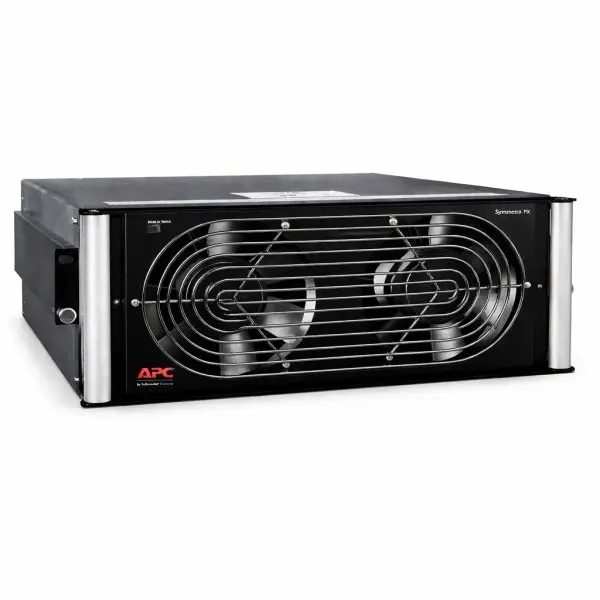

This 25 kVA Power Module, APC PN – SYPM25KD, is now available!

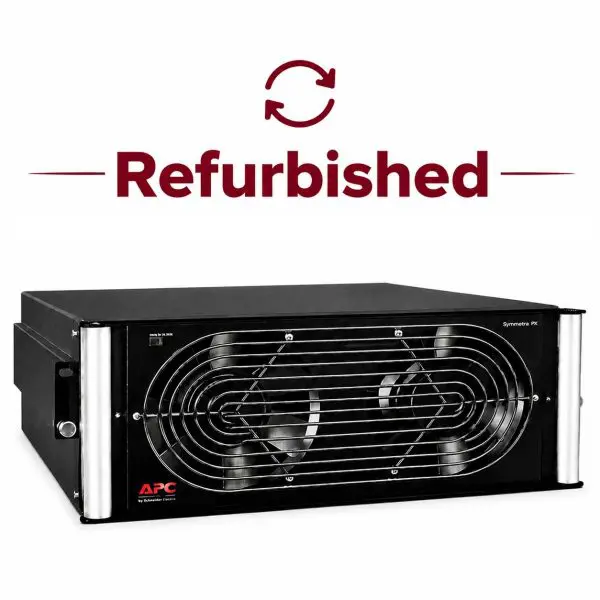

Refurbished 25kW power module compatible with Symmetra PX 250kVA and 500kVA systems. Fully tested under load and backed by a one-year replacement warranty. We stock the complete line of APC Symmetra components, including power modules, battery modules, intelligence modules, and full UPS systems.
| UPS Model | Form Factor | Compatible Power Module | Std. Modules | Max Modules | Usable kW |
|---|---|---|---|---|---|

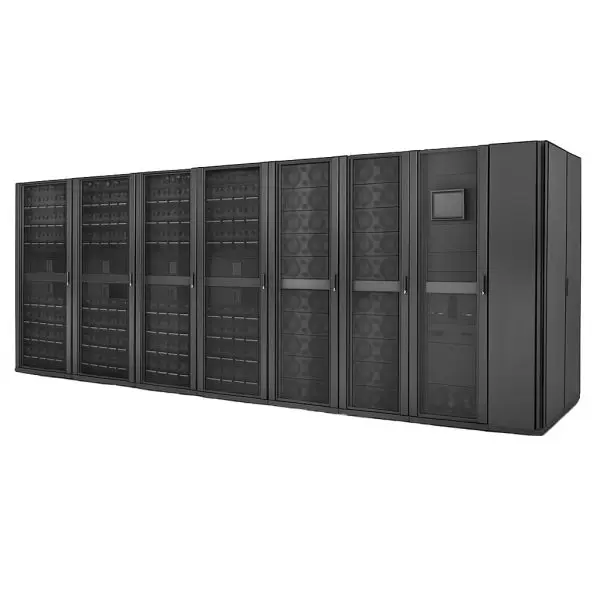

| SY250K500D | Symmetra PX 250 kW system | SYPM25KD (25 kW) | 10 | 10 | 250 → 250 |
| SY250K500DL-PD | PX 250 kW with L-mounted MBD | SYPM25KD | 10 | 10 | 250 → 250 |
| SY500K500D | Symmetra PX 500 kW system | SYPM25KD | 20 | 20 | 500 → 500 |
| SY500K500DL-PD | PX 500 kW with L-mounted MBD | SYPM25KD | 20 | 20 | 500 → 500 |
| SYPF250KD | PX Power-Module Frame (400/480 V) | SYPM25KD | — | 10 | Up to 250 |
