$1,720.00
| Voltage | Amp/H | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 240/208 Volts | N/A | 27.56 | 19.02 | 5.24 | 58.11 lbs |
| Voltage | 240/208 Volts |
| Amp/H | N/A |
| Length | 27.56 |
| Width | 19.02 |
| Height | 5.24 |
| Weight | 58.11 lbs |

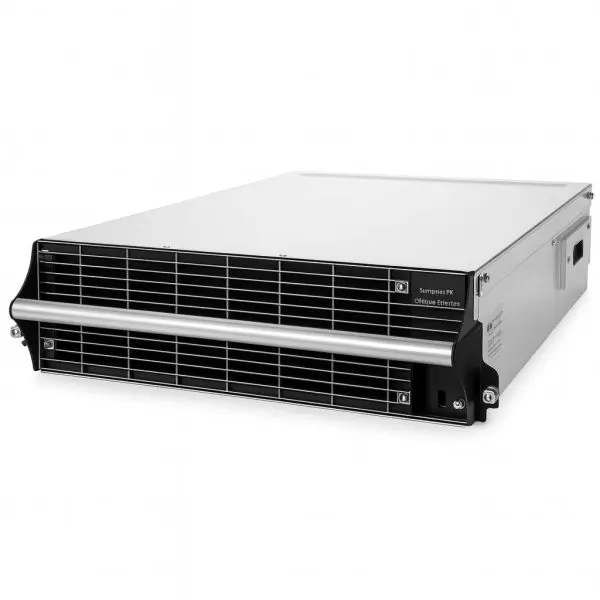

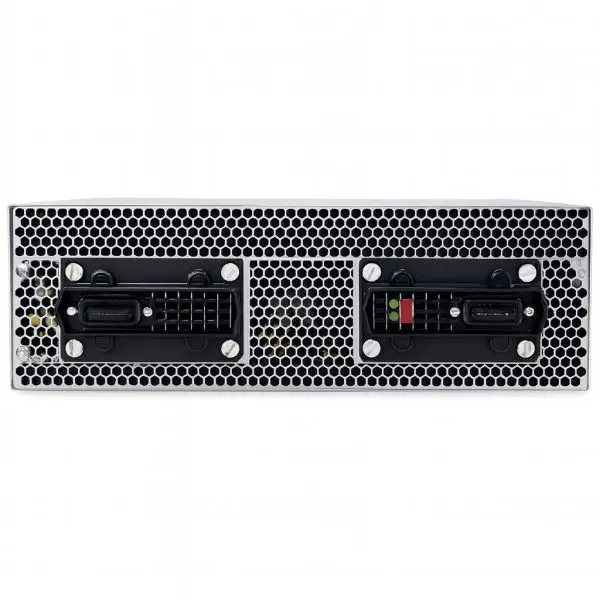

This 10kW Power Module, APC PN – SYPM10KF, has been expertly refurbished with a complete capacitor replacement and a refresh/replacement of all critical wear items. Each unit is serviced in our professional electronics lab by experienced engineers to ensure the highest level of reliability and performance.
As a four-decade industry veteran, Gruber Power pioneered the refurbishment of critical power equipment modules like this. Our meticulous rebuild process includes full load bank testing in our UPS Depot Operations, simulating worst-case conditions to validate proper operation under real-world loads.
Our Critical Power Module rebuild process resets the module to factory specifications and optimal performance, prolongs service life, and reduces the risk of unplanned downtime—at a fraction of the cost of a brand-new replacement.
Backed by our full 1-Year Warranty, this refreshed power module delivers dependable performance and peace of mind for mission-critical APC Symmetra PX systems.
| UPS Model | Form Factor | Compatible Power Module | Std. Modules | Max Modules | Usable kW |
|---|---|---|---|---|---|
| SY10K40F | PX 208 V cabinet | SYPM10KF (10 kW) | 1 | 5 | 10 → 40 (N+1 @ 5) |
| SY20K40F | PX 208 V cabinet | SYPM10KF | 2 | 5 | 20 → 40 (N+1 @ 5) |
| SY40K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 4 | 9 | 40 → 80 (N+1 @ 9) |
| SY50K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 5 | 9 | 50 → 80 (N+1 @ 9) |
| SY80K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 8 | 9 | 80 → 80 (N+1 @ 9) |
| SY40K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 4 | 10 | 40 → 100 |
| SY50K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 5 | 10 | 50 → 100 |
| SY80K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 8 | 10 | 80 → 100 |

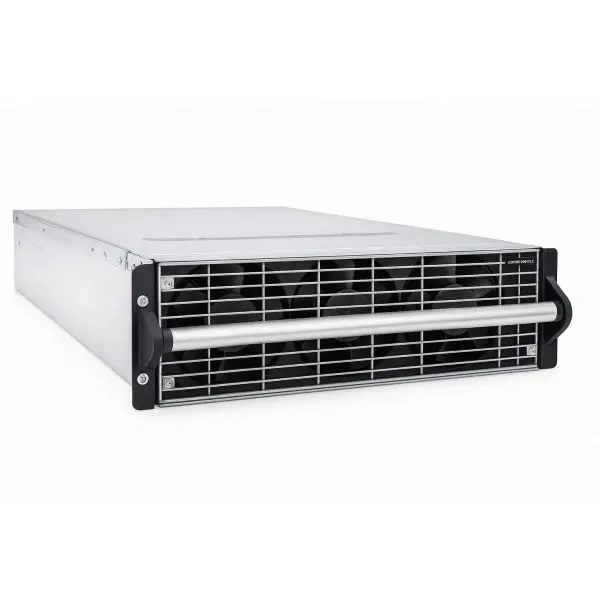

Notes: SYPM10KF is a 208 V, 3-phase 10 kW module used across Symmetra PX 20/40/80/100 kW families; it was discontinued and superseded by
SYPM10KF2. The 40→80 kW cabinets reach N+1 at nine modules; 100 kW frames support up to ten modules.
