$18,445.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 160 kVA | 31.6" | 35.8" | 73.7" | 960 lb |
| Voltage | 208/120 |
| Amp/H | 160 kVA |
| Length | 31.6" |
| Width | 35.8" |
| Height | 73.7" |
| Weight | 960 lb |

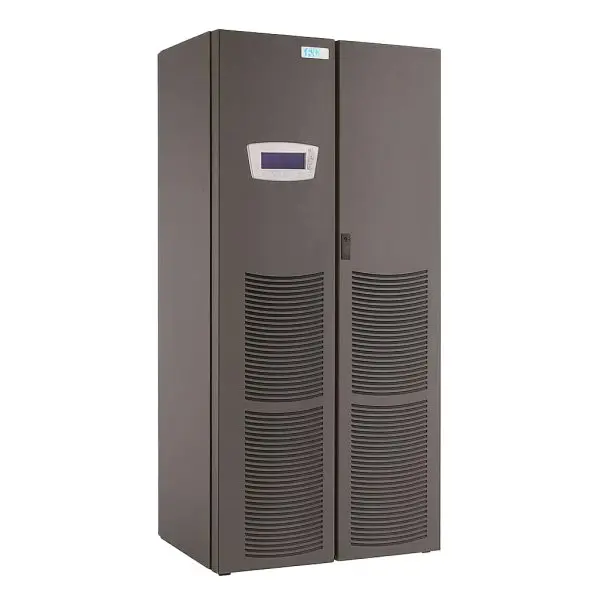

Built for mid-to-large data centers and industrial loads, the Powerware 9390-160 delivers high-efficiency three-phase protection in a compact footprint. Our refurbished units are fully reconditioned, cosmetically refreshed to factory colors, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 160 kVA / 144 kW; double-conversion online; sine-wave output (0.9 PF rating) |
| Input | 480 V 3-phase; 55–65 Hz; PF ≥ 0.99 (typ.); THDi < 4.5% at full load; voltage window +10%/−15% |
| Output | 480 V 3-phase; regulation ±1% (static); THD ≈ 2% linear / 5% non-linear; full kW support from 0.9 lagging to 0.9 leading |
| Bypass | Built-in static bypass |
| Short-Circuit / AIC | — Refer to site coordination and upstream protection (see installation manual tables) |
| Battery System | External battery cabinets (VRLA/AGM/gel/wet supported); DC bus ≈ 384–480 V; ABM™ charging |
| Controls & Comm | Front panel LCD/UI; network/SNMP options available; Hot Sync® for parallel capacity/redundancy (tie cabinet) |
| Physical | 1873 H × 910 W × 803 D mm (73.7″ × 35.8″ × 31.6″); ≈ 960 lb |
| Environment | Indoor, data-center use; altitude to ~2000 m at 40 °C (family spec); see manual for full limits |
| Accessory | Model | Notes |
|---|---|---|
| Battery Cabinet — Small | 9390 SBC (family) | VRLA strings; runtime scales with cabinet count |
| Battery Cabinet — Large | 9390 LBC (family) | Higher capacity per cabinet for extended runtime |
| Integrated Accessory Cabinet (IAC-D) | IAC-D | Distribution panelboards/sub-feeds for downstream loads |
