$18,445.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | 60 KVA | 36" | 29.02" | 80.98" | 1,600 – 1,900 lb |
| Voltage | 208/120 |
| Amp/H | 60 KVA |
| Length | 36" |
| Width | 29.02" |
| Height | 80.98" |
| Weight | 1,600 – 1,900 lb |

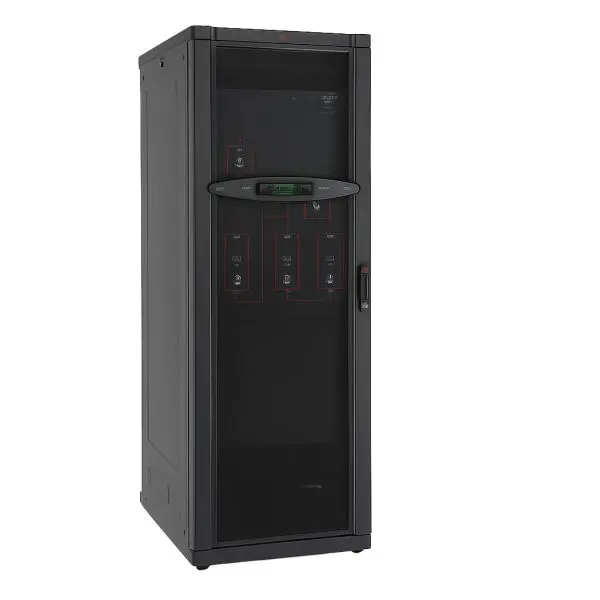

Built to simplify distribution for medium/large IT rooms, this InfraStruXure PDU steps 480 V down to 208/120 V and integrates an MPB for serviceability. Our refurbished units are reconditioned, cosmetically refreshed to factory colors, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Architecture | 80 kW configurable distribution PDU with integrated 480→208/120 V isolation transformer; floor-standing cabinet |
| Input | 480 V 3-phase, 60 Hz nominal |
| Output | 208Y/120 V 3-phase distribution via 1×42-pole panelboard; branch breaker layout configurable |
| MPB / Bypass | Integrated MPB (maintenance power/bypass) allows service without downtime |
| Branch Distribution | Up to 42 poles in the installed panelboard; supports mix of 1-, 2-, and 3-pole breakers as configured |
| Monitoring & Alarms | Local display; network/remote monitoring options available for InfraStruXure PDUs |
| Physical | ≈ 80.98″ H × 29.02″ W × 36.0″ D; weight varies by transformer/panel configuration (typ. ~1,600–1,900 lb) |
| Environment | Indoor, data-center use; 0–40 °C, 0–95% RH (non-condensing); ≤ ~3,300 ft operating altitude (family spec) |
| Standards | UL / cUL compliance (model family) |
| Accessory | Model | Notes |
|---|---|---|
| Additional Panelboard | — | Optional second 42-pole board if expansion is required (cabinet-dependent) |
| Branch Breakers | — | Configured to order (mix of 1P/2P/3P ratings to match load plan) |
| Monitoring / Comms | — | Local & network monitoring options for this model family |
