$4,600.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 480/208/120 | 40ย kVA | 81.0 | 24.0 | 36.0 | ~1276 |
| Voltage | 480/208/120 |
| Amp/H | 40ย kVA |
| Length | 81.0 |
| Width | 24.0 |
| Height | 36.0 |
| Weight | ~1276 |

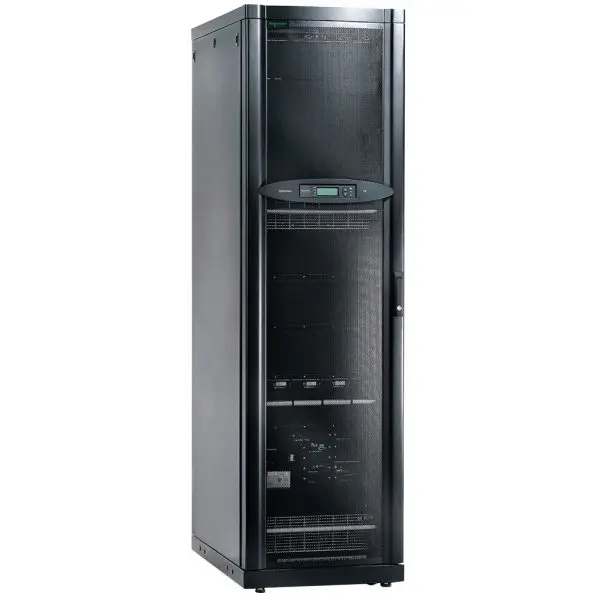

APC Symmetra PX โ Bypass PDU Cabinet (40ย kVA)
SKU: PDU-APC-PD40G6FK1-M ย |
Type: Floor-standing Bypassย +ย Distribution Cabinet for Symmetraย PX 40ย kW (integrated
maintenance bypass and dual panelboard distribution). Input 480ย V 3-phase, output 120/208ย V 3-phase,
three-breaker maintenance bypass (MBB), and two 42-pole panelboards with top and/or bottom feed.
| Parameter | Detail |
|---|---|
| Cabinet Type | Bypassย +ย Distribution cabinet; floor-standing |
| Compatible UPS | APC Symmetraย PX 40ย kW (208ย V systems) |
| Input | 480ย V 3-phase; 60ย Hzย ยฑย 3ย Hz; 1 hardwired feed; max input current 67ย A |
| Output | 120/208ย V 3-phase; max total output current 139ย A |
| Frame Rating | 40ย kVA |
| Maintenance Bypass | Three-breaker MBB integrated |
| Distribution | Two 42-pole panelboards; top and/or bottom feed |
| Dimensions (HรWรD) | 81.0ย รย 24.0ย รย 36.0ย in (2057ย รย 610ย รย 914ย mm) |
| Net Weight | โย 1,276ย lb (580ย kg) |
| Approvals | cUL Listed; ULย 60950 |
| Environment | Operating: 32โ104ย ยฐF (0โ40ย ยฐC), 0โ95% RH; Elevation 0โ10,000ย ft Storage: 0โ113ย ยฐF (0โ45ย ยฐC), 0โ95% RH; Elevation 0โ30,000ย ft |
| Color | Black |
| Warranty (mfr.) | 1-year repair or replace (typical for cabinet assemblies) |
This 40ย kVA Bypass PDU cabinet is the standard companion for Symmetraย PX 40ย kW 208ย V systems requiring
integrated maintenance bypass and panelboard distribution. Alternate input/transformer options are available in the
same family for 208โ208 and 600โ208 applications.
| Option | Description | Warranty |
|---|---|---|
| Tested | Input/output verification; breaker/MBB functional test; panelboard pole continuity; indicator/LCD check; safety interlocks verified. | 90โDay |
| Refurbished | Cleaned, serviced cabinet; cosmetic touch-ups; full MBB and distribution re-test; torque & insulation checks documented. | 1โYear |
| Model | Input โ Output | Distribution | Notes |
|---|---|---|---|
| PD40G6FK1-M | 480ย Vย 3ฯ โ 120/208ย Vย 3ฯ | (2) 42-pole panelboards | Integrated three-breaker MBB; top/bottom feed. |
| PD40F6FK1-M | 208 V 3ฯ โ 208 V 3ฯ (transformer less) | Panelboard distribution | With maintenance bypass panel; 40ย kW frame. |
| PD40L6FK1-M | 600ย Vย 3ฯ โ 120/208ย Vย 3ฯ | Panelboard distribution | With maintenance bypass panel; utility 600ย V inputs. |
| PDRPPNX10-M | 208ย Vย 3ฯ โ 208ย Vย 3ฯ | Panelboard distribution | Transformer less Infra Structure PDU with MBB. |
