$28.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 1400 V | 115 A | N/A | N/A | N/A | ≈ 110 g |
| Voltage | 1400 V |
| Amp/H | 115 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈ 110 g |

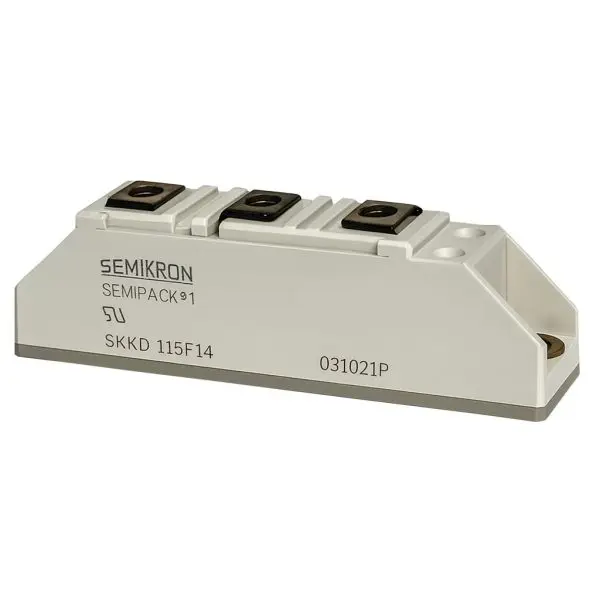

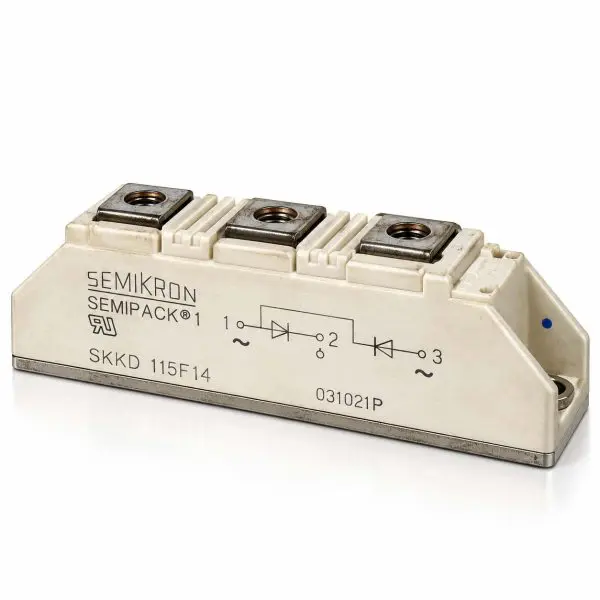

SEMIPACK 1 fast dual-diode module for non-controlled rectifiers and front-end converters. 1.4 kV blocking class with
high surge capability and an insulated ceramic baseplate for straightforward heatsinking.
| Parameter | Value |
| Manufacturer | Semikron Danfoss |
| Part Number | SKKD 115F14 |
| Device Type | Dual fast-recovery rectifier diodes (series/center-tap) |
| Repetitive Peak Reverse Voltage (VRRM) | 1400 V |
| Average Forward Current (IF(AV)) | 115 A (per module, case-rated) |
| R.M.S. Forward Current (IF(RMS)) | 200 A (family data) |
| Surge Forward Current (IFSM) | 2.1–2.5 kA (10 ms) |
| Forward Voltage (VFM) | ≤ 1.8 V (spec max) |
| Thermal Resistance Rth(j-c) | ≈ 0.24 K/W per diode (≈ 0.12 K/W per module) |
| Case / Outline | SEMIPACK 1 (A10) / TO-240AA; isolated baseplate |
| Mass (typ.) | ≈ 110 g |
| Configuration | Dual series diodes (center-tap rectifier) |
