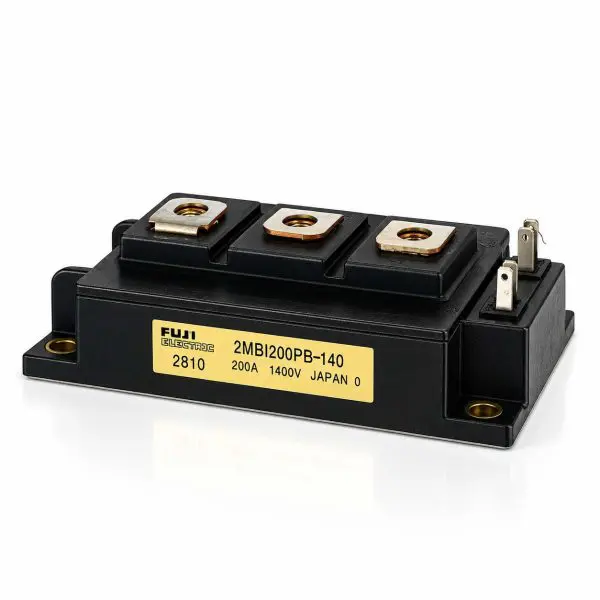

FUJI – 2MBI200PB 140 – IGBT Power Transistor – Reclaimed Part

2MBI200PB-140_1
EE
2MBI200PB-140_1
EE

Manufacturer

OEM Part Number

2MBI200PB 140

GPS Part Number

27-FUJ-2MBI200PB 140

Categories

Tags

Price:

$213.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1400 V N/A 200 A N/A N/A N/A 909 grams
Voltage 1400 V
WPC N/A
Amp/H 200 A
Length N/A
Width N/A
Height N/A
Weight 909 grams

Fuji Electric — 2MBI200PB-140 IGBT Module
1400 V •
200 A •
Dual half-bridge (2 IGBTs + antiparallel diodes) •
Isolated baseplate (M235 package)
What it is

1400 V, 200 A dual IGBT “2-in-one” module from Fuji’s P-Series. Suited for UPS bridges, motor drives, and general-purpose inverters, with wide RBSOA, strong short-circuit withstand, and fast free-wheel diodes in a screw-mount, isolated-base module.

At-a-Glance
  • Voltage / Current: 1400 V / 200 A (cont. @ Tc=80 °C); 300 A (cont. @ 25 °C); up to 600 A (1 ms pulse)
  • Topology: Dual IGBT half-bridge with antiparallel diodes
  • Mounting: Screw-mount, isolated copper baseplate (M235)
  • Use Cases: UPS inverter/rectifier; AC/DC servo; industrial motor drives
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • Low conduction loss — VCE(sat) typ. ≈ 2.7 V (max 3.0 V) @ 200 A, 25 °C; ≈ 3.3 V @ 125 °C.
  • Wide RBSOA & SC withstand — robust hard-switch operation.
  • Parallel-friendly — narrow characteristic distribution for easy paralleling.
  • Service-friendly — standard 2-pack footprint with isolated base.
Technical Specifications
Parameter Value
Manufacturer Fuji Electric
Part Number 2MBI200PB-140
Device Type Dual IGBT half-bridge with antiparallel diodes
Collector-Emitter Voltage (VCES) 1400 V
Collector Current (IC) 200 A (cont., Tc=80 °C); 300 A (cont., 25 °C); 400–600 A (1 ms pulse, per datasheet)
Collector Power Dissipation (PC) 1500 W @ Tc=25 °C
VCE(sat) 2.7 V typ. / 3.0 V max @ VGE=15 V, IC=200 A, 25 °C; ≈ 3.3 V @ 125 °C
Gate-Emitter Voltage (max) ±20 V
Gate Threshold VGE(th) 6.0–9.0 V (typ. 8.0 V)
Capacitances (typ.) Cies ≈ 20 nF; Coes ≈ 3.0 nF; Cres ≈ 1.3 nF (VCE=10 V, 1 MHz)
Switching (typ.) ton 1.20 µs; tr 0.60 µs; toff 1.00 µs; tf 0.30 µs (VCC=600 V, IC=200 A, VGE=±15 V, RG=4.7 Ω)
Diode VF 2.4–3.3 V @ IF=200 A; trr ≈ 0.35 µs
Thermal Resistance RthJC(IGBT) ≈ 0.085 °C/W; RthJC(Diode) ≈ 0.180 °C/W; RthCF ≈ 0.025 °C/W (with grease)
Isolation 2.5 kVAC / 1 min (terminals–baseplate)
Operating / Storage Tj −- to +150 °C (max); Tstg −40…+125 °C
Torque (recommended) Mounting 2.5–3.5 N·m (M5); Terminals 3.5–4.5 N·m (M6)
Package / Footprint M235 2-pack module; screw terminals; isolated base
Configuration Dual (2-pack half-bridge)
Compatibility / Representative Uses
Module Applications Notes
2MBI200PB-140 UPS inverter/rectifier bridges; AC/DC servo drives; industrial motor drives; general-purpose inverters Confirm gate/aux pinout and mechanical outline vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Gate/diode checked, continuity verified, baseplate flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We match the exact module variant and hardware to your frame for a drop-in fix.
