FE – 1MBI400S-120 – IGBT Power Transistor – Reclaimed Part

1MBI400S-120_1
EE
1MBI400S-120_1
EE

Manufacturer

OEM Part Number

1MBI400S-120

GPS Part Number

27-FUJ-1MBI400S-120

Categories

Tags

Price:

$110.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1200 V N/A 400 A N/A N/A N/A 400 grams
Voltage 1200 V
WPC N/A
Amp/H 400 A
Length N/A
Width N/A
Height N/A
Weight 400 grams

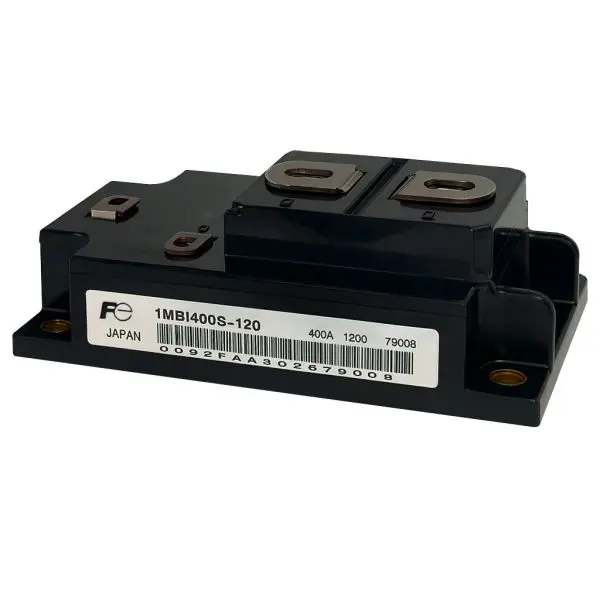

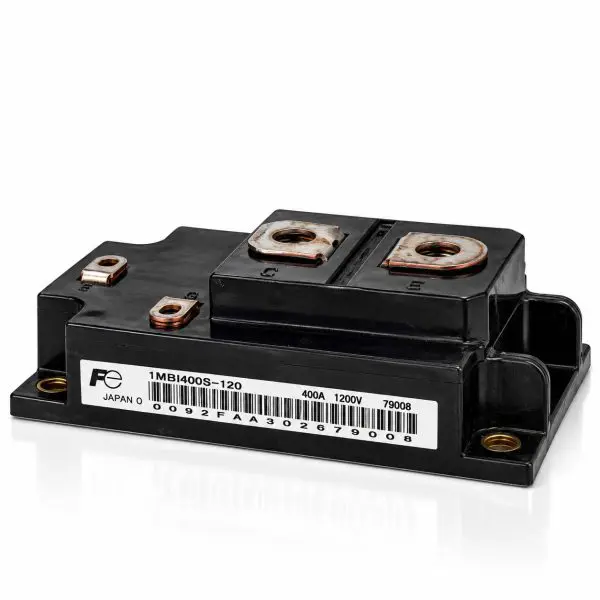

Fuji Electric — 1MBI400S-120 IGBT Module
1200 V •
400 A •
Single IGBT (1-pack) with antiparallel fast diode •
Isolated baseplate
What it is

1200 V, 400 A single IGBT module widely used in UPS bridges, motor drives, and high-power converters.
Low switching/conduction loss, fast free-wheel diode, and an isolated base simplify thermal and EMC design.

At-a-Glance
  • Voltage / Current: 1200 V / 400 A (module rating)
  • Topology: Single IGBT (1-pack) with antiparallel diode
  • Mounting: Screw-mount, isolated baseplate
  • Use Cases: UPS inverter/rectifier; industrial motor drives; DC-link choppers; welders/laser supplies
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • Low conduction loss — VCE(sat) (typ.) ≈ 2.3 V @ 400 A, 25 °C.
  • Rugged diode — Fast FWD with low VF and short trr for clean commutation.
  • Thermally efficient — RthJC ≈ 0.04 °C/W (IGBT), ≈ 0.12 °C/W (diode).
  • Service-friendly — Common Fuji S-series single-pack footprint.
Technical Specifications
Parameter Value
Manufacturer Fuji Electric
Part Number 1MBI400S-120
Device Type Single IGBT module (1-pack) with antiparallel diode
Collector-Emitter Voltage (VCES) 1200 V
Collector Current (IC) 400 A (module rating)
Power Dissipation (Ptot) ≈ 3.1 kW
VCE(sat) (typ.) ≈ 2.3 V @ VGE=15 V, IC=400 A (25 °C); ≈ 2.8 V @ 125 °C
Gate-Emitter Voltage (max) ±20 V
Capacitances (typ.) Cies ≈ 48 nF; Coes ≈ 10 nF; Cres ≈ 8.8 nF
Switching Times (typ.) ton ≈ 0.35 µs; toff ≈ 0.45 µs (VCC=600 V, IC=400 A, VGE=±15 V, RG=1.8 Ω)
Diode VF / trr (typ.) VF ≈ 2.3–3.0 V; trr ≈ 0.35 µs (IF=400 A)
Thermal Resistance RthJC(IGBT) ≈ 0.04 °C/W; RthJC(Diode) ≈ 0.12 °C/W
Isolation 2.5 kVRMS / 1 min (baseplate-to-terminals)
Operating Junction Range −40 °C to +150 °C (series typical)
Package / Footprint Approx. 108 × 62 × 35 mm, screw terminals
Configuration Single (1-pack)
Compatibility / Representative Uses
Module Applications Notes
1MBI400S-120 UPS inverter/rectifier bridges; high-power motor drives; energy-storage choppers; welding/laser power Verify gate/aux pinout and mechanical footprint vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Gate/diode checked, continuity verified, baseplate flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We match the exact module variant and hardware to your frame for a drop-in fix.
