$40.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 1600 V | 70 A | N/A | N/A | N/A | 225 g |
| Voltage | 1600 V |
| Amp/H | 70 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 225 g |

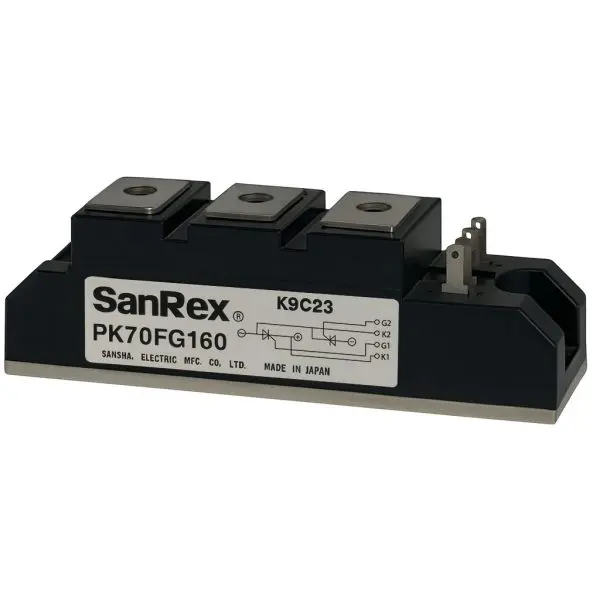

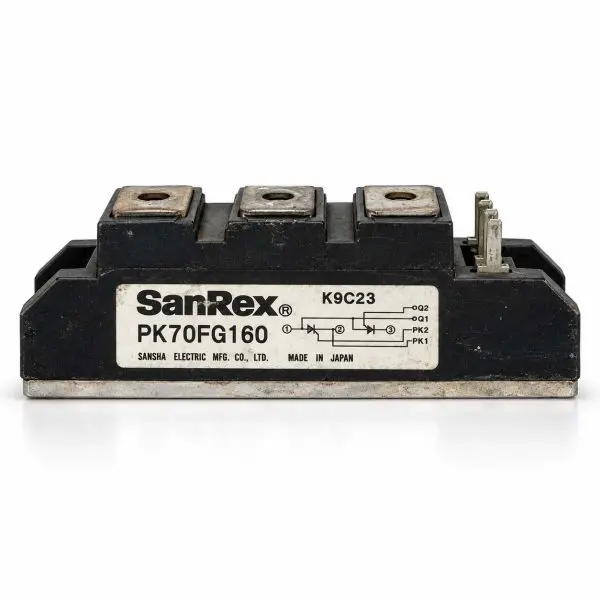

1.6 kV, 70 A dual SCR power module from the SanRex PK-FG series, intended for rectifiers and AC power control.
Two thyristors are connected in series inside an electrically insulated base package for easy heatsink mounting in compact stacks.
| Parameter | Value |
| Manufacturer | SanRex (Sansha Electric) |
| Part Number | PK70FG160 |
| Device Type | Dual SCR (series-connected phase leg) |
| Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) | 1600 V |
| Average On-State Current (IT(AV)) | 70 A (per module) |
| R.M.S. On-State Current (IT(RMS)) | 110 A (max) |
| Surge On-State Current (ITSM) | 1460/1600 A (50/60 Hz, one cycle) |
| Gate Trigger Current / Voltage | IGT ≤ 50 mA; VGT ≤ 3.0 V |
| Operating Junction Range | −40 °C to +125 °C (Tj) |
| Isolation (baseplate) | Insulated mounting base (PK70FG series) |
| Package / Footprint | PK70FG dual-SCR module; screw terminals; two mount holes |
| Configuration | Two SCRs in series (phase-leg) |
| Module | Applications | Notes |
| PK70FG160 | Rectifiers; motor & heater controls; dimmers; static switches | Verify series-leg wiring in your stack; observe ITSM and thermal limits. |
