FUJI ELECTRIC – 2MBI100NC-120 – IGBT Power Module – 1200V 100A – Reclaimed Part

Fuji Electric — 2MBI100NC-120 IGBT Power Module 1200 V • 100 A • Dual IGBT Half-Bridge • Integrated Freewheel Diodes • Isolated Baseplate

What it is

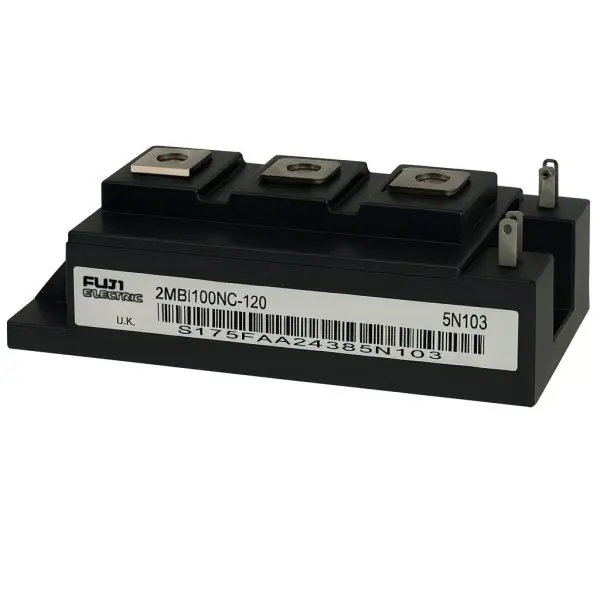

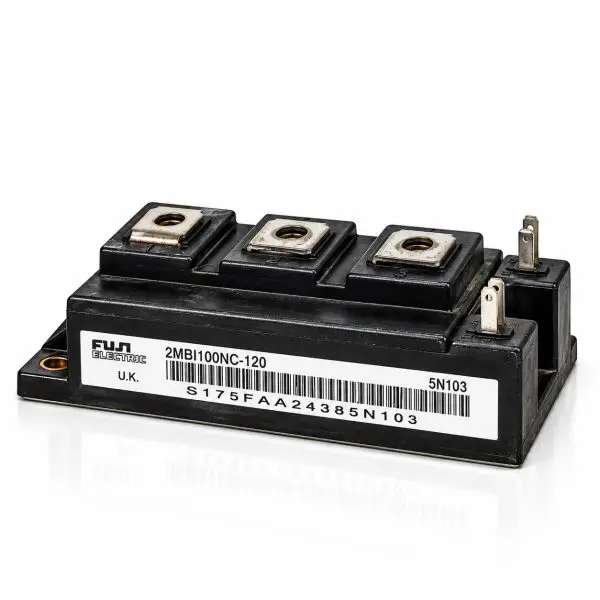

The Fuji Electric 2MBI100NC-120 is a 1200 V, 100 A dual IGBT power module incorporating two IGBTs and their associated antiparallel freewheel diodes in a 2-in-1 half-bridge configuration. Designed for high-power switching applications, the module provides a compact building block for inverter, converter and motor-control power stages.

The 2MBI100NC-120 combines high-voltage switching capability, fast freewheel diodes and an electrically isolated baseplate in a serviceable screw-terminal package. Typical applications include UPS inverter and rectifier stages, AC/DC servo systems, industrial motor drives, power converters and welding equipment.

At-a-Glance

• Voltage Rating: 1200 V
• Continuous Collector Current: 100 A
• Pulse Collector Current: 200 A
• Topology: Dual IGBT / 2-in-1 half-bridge
• Freewheel Diodes: Integrated antiparallel diodes
• Mounting: Screw-terminal module with isolated baseplate
• Applications: UPS systems; servo drives; industrial motor drives; inverters; converters; welding equipment
• Condition: Reclaimed part

Features

• 1200 V power switching — designed for high-voltage inverter and converter applications.
• 100 A current capability — supports demanding industrial power-conversion loads.
• 2-in-1 half-bridge — two IGBTs in one module reduce component count and simplify power-stage construction.
• Integrated fast freewheel diodes — provide the reverse-current paths required for inductive switching applications.
• Square RBSOA design — supports robust hard-switching operation within specified electrical and thermal limits.
• Isolated baseplate — simplifies heatsink mounting and electrical isolation.

Technical Specifications

Compatibility / Representative Uses
