EUPEC – TT142N16KOF – IGBT Power Transistor – Reclaimed Part

Manufacturer

OEM Part Number

TT142N16KOF

GPS Part Number

27-epu-TT142N16KOF

Tags

Price:

$83.00

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
1200 V 230 A N/A N/A N/A 310 grams
Voltage 1200 V
Amp/H 230 A
Length N/A
Width N/A
Height N/A
Weight 310 grams

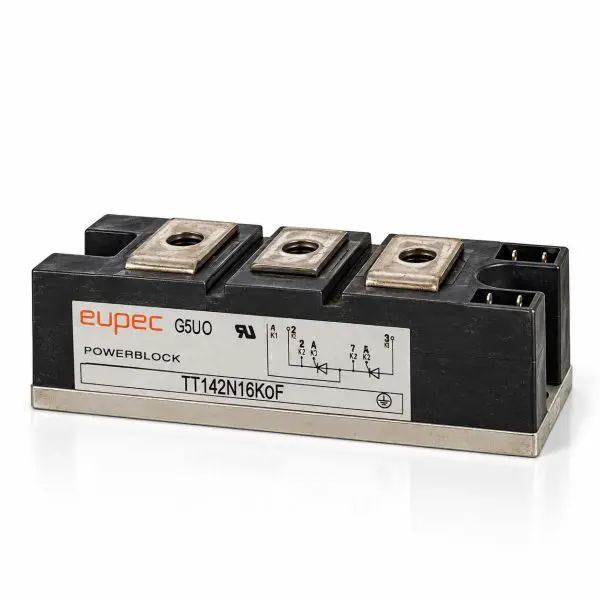

eupec / Infineon โ€” TT142N16KOF Thyristor Module
1600ย V โ€ข
142ย Aย ITAV โ€ข
Dual phase-control thyristors (inverse-parallel) โ€ข
Isolated baseplate
What it is

1600ย V dual phase-control SCR block in the compact ~94ย mm package. Rated 142ย A average per arm at
TC=85ย ยฐC with strong surge capability, commonly used in soft-starts, controlled rectifiers, AC regulators, and UPS front-ends.
The isolated baseplate and robust gate behavior simplify thermal design and maintenance.

At-a-Glance
  • Voltage / Current: 1600ย V class / 142ย A ITAV (per arm)
  • Topology: Dual thyristor (inverse-parallel), phase-control
  • Mounting: Screw-mount, isolated baseplate
  • Use Cases: Soft-starts; controlled rectifiers; AC regulators; UPS input bridges
  • Condition Options: NOS or tested reclaimed pulls
Features
  • High surge strength โ€” ITSM up to ~4.1ย kA (10ย ms).
  • Good commutation โ€” tq typ. ~200ย ยตs for line-commutated service.
  • Rugged dv/dt & di/dt โ€” โ‰ˆย 1000ย V/ยตs and โ‰ˆย 150ย A/ยตs (typical ratings).
  • Service-friendly footprint โ€” ~94ย ร—ย 34ย ร—ย 30ย mm body with M6 power terminals.
Technical Specifications
Parameter Value
Manufacturer eupec / Infineon Technologies
Part Number TT142N16KOF
Device Type Dual phase-control thyristor module (inverse-parallel)
Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) 1600ย V
RMS On-State Current (ITRMSM) โ‰ˆย 230ย A
Average On-State Current (per arm) ITAVM = 142ย A @ TC=85ย ยฐC
Surge On-State Current (10ย ms) ITSM โ‰ˆย 4.1ย kA
Iยฒt (10ย ms) โ‰ˆย 84ย kAยฒยทs
Circuit-Commutated Turn-off Time (tq) typ. ~200ย ยตs
Critical dv/dt โ‰ˆย 1000ย V/ยตs (classย F)
Critical di/dt โ‰ˆย 150ย A/ยตs
On-State Voltage (vT) max ~1.5โ€“1.6ย V @ iT=500ย A
Thermal RthJC โ‰ˆย 0.22ย ยฐC/W per arm
Operating Junction / Case Tvj โˆ’40โ€ฆ+125ย ยฐC; TC,max per datasheet curves
Package / Footprint ~94ย ร—ย 34ย ร—ย 30ย mm; M6 power terminals
Configuration Dual (two SCRs, inverse-parallel)
Compatibility / Representative Uses
Module Applications Notes
TT142N16KOF Soft-starts; controlled rectifiers; AC voltage regulators; UPS input bridges Verify gate/aux pinout and mechanical stack-up vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock โ€” Gate behavior verified, continuity checked, baseplate flatness inspected.
  • Traceability โ€” Each module labeled with a work-order ID for service history confidence.
  • UPS expertise โ€” We help match the exact variant and hardware to your frame for a drop-in fix.
Gruber Power Services
