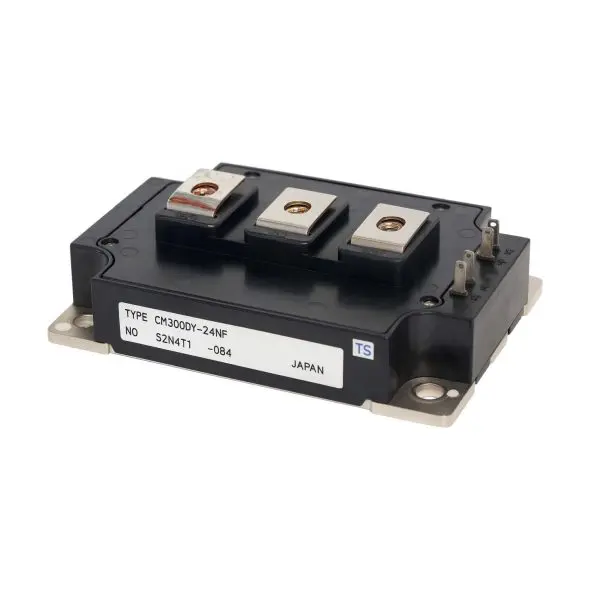

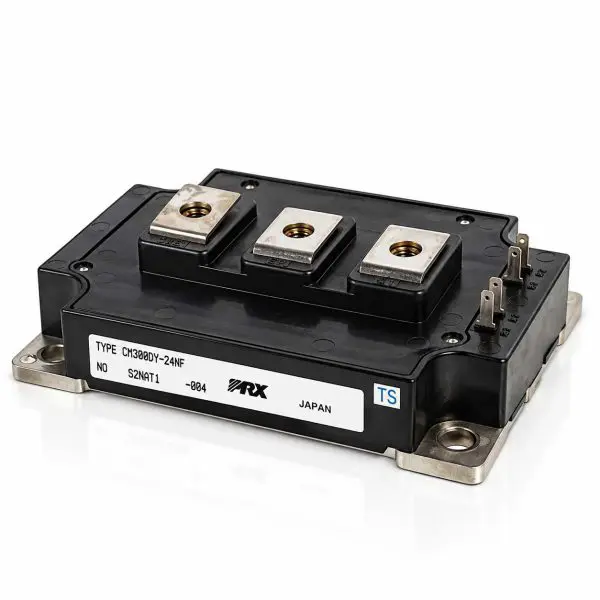

Mitsubishi / Powerex – CM300DY-24NF – IGBT Power Transistor – Reclaimed Part

5676d8d1-e30e-49ca-92df-e8f478ec6328 copy
EE
5676d8d1-e30e-49ca-92df-e8f478ec6328 copy
EE

Manufacturer

,

OEM Part Number

CM300DY-24NF

GPS Part Number

27-PRX-CM300DY-24NF

Categories

Tags

Price:

$235.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1200 VAC N/A 300 A N/A N/A N/A 1LB – 1.2LB
Voltage 1200 VAC
WPC N/A
Amp/H 300 A
Length N/A
Width N/A
Height N/A
Weight 1LB – 1.2LB
Mitsubishi Electric / Powerex — CM300DY-24NF IGBT Power Module
1200 V • 300 A • Dual IGBT half-bridge with antiparallel fast-recovery diodes • Isolated baseplate • Reclaimed Part
What it is

The Mitsubishi Electric / Powerex CM300DY-24NF is a high-power 1200 V, 300 A dual IGBT module configured as a complete half-bridge. Two power IGBTs and their associated antiparallel fast-recovery diodes are integrated into a rugged, electrically isolated module designed for demanding industrial power-conversion equipment.

This module is well suited for UPS inverter and rectifier stages, variable-frequency drives, industrial motor controls, DC-link choppers, welding equipment, laser power supplies, and other high-current switching systems. The half-bridge configuration reduces external interconnections while providing the upper and lower switching devices required by many inverter designs.

The isolated baseplate allows the CM300DY-24NF to be mounted to a properly prepared heatsink while maintaining electrical isolation between the power semiconductor circuit and cooling assembly. Its combination of high blocking voltage, substantial current capability, fast diode recovery, and low conduction loss makes it particularly useful for maintaining legacy critical-power equipment.

For replacement applications, always match the complete CM300DY-24NF part number. Similar Mitsubishi CM300-series modules may share a general package style while differing in voltage rating, semiconductor generation, switching characteristics, terminal arrangement, auxiliary connections, or thermal specifications.

At-a-Glance
  • Manufacturer: Mitsubishi Electric / Powerex
  • Part Number: CM300DY-24NF
  • Voltage / Current: 1200 V / 300 A
  • Topology: Dual IGBT half-bridge with antiparallel fast-recovery diodes
  • Configuration: Two IGBTs in a half-bridge arrangement
  • Mounting: Chassis/heatsink mount with isolated baseplate
  • Use Cases: UPS inverter/rectifier stages; industrial drives; DC-link choppers; welding and laser power supplies
  • Condition: Reclaimed Part
Features
  • High-power switching — 1200 V blocking capability with a 300 A current class for demanding converter applications.
  • Integrated half-bridge — Two IGBTs in one module reduce external power connections and simplify inverter construction.
  • Low conduction loss — Low VCE(sat) helps reduce heat generation during high-current operation.
  • Fast free-wheel diodes — Integrated antiparallel diodes support clean commutation with inductive loads.
  • Isolated baseplate — Simplifies heatsink integration and electrical grounding strategy.
  • Industrial construction — Designed for continuous-duty power electronics and high-reliability converter systems.
  • Legacy equipment support — Useful for repairing UPS systems and industrial equipment originally designed around Mitsubishi/Powerex modules.
Technical Specifications
Parameter Value
Manufacturer Mitsubishi Electric / Powerex
Part Number CM300DY-24NF
Device Type Dual IGBT half-bridge with antiparallel fast-recovery diodes
Collector-Emitter Voltage (VCES) 1200 V
Collector Current (IC) 300 A class
Circuit Configuration Two IGBTs connected as a half-bridge
Free-Wheel Diodes Integrated antiparallel fast-recovery diode for each IGBT
VCE(sat) Approximately 2.1 V typical at rated-current test conditions
Gate-Emitter Voltage High-power IGBT gate-drive interface; verify allowable drive limits before installation
Operating Junction Temperature Up to approximately +150 °C
Mounting / Baseplate Screw/chassis mount with electrically isolated baseplate
Package Class Large-format Mitsubishi dual IGBT power module
Configuration Dual / half-bridge
Condition Reclaimed Part
Compatibility / Representative Uses
Module Applications Replacement Notes
CM300DY-24NF UPS inverter/rectifier bridges; high-power motor drives; DC-link choppers; industrial inverters; welding and laser power supplies Verify the complete part number, gate and auxiliary connections, terminal arrangement, mounting footprint, electrical ratings, and thermal requirements against the original equipment before substitution.
Why Buy from Gruber
  • Power electronics expertise — Experience supporting IGBT modules used in UPS systems, industrial inverters, motor drives, and critical-power equipment.
  • Hard-to-find legacy components — Reclaimed Mitsubishi and Powerex modules provide an option for maintaining equipment when original semiconductor assemblies are obsolete or difficult to source.
  • Tested reclaimed modules — Gate/diode behavior, junction continuity, terminal condition, isolation, and baseplate condition can be evaluated prior to resale.
  • Traceability — Modules can be tracked through our service and inventory process for added replacement confidence.
  • Replacement assistance — We can help compare the exact module variant, electrical ratings, pinout, mounting footprint, and cooling requirements for legacy equipment repair.
