FUJI ELECTRIC – 2MBI200N-060 – IGBT Power Module – 600V 200A – Reclaimed Part

Fuji Electric — 2MBI200N-060 IGBT Power Module 600 V • 200 A • Dual IGBT Half-Bridge • Integrated Freewheel Diodes • Isolated Baseplate

What it is

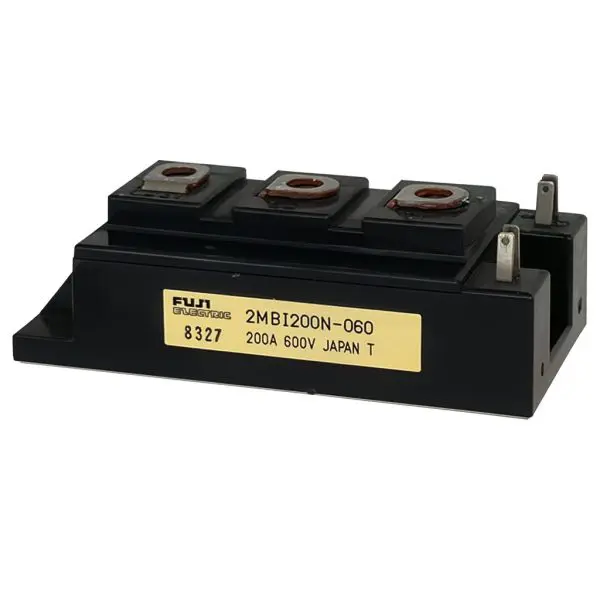

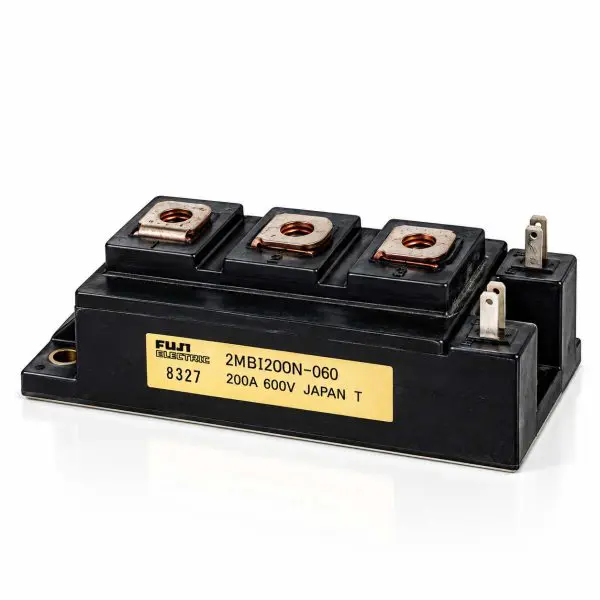

The Fuji Electric 2MBI200N-060 is a 600 V, 200 A dual IGBT power module incorporating two IGBTs and their associated antiparallel freewheel diodes in a 2-in-1 half-bridge configuration. It is designed for high-current switching in industrial inverter, converter and motor-control applications.

The N-series construction combines high-speed switching, a low-inductance internal structure and an electrically isolated baseplate in a compact screw-terminal package. Typical applications include UPS inverter and rectifier stages, AC/DC servo systems, industrial motor drives, DC choppers, welding equipment and other high-power conversion systems.

At-a-Glance

• Voltage Rating: 600 V
• Continuous Collector Current: 200 A
• Pulse Collector Current: 400 A
• Topology: Dual IGBT / 2-in-1 half-bridge
• Freewheel Diodes: Integrated antiparallel diodes
• Mounting: Screw-terminal module with isolated baseplate
• Applications: UPS systems; servo drives; industrial motor drives; inverters; choppers; welding equipment
• Condition: Reclaimed part

Features

• High-current switching — 200 A continuous collector-current rating for demanding industrial power stages.
• 2-in-1 half-bridge — two IGBTs in one module simplify inverter and converter construction.
• Square RBSOA — designed for robust hard-switching operation within specified electrical and thermal limits.
• Integrated freewheel diodes — provide reverse-current paths for inductive loads and bridge applications.
• Low-inductance construction — helps control switching transients and improve high-current switching performance.
• Isolated baseplate — simplifies heatsink installation and electrical isolation.

Technical Specifications

Compatibility / Representative Uses
