$6,500.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208/120 | N/A | 39.5" | 33.6" | 77.6 | 1235 |
| Voltage | 208/120 |
| Amp/H | N/A |
| Length | 39.5" |
| Width | 33.6" |
| Height | 77.6 |
| Weight | 1235 |

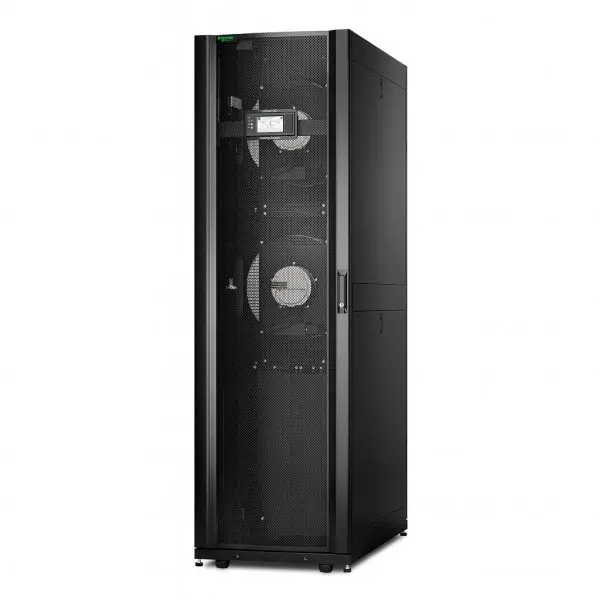

The APC ACRD600 is a high-performance InRow chilled water unit engineered for precision cooling at the rack level. Designed for medium to large data centers, it delivers scalable and energy-efficient cooling by placing capacity right where the heat is—at the source. Its compact footprint and modular integration make it ideal for dynamic, high-density environments. These are brand new, factory-sealed units ready for mission-critical deployment.
| Category | Detail |
|---|---|
| Cooling Capacity | Approx. 30–40kW (chilled water dependent) |
| Input | 208–240V, 50/60Hz, 1-phase (control power) |
| Chilled Water | Supply/return connection; adjustable flow rates; requires facility chiller system |
| Airflow | Front-to-rear airflow; variable speed fans; close-coupled row cooling |
| Controls & Monitoring | Integrated display; network management capability; rack temperature sensors |
| Physical | 1991H × 300W × 1070Dmm (78.4″ × 11.8″ × 42.1″); ~225kg (496lb) |
| Environment | Operating 0–35°C; 0–95% RH (non-condensing) |
| Accessory | Model | Notes |
|---|---|---|
| Temperature & Humidity Sensors | ACRC-SENS | Rack-level monitoring integration |
| Network Management Card | APC NMC | SNMP/Modbus monitoring and control |
