Manufacturer
OEM Part Number
GPS Part Number
Categories
$15.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 277 V | 15 A | 0.8" | 1.9" | 2.5" | 0.11 lb |
| Voltage | 277 V |
| Amp/H | 15 A |
| Length | 0.8" |
| Width | 1.9" |
| Height | 2.5" |
| Weight | 0.11 lb |

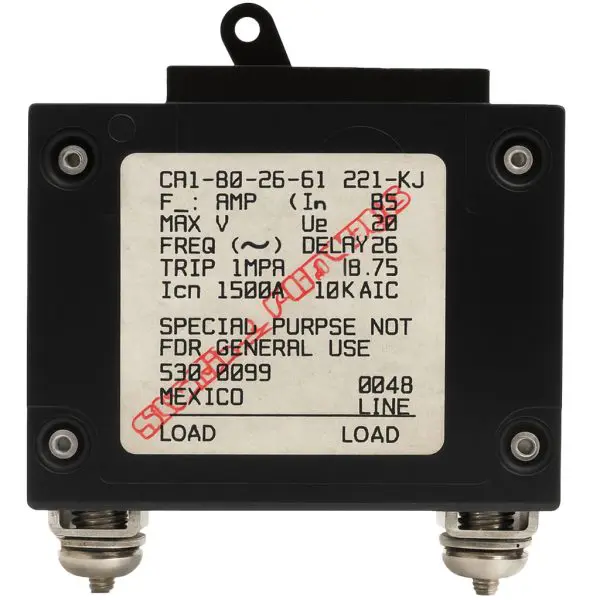

Genuine Carling C-Series hydraulic-magnetic circuit breaker, cleaned, inspected, and shop-tested. Long-delay “26” curve provides robust motor/high-inrush tolerance with precise, temperature-stable protection.
| Parameter | Detail |
|---|---|
| Manufacturer | Carling Technologies |
| Series / style | C-Series hydraulic-magnetic, panel-mount |
| Poles | 1 pole (single-pole break) |
| Current rating (In) | 15 A |
| Voltage ratings | 277 V AC (50/60 Hz) • 80 V DC |
| Delay curve | Delay 26 — 50/60 Hz long-delay (holds 100% In; must trip ≥125% In per curve) |
| Trip technology | Hydraulic-magnetic (inverse-time; trip-free; temperature-stable) |

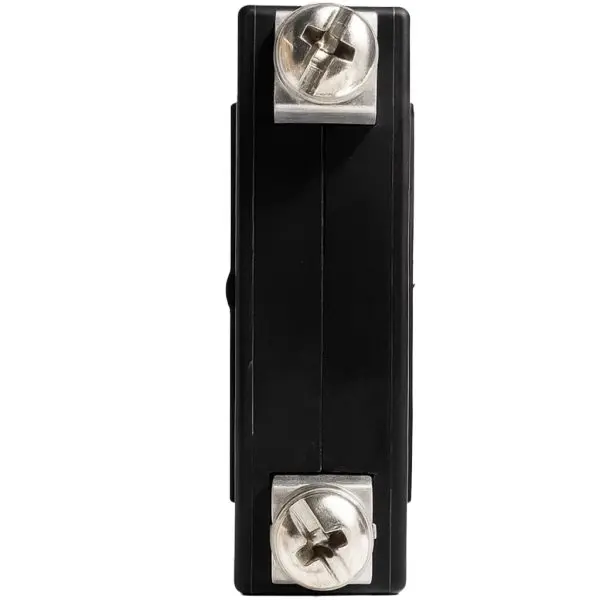

| Terminations | Screw 10-32 back-connect (typ. C-Series); other stud/QC options exist by code |

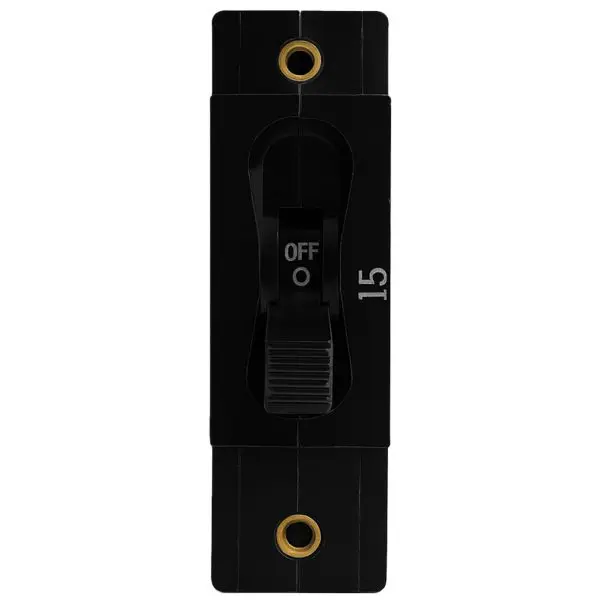

| Actuator | Handle / toggle (rocker variants available by code) |
| Mounting | Panel mount; 6-32 × 0.195 in threaded inserts (standard rocker bezel) |
| Dimensions (H × W × D) | 63.5 mm × 47.0 mm × 19.18 mm (2.5 in × 1.9 in × 0.8 in) |
| Weight | 0.25 lb (≈ 0.11 kg) |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL 489 Listed / cULus; IEC/EN 60947-2 (per variant) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, Delay-26 function verified; intact labels; ready to install | 90-Day |
