$1,492.56
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 110 – 1000 V | N/A | 400 A | 9" | 8" | 11" | 25 lbs |
| Voltage | 110 – 1000 V |
| WPC | N/A |
| Amp/H | 400 A |
| Length | 9" |
| Width | 8" |
| Height | 11" |
| Weight | 25 lbs |

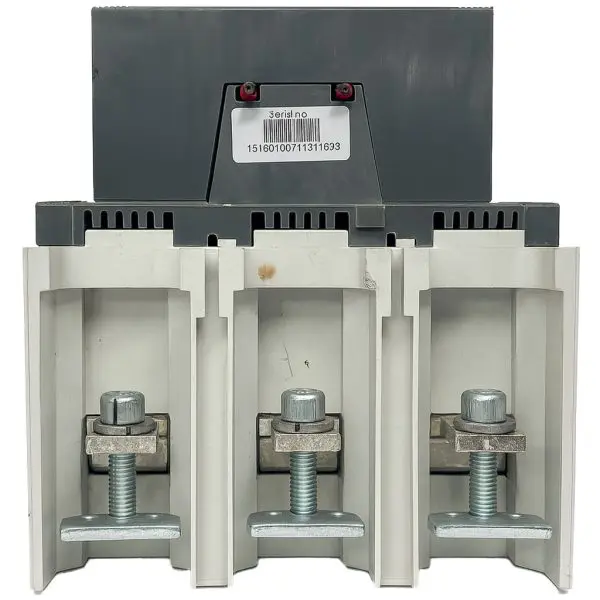

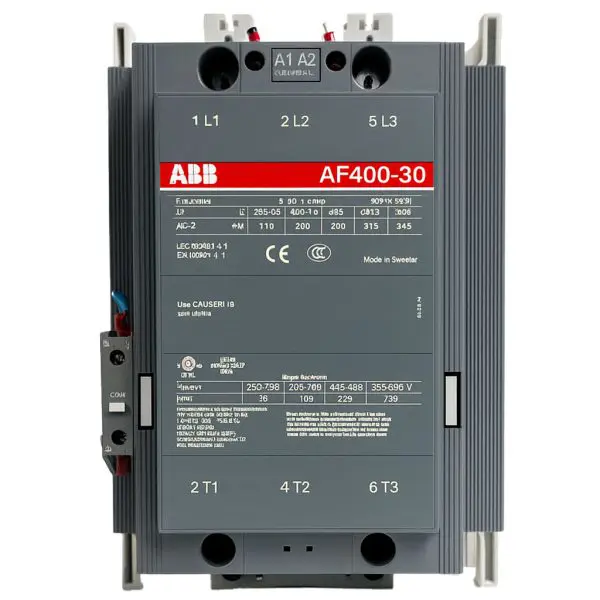

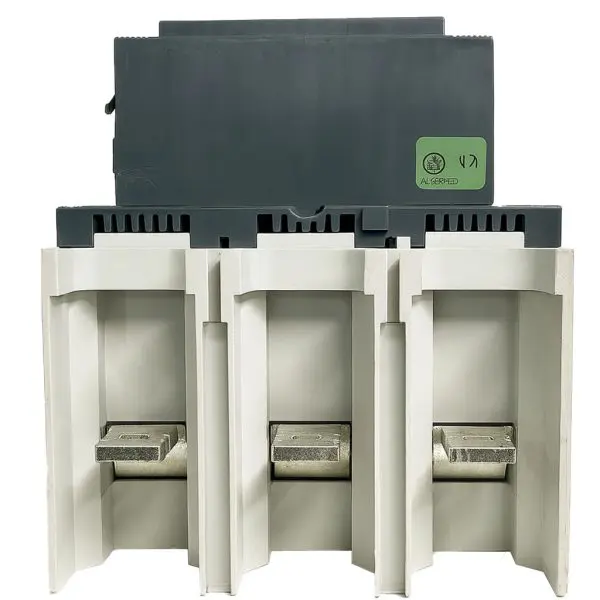

Genuine ABB AF-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AF400-30 (“-30” = 3 NO main; typical aux “-11” = 1 NO + 1 NC) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | AC-3: 400 A @ 380/400/415 V; 350 A @ 690 V; 155 A @ 1000 V (55 °C). AC-1 thermal Ith 600 A. |
| Rated operational power (Pe) | AC-3: 110 kW @ 220/230/240 V • 200 kW @ 380/400 V • 220 kW @ 415/440 V • 250 kW @ 500 V • 315 kW @ 690 V • 220 kW @ 1000 V |
| Rated operational voltage (Ue) | Up to 1000 V AC (IEC); 600 V UL. Ui 1000 V; Uimp 8 kV. |
| Control circuit (coil) | Wide-range electronic coil 100–250 V AC/DC (code “-70”); other ranges available (e.g., 48–130 V AC/DC “-71”). Built-in surge suppression. |
| Poles & auxiliaries | 3 main NO; typical auxiliaries 1 NO + 1 NC (suffix “-11”) |
| Terminations | Main circuit bars; main terminals IP00, coil terminals IP20 |
| Mounting | Panel mount (AF400 frame) |
| Dimensions (H × W × D) | 278 mm × 186 mm × 216 mm (10.95 in × 7.33 in × 8.50 in) |
| Weight | 10.6 kg (~23.4 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
