$885.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 115 Volt | 1.6 Amps | N/A | N/A | N/A | 6 lbs |
| Voltage | 115 Volt |
| Amp/H | 1.6 Amps |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 6 lbs |

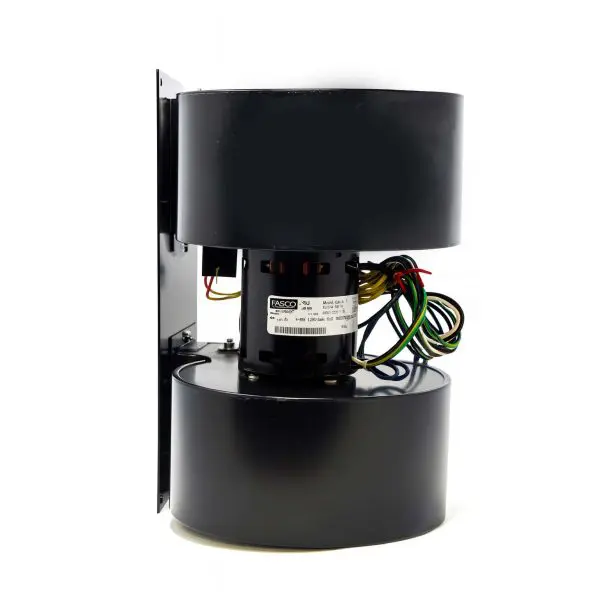

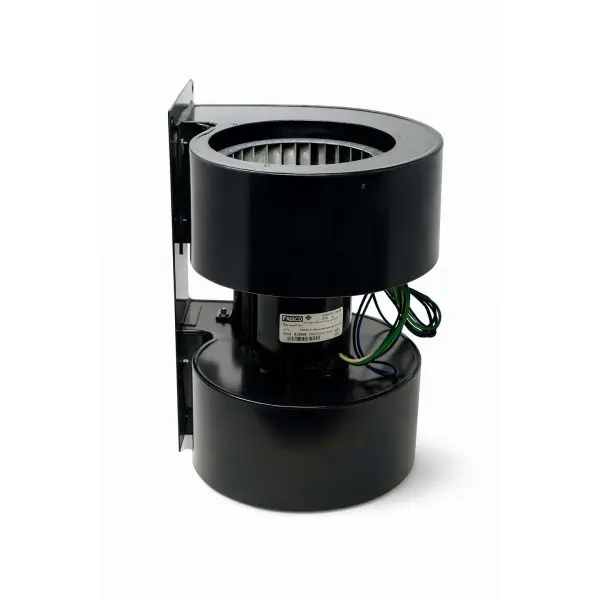

OEM-style dual-inlet centrifugal blower used in select Liebert UPS cabinets and air plenum assemblies. Restores designed airflow across heat-sinks and power electronics. 115 VAC unit with thermally protected, sealed ball-bearing motor; supplied new with a 1 year warranty.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine OEM cooling fan — factory-sealed; covered by the full manufacturer warranty. |
1‑Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, bearings evaluated for drag; cleaned and lightly lubricated. |
90‑Day
|
| Parameter | Detail |
| Part Numbers / X-Refs | Fasco 71902460 · McLean PR595-1 · Assy 04-04921 Rev C00 · Motor type U90B1 |
| Form Factor | Dual-inlet (double) centrifugal blower assembly (“squirrel-cage”) |
| Nominal Voltage | 115 V AC (50/60 Hz) |
| Current (rated) | 1.6 A @ 50 Hz / 1.4 A @ 60 Hz |
| Speed (typ.) | ≈ 1300 RPM @ 50 Hz / ≈ 1600 RPM @ 60 Hz |
| Motor / Bearings | Thermally protected; sealed ball bearings |
| Approx. Dimensions (assembly) | ~13.5 L × 10 D × 8.5 H in (≈ 343 × 254 × 216 mm) |
| Warranty | 1 Year |
| System Family | Notes |
| Legacy Liebert UPS cabinets (select models) | Used as a dual-inlet blower in UPS cooling plenums. Verify match by P/Ns (71902460 / PR595-1 / 04-04921) and mechanical envelope/harness orientation before install. |
