$14.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 3.15" | 0.98" | 3.15" | 1.2 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 3.15" |
| Width | 0.98" |
| Height | 3.15" |
| Weight | 1.2 lbs |

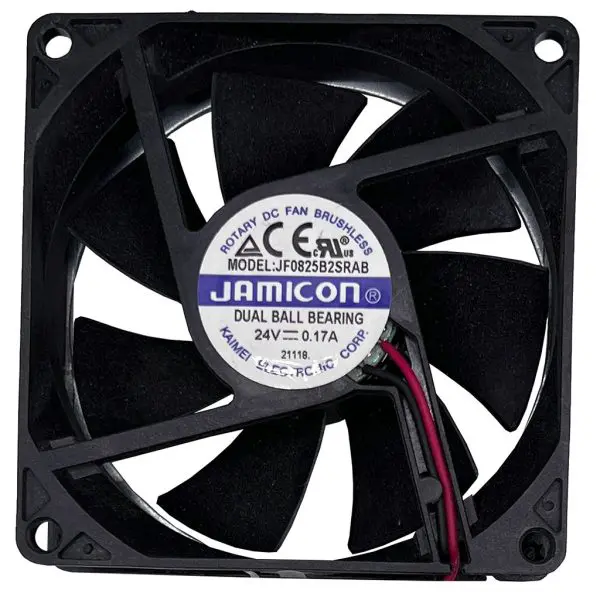

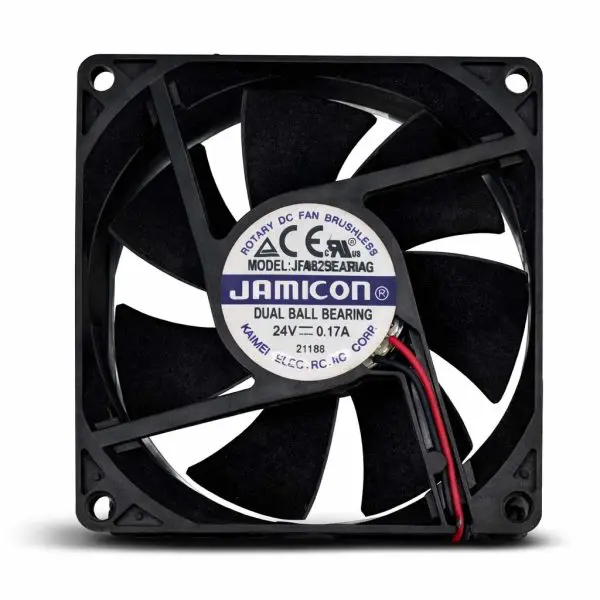

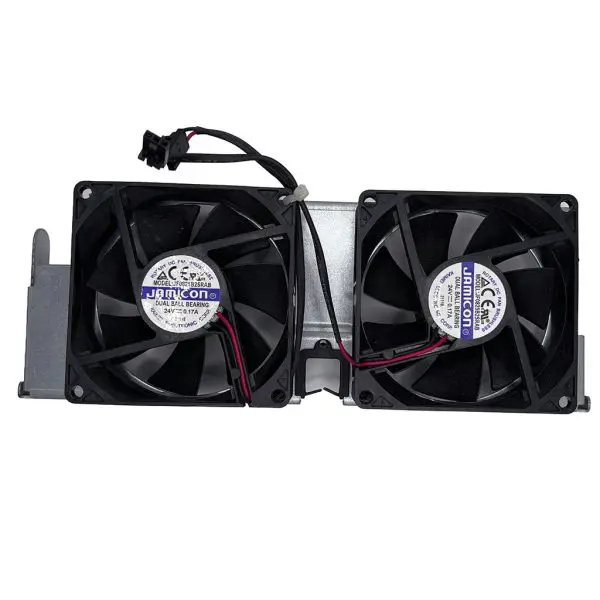

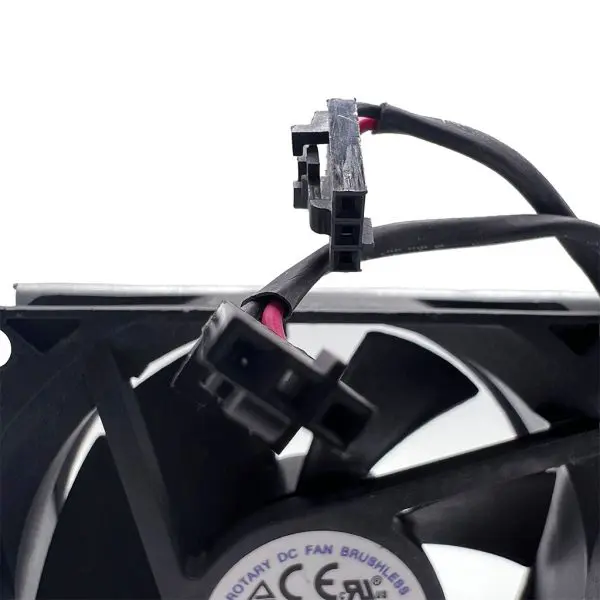

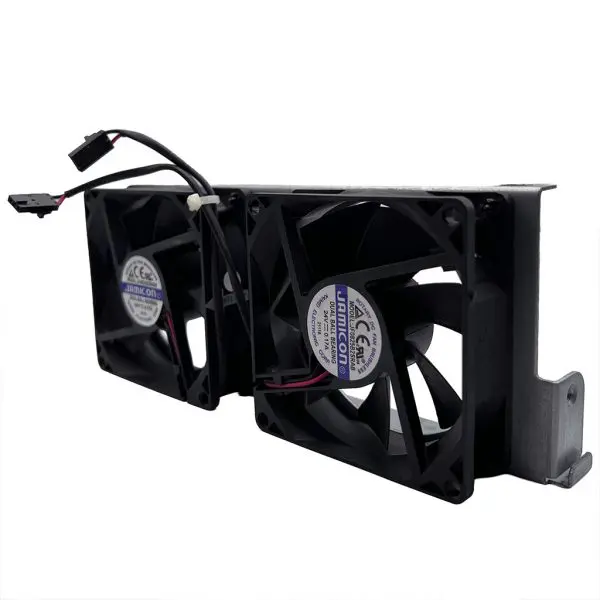

Axial fan from Jamicon (Kaimei Electronics) for UPS and industrial electronics cooling. Direct-fit replacement when the JF0825B2SRAB model is specified, using the standard 80 mm class frame and ball-bearing construction.
Built for continuous duty with stable airflow and dependable bearings to keep power components in their optimal temperature range.
Common in UPS and power-conversion chassis requiring 80 × 80 × 25 mm DC axial fans.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine Jamicon fan — factory-sealed and covered by full manufacturer warranty. |
1-Year
|
| Tested | Operationally verified pull from a working system; bearings inspected, cleaned, and rotation/airflow confirmed. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Power | Connector | Application |
| JF0825B2SRAB | ≈ 3.15 × 0.98 × 3.15 in | 24 V DC | ≈ 45 CFM | ≈ 3.8 W | Lead wires / 2-wire | UPS / electronics cooling |
| Part # | Compatible Models / Use Cases | Notes |
| JF0825B2SRAB | UPS, inverter, and control chassis requiring 80 mm (3.15 in) DC axial fan | Confirm mounting pattern and 24 V DC supply; SR speed grade with ball bearings. |
