Manufacturer
OEM Part Number
GPS Part Number
Categories
$149.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 10" | 10" | 3.5" | 4.40lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 10" |
| Width | 10" |
| Height | 3.5" |
| Weight | 4.40lbs |

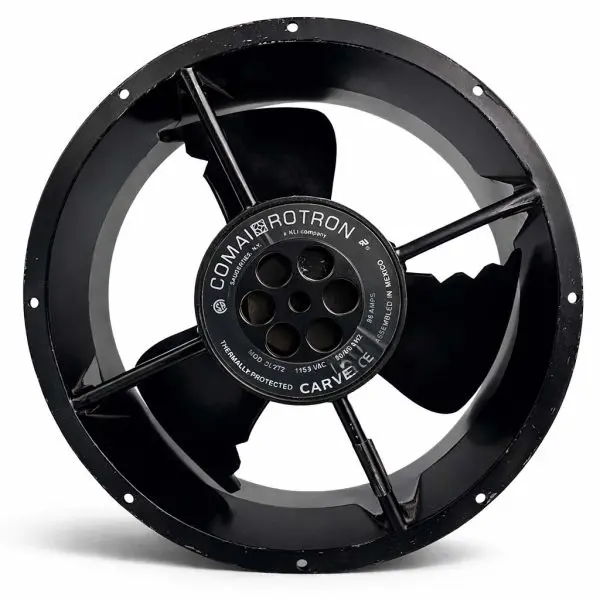

Heavy-duty AC axial fan from COMAIR ROTRON, Caravel series, model CL2T2. Commonly used in UPS and industrial power systems for high-volume cabinet and chassis cooling. Direct-fit drop-in replacement when a 10-inch Caravel-class 115Â VAC fan is specified.
This round-frame fan is approximately 254Â mm diameter Ă— 89Â mm deep (10.0 Ă— 3.5Â in), designed for continuous duty at around 1650Â RPM, with high airflow and static pressure to keep power components within their optimal operating range.
Ideal for UPS, inverter, and power-conversion assemblies that call out CL2T2, CLE2T2, or P/N 020189. Standard Caravel mounting pattern and solder-terminal connection simplify field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine COMAIR ROTRON Caravel CL2T2 fan — factory-fresh stock; covered by full manufacturer or Gruber-backed replacement warranty. |
1-Year
|
| Tested | Operationally verified pull from a functioning system; rotation, noise level, and current draw checked; fan cleaned and terminals inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| CL2T2 (Caravel, P/N 020189 / CLE2T2 family) | Round frame, Ă˜ 254 mm Ă— 89 mm deep (10.0 Ă— 3.5 in) | 115 VAC, 50/60 Hz, ≈ 0.50 A, 61 W | Max ≈ 525 CFM @ 0 in Hâ‚‚O; up to 0.331 in Hâ‚‚O static pressure | 2 solder terminals, ball-bearing Caravel AC construction | UPS / inverter / industrial electronics cabinet cooling |
| Part # | Compatible Models | Notes |
| CL2T2 (Caravel) | UPS and industrial power systems requiring COMAIR ROTRON Caravel CL2T2 / CLE2T2 or equivalent 10-inch (254Â mm) axial AC fan | Verify by exact P/N (CL2T2, CLE2T2, 020189), frame size, 115Â VAC rating, airflow, mounting pattern, and termination style before substituting in an OEM assembly. |
