$1,200.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208 Volts | 10 kVA | 37" | 26" | 15" | 70 lbs |
| Voltage | 208 Volts |
| Amp/H | 10 kVA |
| Length | 37" |
| Width | 26" |
| Height | 15" |
| Weight | 70 lbs |

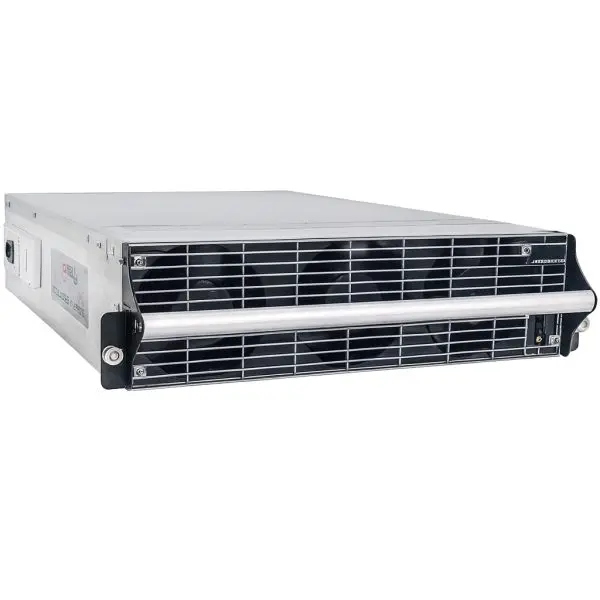

This 10 kW Power Module, APC PN — SYPM10KF2, is available in either completely refurbished or tested versions.
As a four-decade industry veteran, Gruber Power
pioneered the refurbishment of critical power equipment modules like this.
Our meticulous testing processes by EE staff include full load bank testing in our UPS Depot Operations,
simulating worst-case conditions to validate proper operation under real-world loads.
Backed by our full 90 Day Warranty, this fully tested power module
delivers dependable performance and peace of mind for mission-critical
APC Symmetra PX systems.
| Option | Description | Warranty |
|---|---|---|

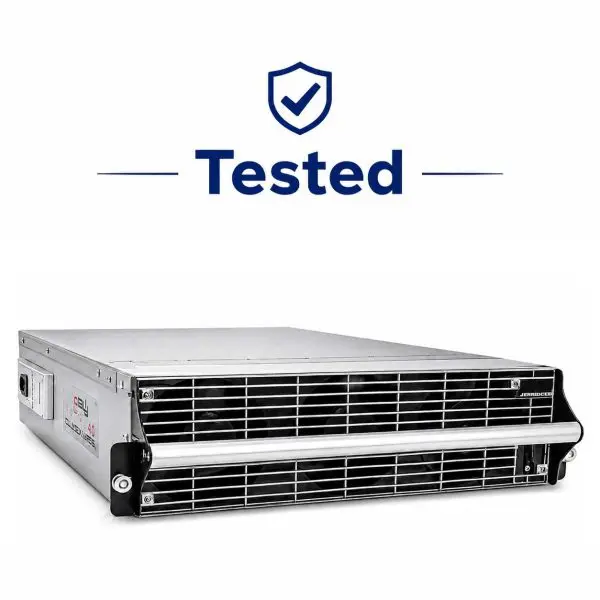

| Tested |
Operationally verified power module. Passed load bank testing and QC inspection without component-level refurbishment. |
90‑Day
|
| Refurbished | Fully rebuilt with new capacitors, fans, and other wear items. Reconditioned to like-new performance and appearance. |
1‑Year
|
| UPS Model | Form Factor | Compatible Power Module | Std. Modules | Max Modules | Usable kW |
|---|---|---|---|---|---|
| SY10K40F | PX 208 V cabinet | SYPM10KF (10 kW) | 1 | 5 | 10 → 40 (N+1 @ 5) |
| SY20K40F | PX 208 V cabinet | SYPM10KF | 2 | 5 | 20 → 40 (N+1 @ 5) |
| SY40K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 4 | 9 | 40 → 80 (N+1 @ 9) |
| SY50K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 5 | 9 | 50 → 80 (N+1 @ 9) |
| SY80K80F | PX 208 V cabinet (Premium XR) | SYPM10KF | 8 | 9 | 80 → 80 (N+1 @ 9) |
| SY40K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 4 | 10 | 40 → 100 |
| SY50K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 5 | 10 | 50 → 100 |
| SY80K100F | PX 208 V cabinet | SYPM10KF / SYPM10KF2 | 8 | 10 | 80 → 100 |
Notes: SYPM10KF is a 208 V, 3-phase 10 kW module used across Symmetra PX
20/40/80/100 kW families; it was discontinued and superseded by SYPM10KF2.
The 40→80 kW cabinets reach N+1 at nine modules; 100 kW frames support up to ten modules.
