$714.25
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| N/A | N/A | N/A | 19.25" | 8.25" | 2.25" | 7.01 lbs |
| Voltage | N/A |
| WPC | N/A |
| Amp/H | N/A |
| Length | 19.25" |
| Width | 8.25" |
| Height | 2.25" |
| Weight | 7.01 lbs |

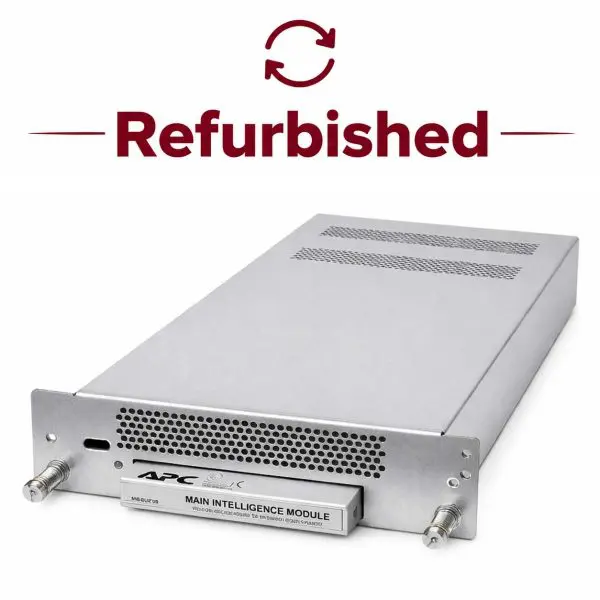

The APC SYMIM is the original Main Intelligence Module (MIM) used in early Symmetra Power Array 1:1 UPS systems. It functions as the central controller, managing runtime, load distribution, alarms, and system status.
As a legacy module, the SYMIM was superseded by the SYMIM2, which offers broader compatibility with both 1:1 and 3:1 Symmetra Power Array UPS systems. The SYMIM is not compatible with 3:1 systems and should only be used for 1:1 configurations.
Like newer intelligence modules, the SYMIM is hot-swappable, allowing replacement without shutting down the UPS. Refurbished units include a 1-year replacement warranty.
| Specification | Details |
|---|---|
| Part Number | SYMIM (legacy) |
| Compatibility | Symmetra Power Array 1:1 (legacy only) |
| Function | Main Intelligence Module (MIM) |
| Hot-Swappable | Yes |
| Physical (H×W×D, Weight) | 2.26 in (57 mm) × 8.26 in (210 mm) × 19.26 in (489 mm); 7.00 lbs (3.18 kg) |
| Warranty | 1 Year Replacement (Extended available) |
