$685.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| N/A | N/A | 19.25" | 8.25" | 2.25" | 7.01 lbs |
| Voltage | N/A |
| Amp/H | N/A |
| Length | 19.25" |
| Width | 8.25" |
| Height | 2.25" |
| Weight | 7.01 lbs |

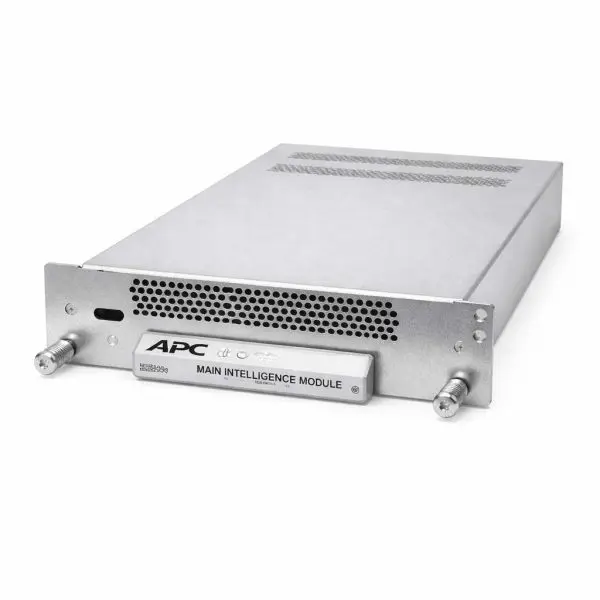

The APC SYMIM2 is the Main Intelligence Module (MIM) for Symmetra Power Array UPS systems. Acting as the brain of the UPS, it manages power distribution, runtime calculations, alarm notifications, and overall system integrity.
Engineered for continuous availability, the SYMIM2 monitors system performance and coordinates all power and battery modules. It is typically installed with a Redundant Intelligence Module (SYRIM2) for failover protection and N+1 redundancy.

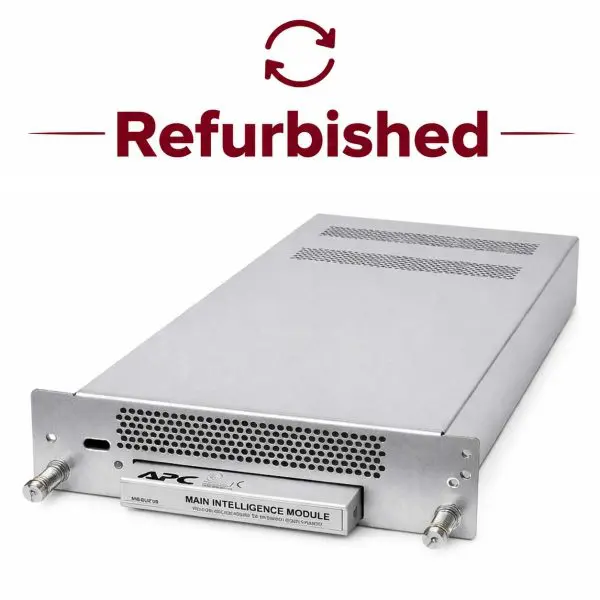

This module is fully hot-swappable, allowing replacement or upgrade without shutting down the UPS system. Refurbished units include a 1-year replacement warranty.
| Specification | Details |
|---|---|
| Part Number | SYMIM2 |
| Compatibility | Symmetra Power Array 4–16 kVA (1:1 & 3:1 systems) |
| Function | Main Intelligence Control Module (MIM) |
| Hot-Swappable | Yes |
| Physical (H×W×D, Weight) | 2.26 in (57 mm) × 8.26 in (210 mm) × 19.26 in (489 mm); 7.00 lbs (3.18 kg) |
| Warranty | 1 Year Replacement (Extended available) |
