APC – AP8641 – NEW PDU – Tested

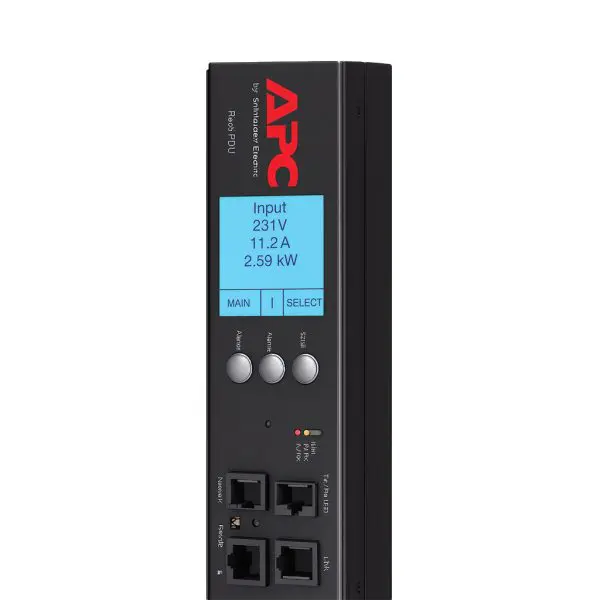

AP8641 CLOSE UP

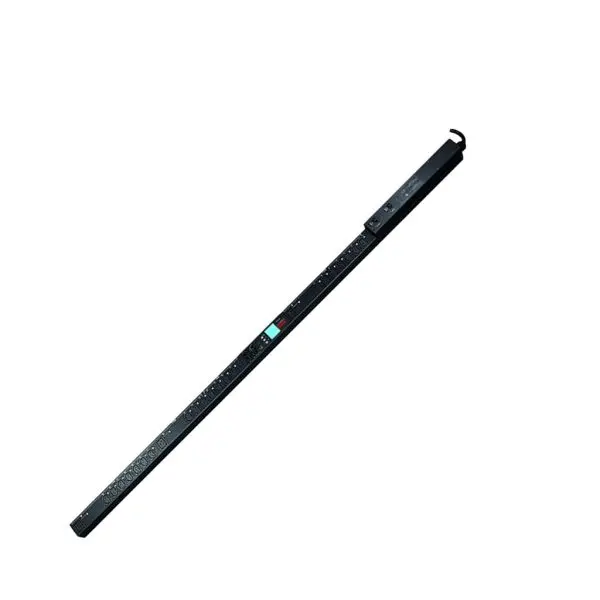

AP8641

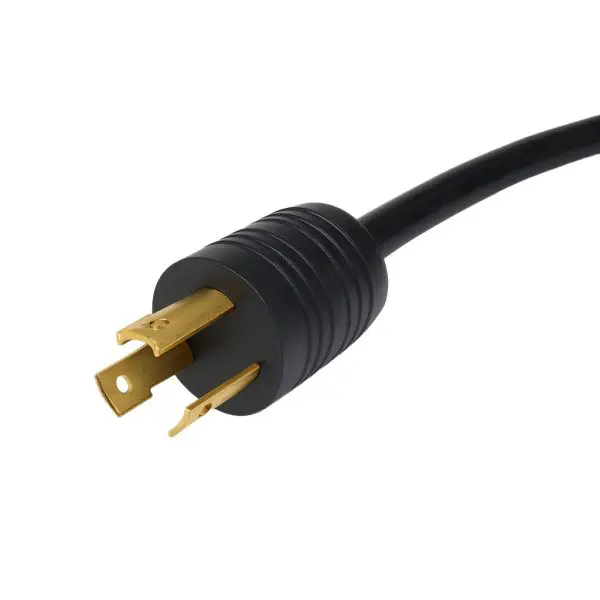

AP8641 PLUG
EE
90 Day
AP8641 CLOSE UP
AP8641
AP8641 PLUG
EE
90 Day

Manufacturer

OEM Part Number

AP8641

GPS Part Number

AP8641

Categories

Tags

, , ,

Price:

$2,297.99

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
208 VAC 4992 VA 72.01in 2.20in 2.01in 18.14lb
Voltage 208 VAC
Amp/H 4992 VA
Length 72.01in
Width 2.20in
Height 2.01in
Weight 18.14lb

APC NetShelter โ€” Switched Metered-by-Outlet Rack PDU (AP8641)

This is the Brand New Version.

SKU: PDU-APC-AP8641 ย |
Type: 0U vertical, Metered-by-Outlet (2G) with Switching rack PDU for 200/208/230ย V single-phase racks.
Delivers up to 5.0ย kW with outlet-level metering (amps/volts/kW/kWh) and remote outlet on/off control; locking
NEMAย L6-30P input, 9.84ย ft (3.00ย m) cord.

  • Outlet mix: 21ย ร—ย IECย C13 + 3ย ร—ย IECย C19 (totalย 24) for mixed server/network loads.
  • Input: 200/208/230ย V single-phase via L6-30P; 30ย A max (24ย A line-rated); 50/60ย Hz.
  • Metered-by-outlet accuracy: Outlet-level energy with typical ยฑ3% metering accuracy; thresholds/alarms help prevent overloads.
  • Switching control: Per-outlet on/off, sequencing, and remote reboot via Web/SNMP/SSH/CLI; EcoStruxure IT compatible.
  • Zero-U vertical: Preserves rack U-space; toolless NetShelter mounting hardware included.

Technical Specifications โ€” AP8641
Parameter Detail
PDU Type NetShelter 2G โ€” Metered-by-Outlet with Switching; Zero-U vertical (0U)
Input 200/208/230ย VAC; NEMAย L6-30P; cord length 9.84ย ft (3.00ย m); 1 power cord
Line Rated / Max Input Current 24ย A line-rated ย |ย  30ย A input limit
Output Voltage 200ย V / 208ย V
Outlets 21ย ร—ย IECย 60320ย C13 ย |ย  3ย ร—ย IECย 60320ย C19 (totalย 24)
Load Capacity 4,992ย VA (nominal 5.0ย kW)
Frequency 50/60ย Hz
Dimensions (Hร—Wร—D) 72.01 ร— 2.20 ร— 2.01ย in (1829 ร— 56 ร— 51ย mm)
Net / Ship Weight 18.14ย lb (8.23ย kg) ย |ย  ~23.15ย lb (10.5ย kg) packaged
Included Hardware CAN port terminator; toolless rack mounting brackets; serial configuration cable; installation & safety guides
Certifications UL/cUL; PSE; VCCI Classย A
Standards FCC Partย 15 Classย A; ICES-003
Environment Operating: 23โ€“113ย ยฐF (โˆ’5โ€“45ย ยฐC), 5โ€“95% RH; Altitude 0โ€“10,000ย ft
Storage: โˆ’13โ€“149ย ยฐF (โˆ’25โ€“65ย ยฐC), 5โ€“95% RH; Altitude 0โ€“50,000ย ft
Warranty (mfr.) 2-year repair or replace

Notes & Replacement

AP8641 is a current NetShelter 2G model with outlet-level metering and switching. For a TAA-compliant variant,
see AP8641US (electrical/mechanical specs are the same). If you donโ€™t need per-outlet metering/switching,
consider the AP8841 (0U, Meteredย 2G).

Product Options โ€” Tested vs. Refurbished PDUs
Option Description Warranty
Tested Outlet metering & switching verified; all C13/C19 outlets load-checked; cord/plug inspected; LCD/alarms confirmed. 90โ€‘Day
Refurbished Cleaned and serviced; cosmetic touch-ups as needed; full outlet, metering, and switching re-test after service. 1โ€‘Year

  • Use case: High-density 208ย V racks needing per-outlet control and energy visibility.
  • Visibility: Metered-by-outlet data (ยฑ3% accuracy) โ†’ balance loads and plan capacity.
  • Space: Zero-U vertical mounting preserves 19″ rack units for gear.

Compatibility & Variants Matrix
Model Input / Plug Outlets Notes
AP8641 200/208/230ย Vย 1ฯ† / NEMAย L6-30P (9.84ย ft) 21ย ร—ย C13; 3ย ร—ย C19 0U, 5.0ย kW, Metered-by-Outlet with Switching.
AP8641US 200/208ย Vย 1ฯ† / NEMAย L6-30P (9.84ย ft) 21ย ร—ย C13; 3ย ร—ย C19 TAA variant with same electrical/mechanical specs.
AP8841 200/208ย Vย 1ฯ† / NEMAย L6-30P 36ย ร—ย C13; 6ย ร—ย C19 0U, Meteredย 2G (no per-outlet metering/switching).

Why buy from Gruber
  • Brand-new inventory โ€” Ships complete with OEM accessories and mounting hardware.
  • Exact fit hardware โ€” Includes the correct Zero-U brackets for NetShelter-style enclosures.
  • Fleet-ready โ€” Mixed C13/C19 set supports a broad range of 200/208ย V IT gear.
