Manufacturer
OEM Part Number
GPS Part Number
Categories
$20.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 125 | 20 A | 1.6" | 0.7" | 1.4" | 0.07 lb |
| Voltage | 125 |
| Amp/H | 20 A |
| Length | 1.6" |
| Width | 0.7" |
| Height | 1.4" |
| Weight | 0.07 lb |

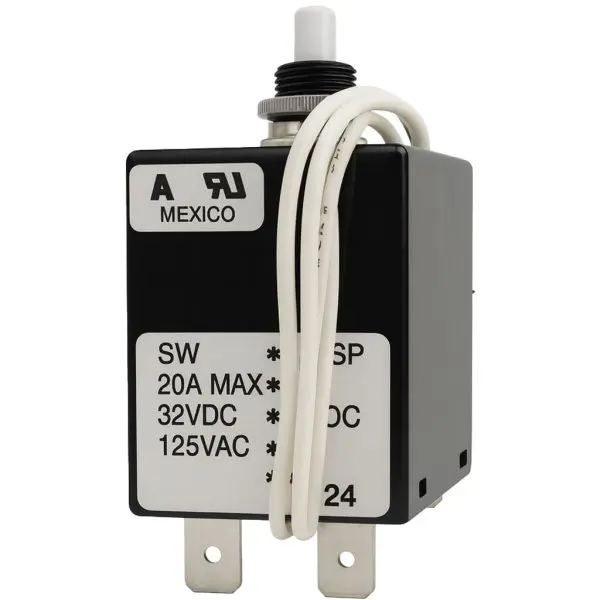

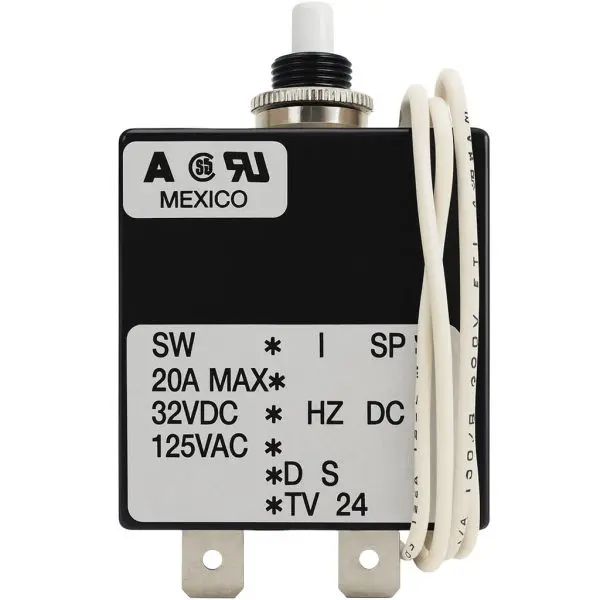

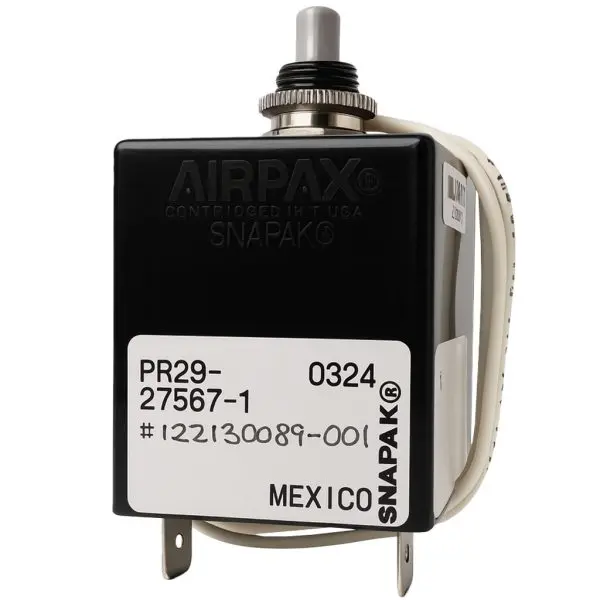

Genuine Sensata/Airpax SNAPAK® PR29 hydraulic-magnetic circuit protector — compact snap-acting design that combines precise, temperature-stable protection with panel power switching.
| Parameter | Detail |
|---|---|
| Manufacturer | Sensata / Airpax |
| Series / family | SNAPAK® PR — model PR29 |
| Poles | 2 poles (DPST), ganged |
| Current rating (In) | 20 A |
| Voltage ratings | 250 V AC (50/60 Hz) • 65 V DC |
| Delay / curve | Hydraulic-magnetic inverse-time (per unit code) |
| Trip technology | Hydraulic-magnetic (temperature-stable; trip-free) |

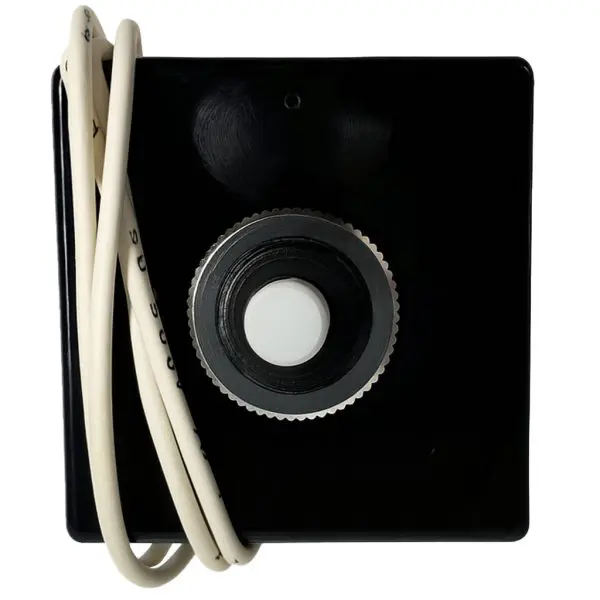

| Actuator | Push-to-Reset button |
| Terminations | Quick-connect blades (0.250 in); optional screw terminals |
| Mounting | SNAPAK® front snap-in panel mount (1/2-32 threaded bushing versions available) |
| Dimensions (H × W × D) | 34.93 mm × 17.27 mm × 40.25 mm (1.4 in × 0.7 in × 1.6 in) |
| Weight | ≈ 0.10 lb |
| Operating temperature | −40 °C to +85 °C |
| Standards / approvals | UL 1077 (supplementary protector), CSA C22.2 No. 235, EN 60934 (TÜV) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90-Day |
