$260.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 50 A | 4.1" | 9" | 11" | 22 lbs |
| Voltage | 600 V |
| Amp/H | 50 A |
| Length | 4.1" |
| Width | 9" |
| Height | 11" |
| Weight | 22 lbs |

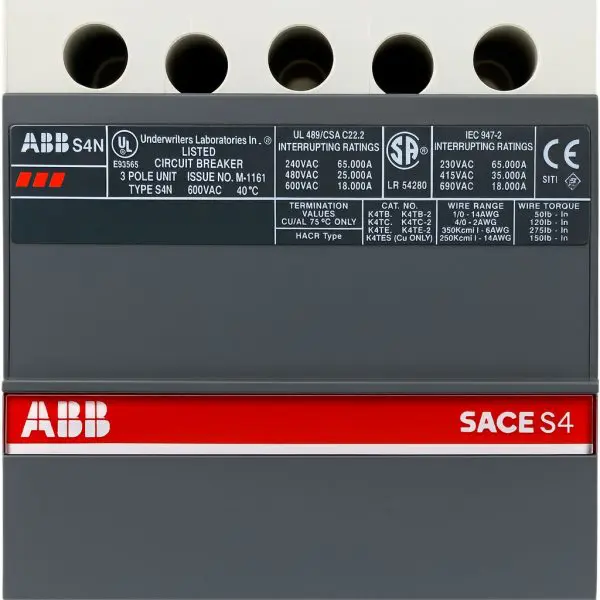

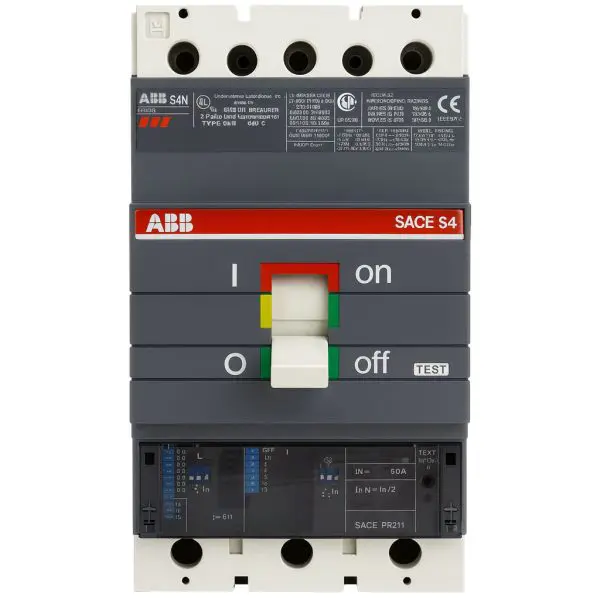

Genuine ABB SACE Isomax S4N molded-case circuit breaker professionally removed from service, then cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | S4N — SACE Isomax S4 frame, 3-pole |
| Part ref. | M-1161 (seller/catalog reference) |
| Rated current (In) | 50 A (shown in PR211 window on the unit) |
| Rated operational voltage (Ue) | Up to 600 VAC / 500 VDC (S4N family nameplate) |
| Interrupting capacity (AIC) | S4N typical: ≈25 kA @ 480 VAC |
| Trip unit | PR211 electronic — LI (Long-time & Instantaneous) (visible on front) |
| Poles | 3 |

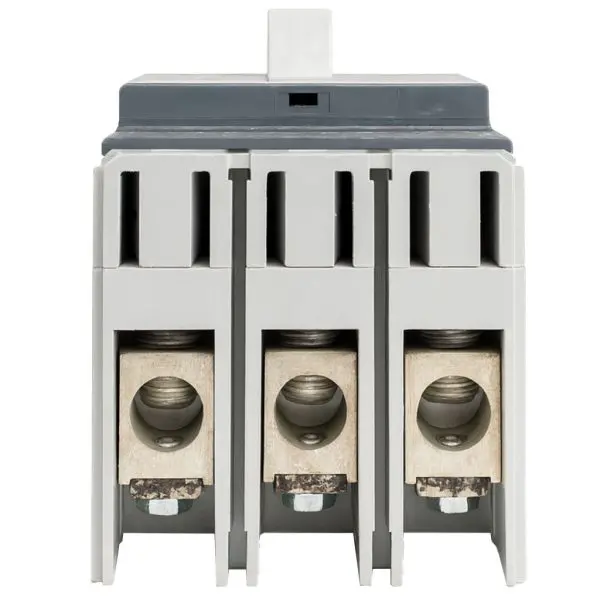

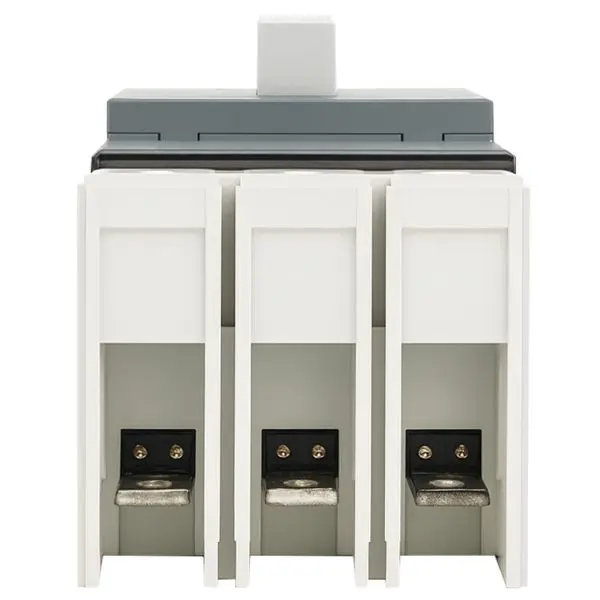

| Terminations | Bolt-on; load-side lugs |
| Mounting | Fixed (panel/bus), MCCB |
| Dimensions (H × W × D) | 268 mm × 210 mm × 103.5 mm (10.55 in × 8.27 in × 4.07 in) |
| Weight | ≈ 9–10 kg (22-lb) |
| Compliance | IEC 60947-2; UL 489 (MCCB) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
