Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
$548.92
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 150 A | 4.1" | 6" | 7" | 11 lbs |
| Voltage | 600 V |
| Amp/H | 150 A |
| Length | 4.1" |
| Width | 6" |
| Height | 7" |
| Weight | 11 lbs |

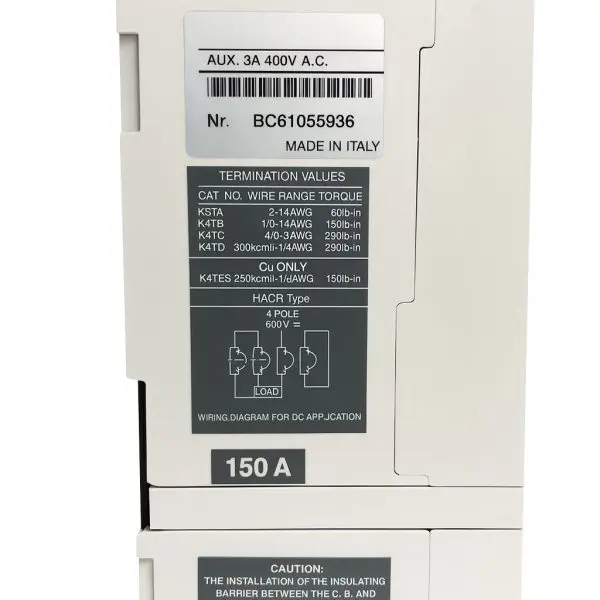

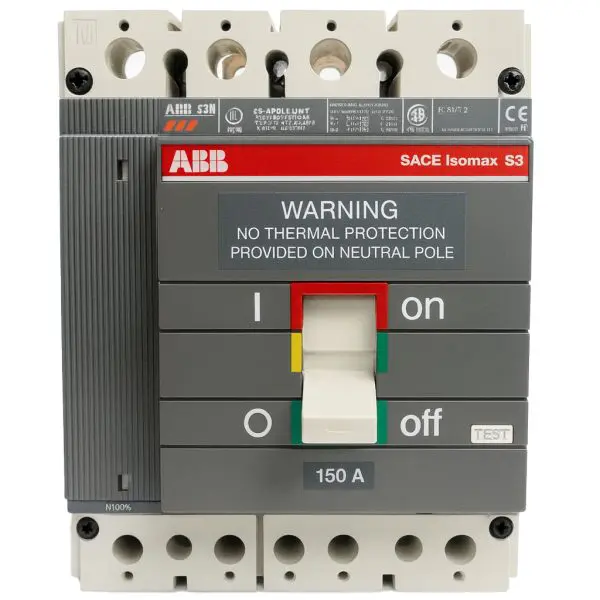

Genuine ABB SACE Isomax S3 molded-case circuit breaker professionally removed from service, then cleaned, inspected, and shop-tested.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model / family | S3N — SACE Isomax S3 frame, 4-pole |
| Rated current (In) | 150 A (common DW-7366 build) |
| Rated operational voltage (Ue) | 600 VAC / 500 VDC |
| Interrupting capacity (AIC) | 25 kA @ 480 VAC; 35 kA @ 415 VAC |
| Trip unit | Thermal-magnetic (LI: long-time & instantaneous), non-interchangeable |
| Poles | 4 |

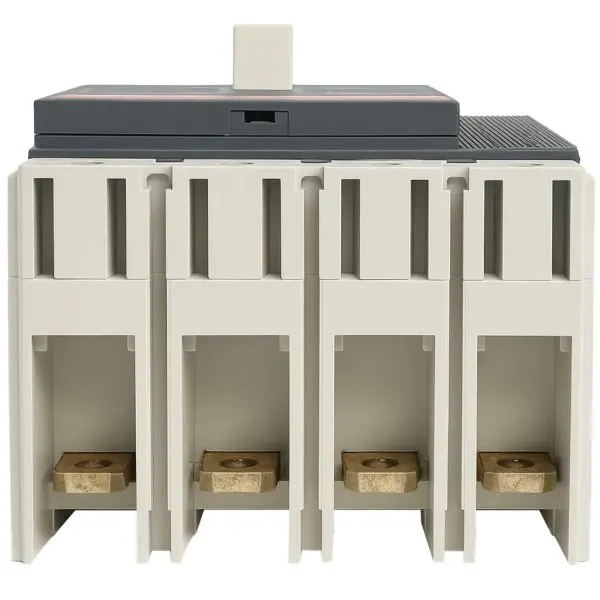

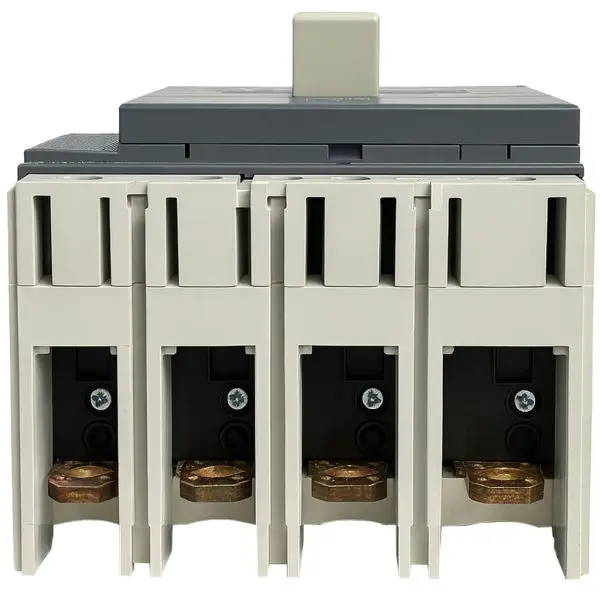

| Terminations | Bolt-on; fixed front terminals; reverse-feed suitable |
| Mounting | Fixed (panel/bus), MCCB |
| Dimensions (H × W × D) | 170 mm × 140 mm × 103.5 mm (6.69 in × 5.51 in × 4.07 in) |
| Weight | ≈ 4.8 kg (~10.6 lb) — fixed 4-pole |
| Compliance | IEC 60947-2; UL 489 (MCCB) |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
