$343.26
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 690 V | N/A | 26 A | 4" | 3" | 4" | 2 lbs |
| Voltage | 690 V |
| WPC | N/A |
| Amp/H | 26 A |
| Length | 4" |
| Width | 3" |
| Height | 4" |
| Weight | 2 lbs |

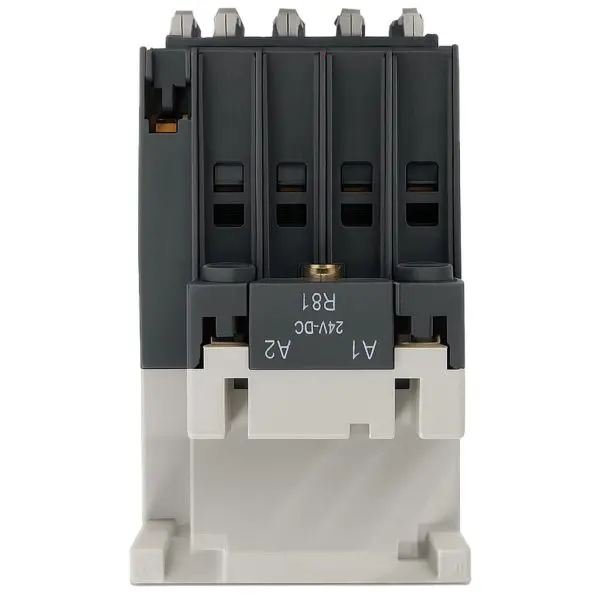

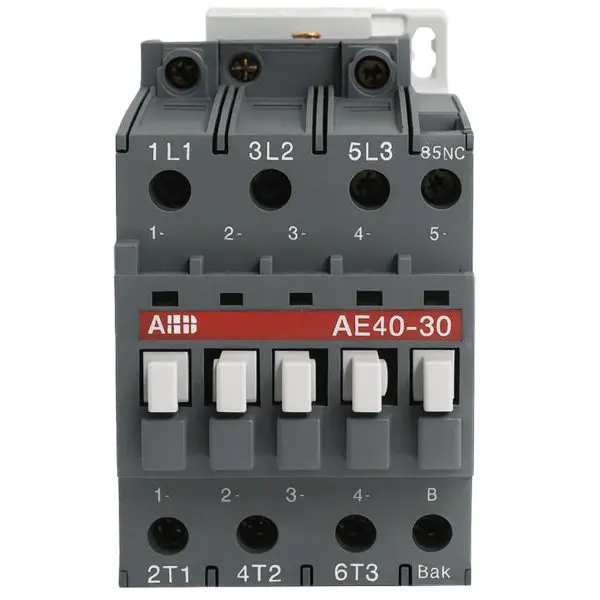

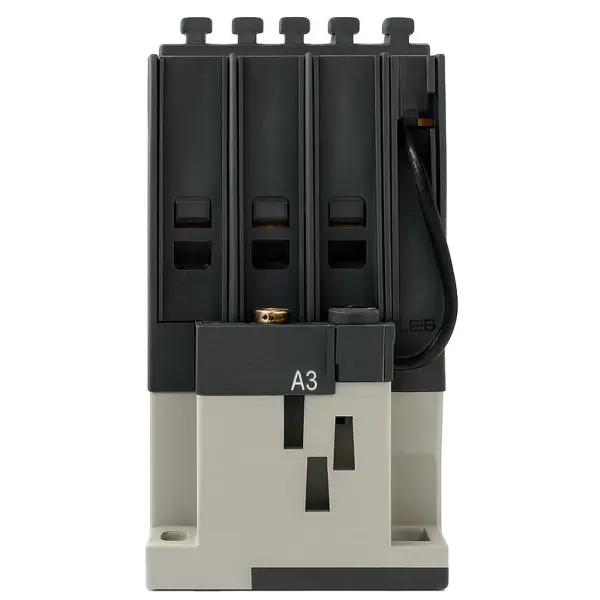

Genuine ABB A-Line contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AE40-30 (3 NO main; suffix: “-00” no aux, “-10” 1 NO, “-01” 1 NC, “-11” 1 NO + 1 NC) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | 37 A (AC-3) @ 380/400/415 V; 40 A (AC-3) @ 220/230/240 V (55 °C) |
| Rated operational power (Pe) | 18.5 kW @ 380/400/415 V; 22 kW @ 440–690 V; 11 kW @ 220/230/240 V (AC-3) |
| Rated operational voltage (Ue) | Up to 690 V AC (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | DC operated, double-winding coil (built-in suppression); common variant 24 V DC; other voltages available |
| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (see above) |
| Terminations | Screw terminals (M5), finger-safe IP20 |
| Mounting | 35 mm DIN-rail (TH35-7.5/15) or panel mount |
| Dimensions (H × W × D) | 90 mm × 54 mm × 108.3 mm (3.54 in × 2.13 in × 4.26 in) |
| Weight | 0.71 kg (1.57 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
