$14.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 12 V | .76 A | 3.15" | 1.5" | 3.15" | 1 lb |
| Voltage | 12 V |
| Amp/H | .76 A |
| Length | 3.15" |
| Width | 1.5" |
| Height | 3.15" |
| Weight | 1 lb |

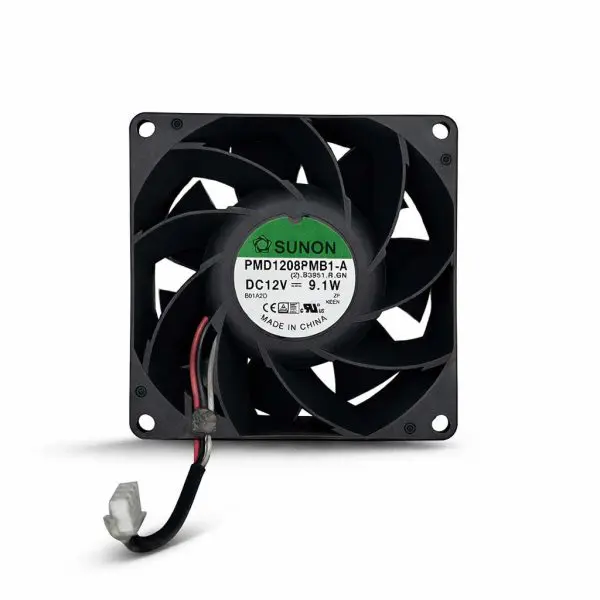

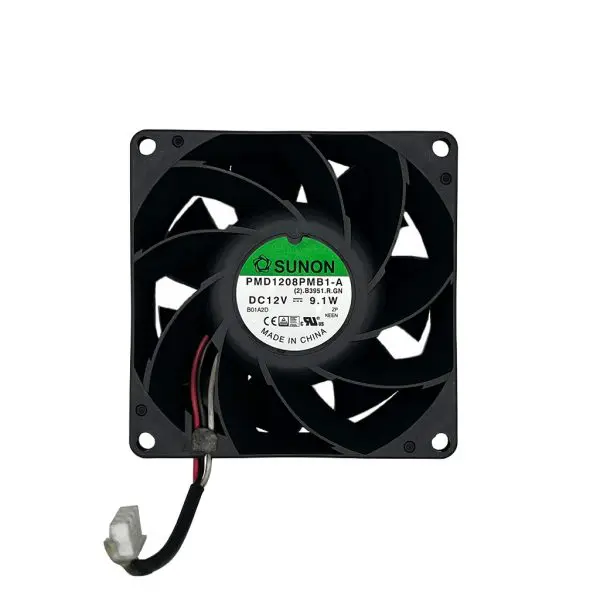

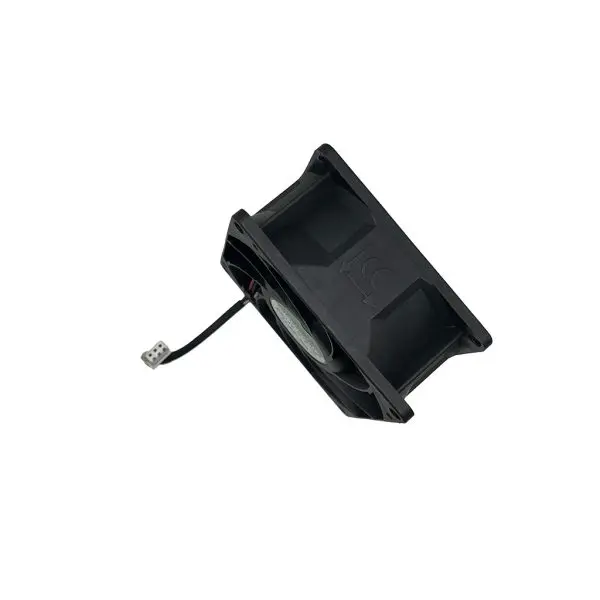

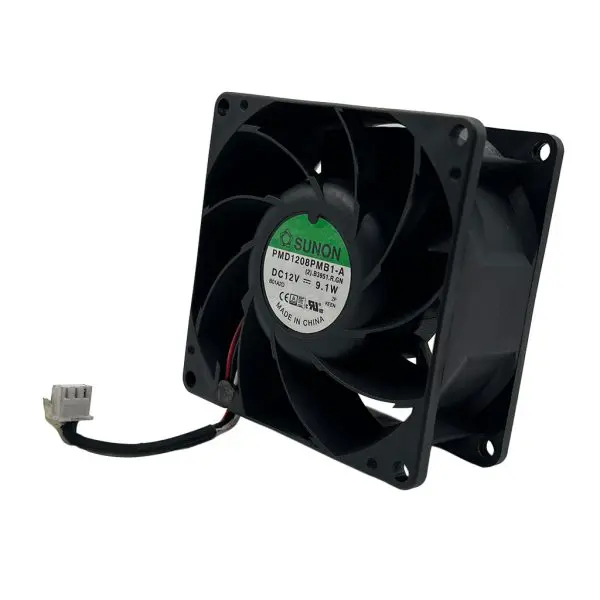

SUNON MagLev-series UPS cooling fan used in compact and mid-frame power systems. Provides directed airflow for thermal regulation of power components in confined chassis environments. Direct-fit service replacement with common 80 mm UPS fan mounting pattern.
Designed for continuous duty, the 12 VDC axial motor supports reliable operation in data-center and industrial UPS applications.
Typical use in small to mid-frame UPS models. Factory-style wiring and footprint support fast field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new SUNON fan; unopened and covered by the manufacturer’s warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, bearings evaluated for drag; cleaned and lightly lubricated. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| PMD1208PMB1-A | Approx. 80 × 80 × 38 mm (verify depth) | 12 VDC | Axial fan (high-reliability duty) | 3-wire lead or plug (tach/power; verify harness) | UPS chassis cooling |
| Part # | Compatible Models | Notes |
| PMD1208PMB1-A | Various UPS models using 80 mm, 12 VDC, 3-wire fans | Verify connector style, lead length, and airflow direction vs. OEM part. |
