$44.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 220-230 V | N/A | 4.72" | 1.50" | 4.72" | 1.30 lbs |
| Voltage | 220-230 V |
| Amp/H | N/A |
| Length | 4.72" |
| Width | 1.50" |
| Height | 4.72" |
| Weight | 1.30 lbs |

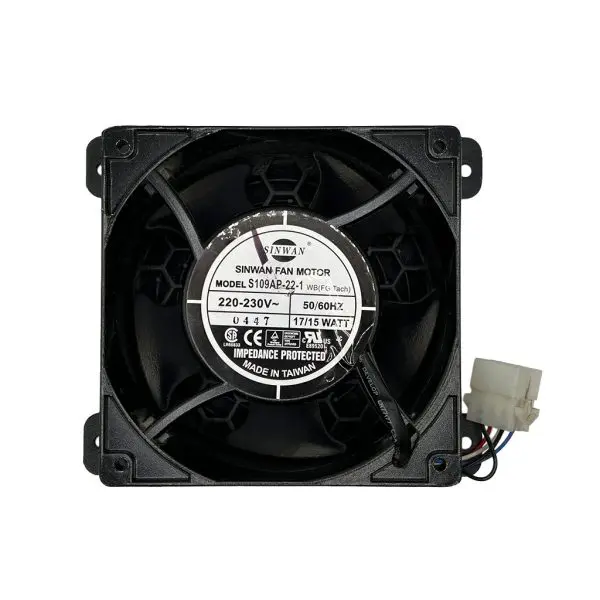

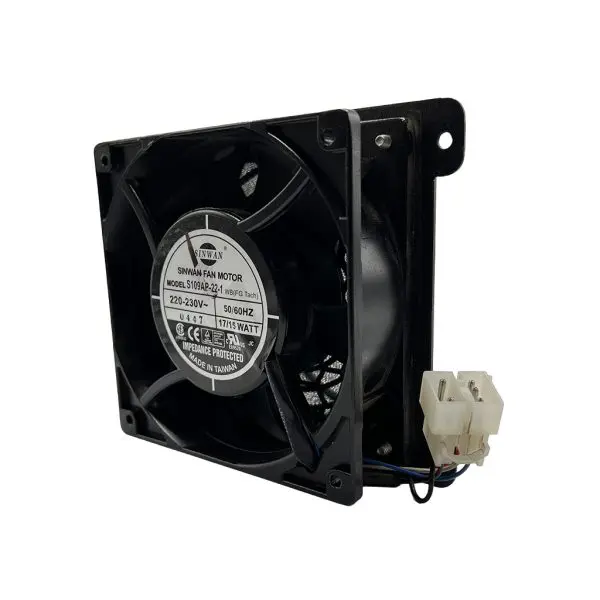

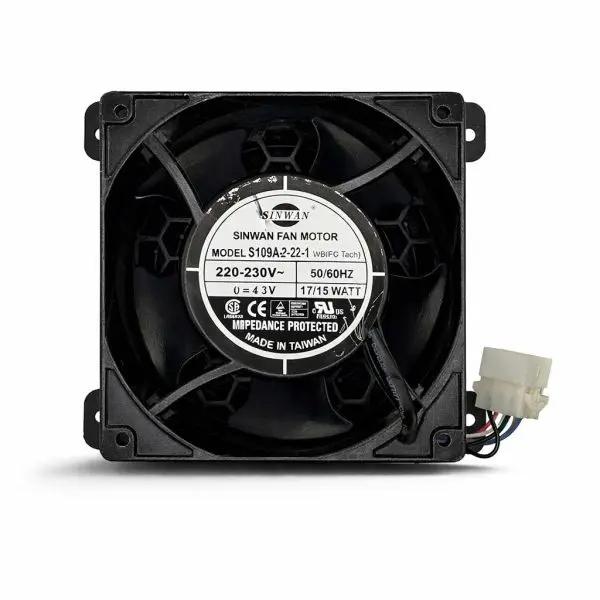

SINWAN UPS cooling fan for power-electronics bays. Provides reliable airflow across rectifiers, IGBTs, and heat-sink assemblies. Drop-in service replacement using a common 120 mm square-frame mounting pattern.
“WB” series ball-bearing construction supports continuous duty in data-center and industrial environments; integrated FG tach lead supports RPM feedback where supported by the UPS.
Typical use in mid-frame UPS systems. Factory-style wiring and footprint support fast field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new SINWAN fan; unopened and covered by the manufacturer’s warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, bearing noise checked; cleaned and leads inspected (FG tach verified where applicable). |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |

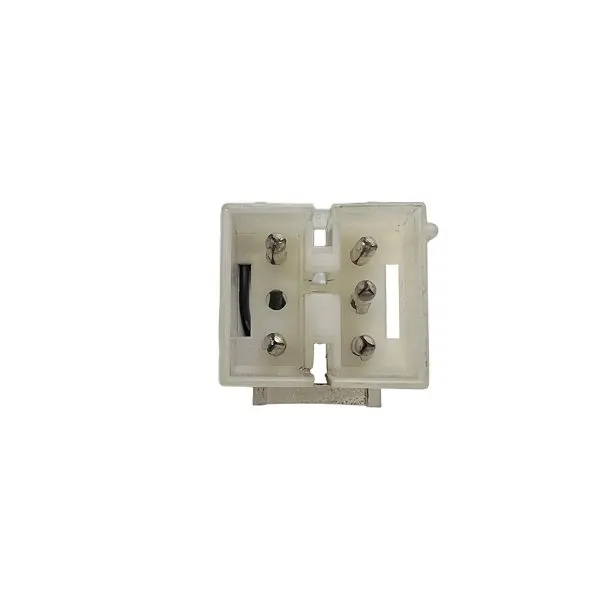

| S109AP-22-1 WB (FG Tach) | Approx. 120 × 120 × 38 mm (verify nameplate) | AC 115 V or 230 V (verify variant) | Axial AC fan, ball-bearing | 2-wire or 3-wire with FG tach (verify harness) | UPS chassis / inverter bay cooling |
| Part # | Compatible Models | Notes |
| S109AP-22-1 WB (FG Tach) | UPS systems using 120 mm AC fans with tach feedback | Verify voltage, airflow direction, and tach signal pinout vs. OEM part. |
