$44.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 110/120 VAC | N/A | 4.72" | 1.50" | 4.72" | 0.46 lbs |
| Voltage | 110/120 VAC |
| Amp/H | N/A |
| Length | 4.72" |
| Width | 1.50" |
| Height | 4.72" |
| Weight | 0.46 lbs |

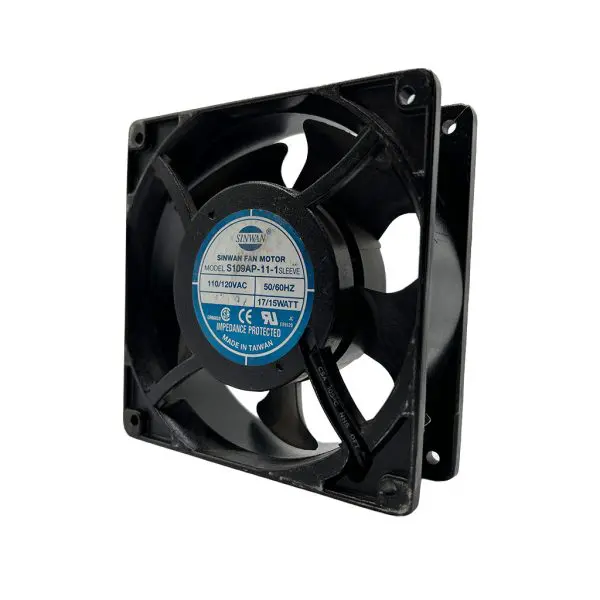

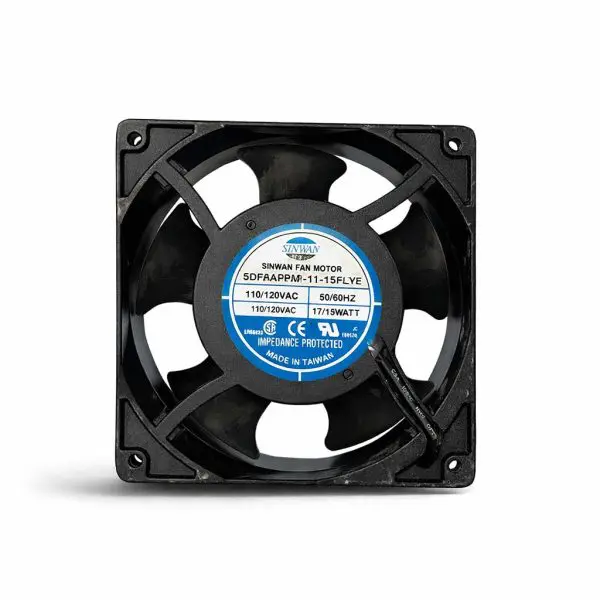

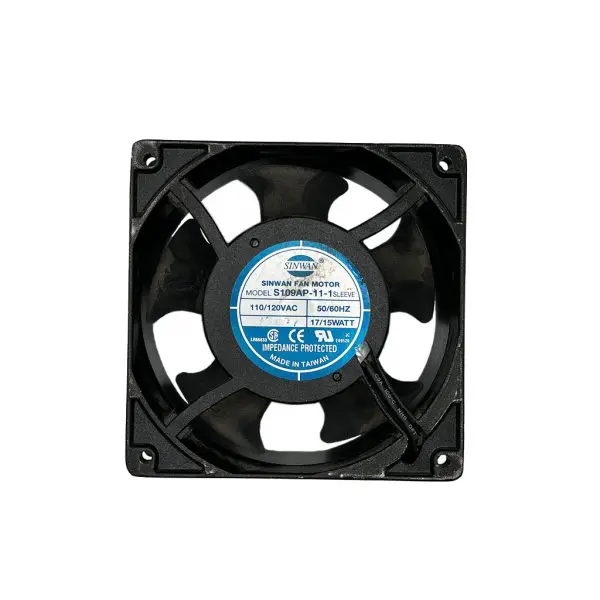

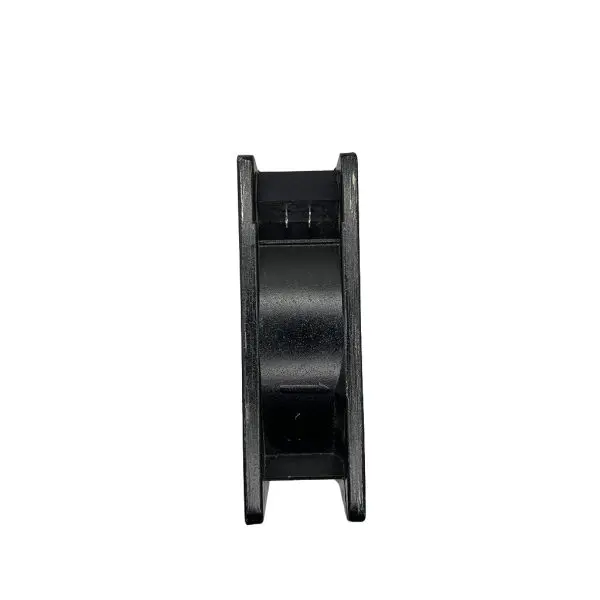

SINWAN UPS cooling fan for power-electronics bays. Provides reliable airflow across rectifiers, IGBTs, and heat-sink assemblies. Drop-in service replacement using a common 120 mm square-frame mounting pattern.
This variant uses a sleeve-bearing design for quiet operation in controlled environments; suitable for continuous duty when mounted per orientation guidelines.
Typical use in mid-frame UPS systems. Factory-style wiring and footprint support fast field replacement.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new SINWAN fan; unopened and covered by the manufacturer’s warranty (when available). |
1-Year
|
| Tested | Operationally verified fan removed from a functioning UPS; rotation confirmed, noise/drag checked; cleaned and leads inspected. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Bearing / Connector | Application |
| S109AP-11-1 (Sleeve) | Approx. 120 × 120 × 38 mm (verify nameplate) | AC 115 V or 230 V (verify variant) | Axial AC fan | Sleeve bearing; 2-wire leads or faston terminals (verify harness) | UPS chassis / inverter bay cooling |
| Part # | Compatible Models | Notes |
| S109AP-11-1 (Sleeve) | UPS systems using 120 mm AC fans (115/230 VAC) | Verify voltage, airflow direction, and lead length vs. OEM part; observe sleeve-bearing orientation. |
