$19.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 4.7" | 4.7" | 1.5" | 0.4 lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 4.7" |
| Width | 4.7" |
| Height | 1.5" |
| Weight | 0.4 lbs |

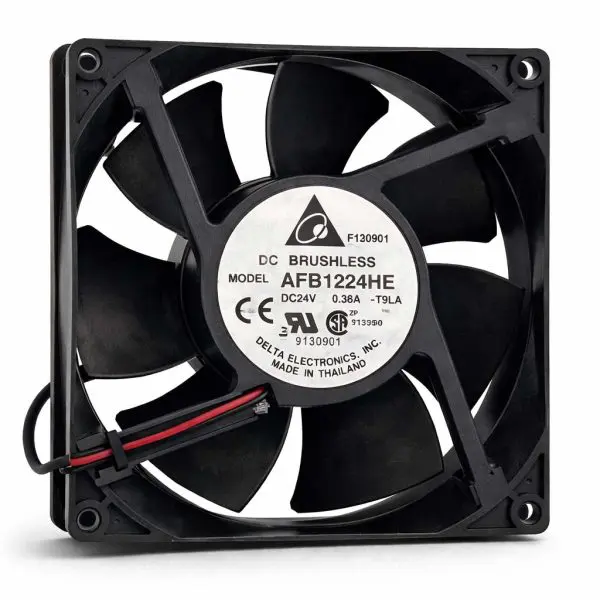

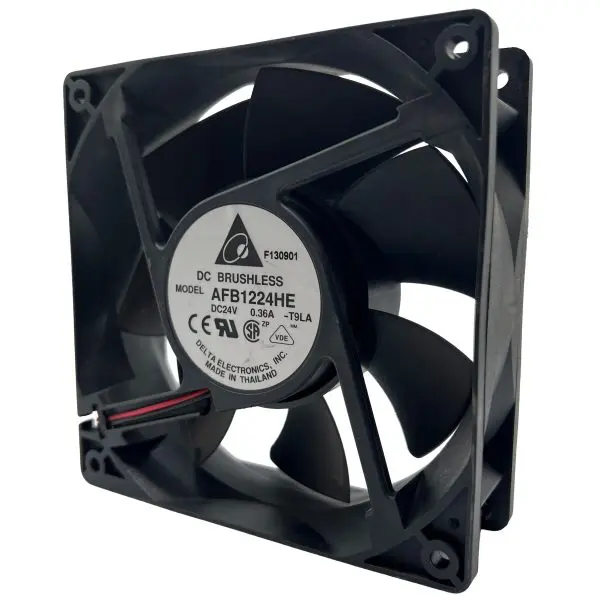

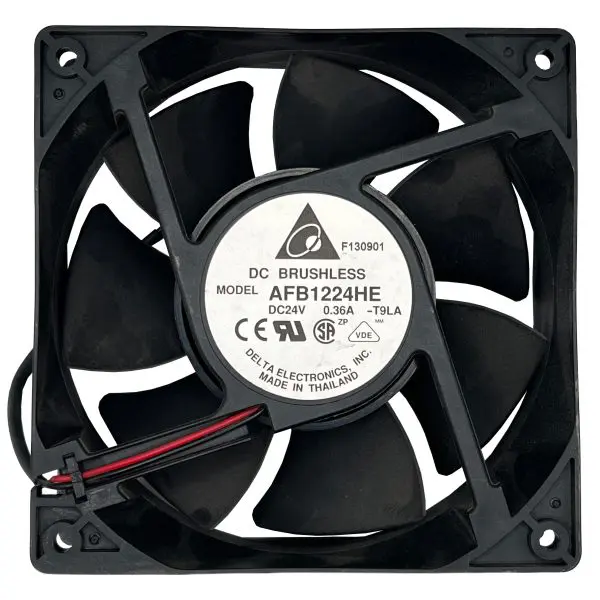

OEM-style axial cooling fan used in UPS inverter/rectifier bays and control compartments. The Delta AFB1224HE-T9LA delivers high static-pressure airflow for reliable thermal regulation in dense electronics.
Removed from a functioning UPS, cleaned, inspected, and bench-tested for smooth rotation, stable RPM, and proper current draw. Please verify voltage, connector style, and airflow direction against your UPS’s original fan/BOM before ordering.
Direct-fit square-frame form factor; ships ready to install.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Factory-new Delta AFB series fan; unopened and covered by our standard replacement warranty. |
1-Year
|
| Tested | Operationally verified pull from a functioning UPS; rotation/current checked; bearings and leads/connector inspected and cleaned. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow Class | Connector | Application |

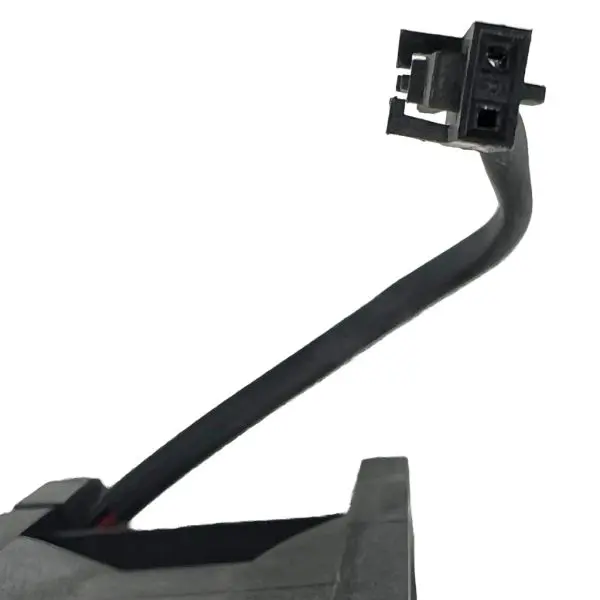

| AFB1224HE-T9LA | 120×120×25 mm — verify vs. OEM | 24 VDC — per label | High-speed axial (high static pressure) | 2- or 3-wire lead, OEM-style plug — verify pinout | UPS inverter/rectifier bay and enclosure cooling |
| Part # | Compatible Models | Notes |
| AFB1224HE-T9LA | UPS platforms specifying Delta AFB1224HE-T9LA (120 mm, 24 VDC) | Verify airflow direction, mounting pattern, and connector vs. OEM fan/BOM. |
